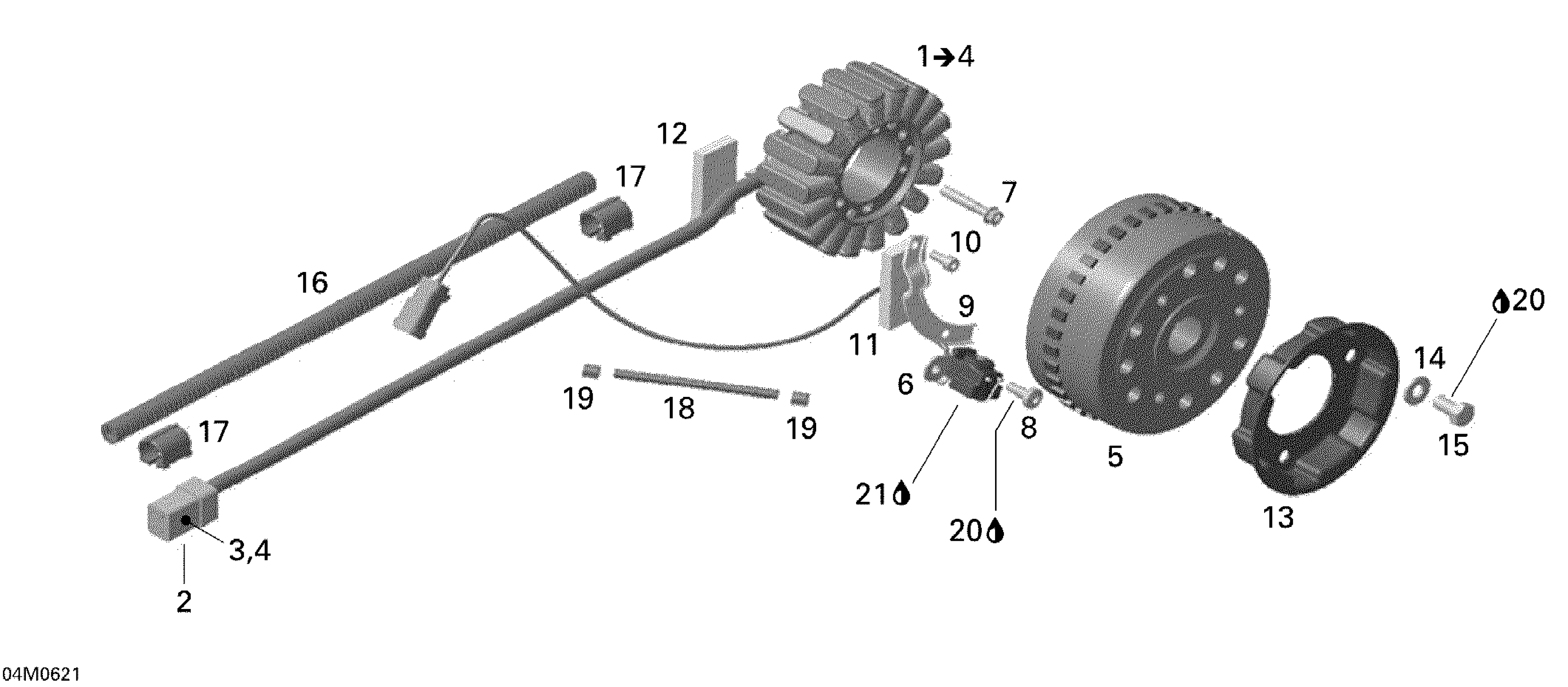

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 03- Magneto Diagram

#

Description
Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

Female Terminal Housing, 4 Circuits

278001473

$26.99

3

Male Terminal

515175568

$9.12

4

Female Lock, 4 Circuits

278001474

$3.49

5

Flywheel

420866042

Unavailable

6

Pick-Up

410922951

$114.99

7

Torx Flange Screw M6 X 35

420440274

$1.01

8

Torx Screw M6 X 16

420640324

$2.11

9

RETAINING PLATE - Call your local BRP dealership

420851870

Unavailable

10

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

420640541

Unavailable

11

Rubber Stopper

420960925

$6.39

12

RUBBER STOPPER - Call your local BRP dealership

420960920

Unavailable

13

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

14

Flat Washer

420827405

$1.69

15

Hex. Screw M8 X 12

420940161

Unavailable

16

TUBE - Call your local BRP dealership

420660912

Unavailable

17

CLIP - Call your local BRP dealership

420960892

Unavailable

18

Tube 390MM

420460042

$8.57

19

CLIP - Call your local BRP dealership

420960894

Unavailable

20

Loctite 243, 10 ml

293800060

$21.49

21

Loctite 5910, 300 ml

293800081

$57.99
