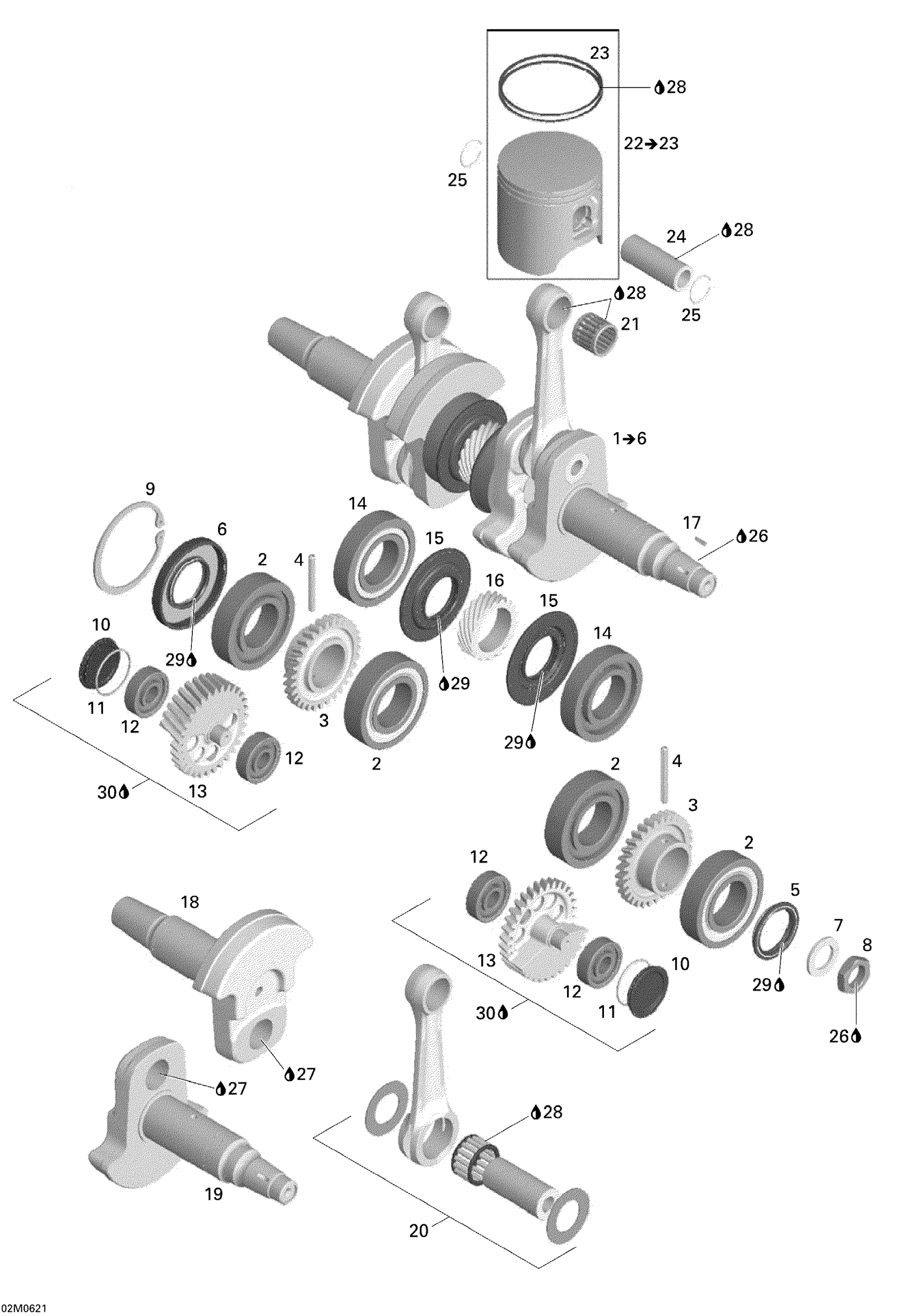

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 6

420889216

Unavailable

2

Ball Bearing | With drive pin

420832602

$104.99

3

GEAR BALANCE, 31 TEETH - Call your local BRP dealership

420834571

Unavailable

4

NEEDLE PIN - Call your local BRP dealership

420929430

Unavailable

5

OIL SEAL - Call your local BRP dealership

420430540

Unavailable

6

OIL SEAL - Call your local BRP dealership

420931287

Unavailable

7

Lock Washer, 22 mm

420945759

$1.90

8

Hex. Nut, M22 X 1.5

420842239

$17.53

9

CIRCLIP - Call your local BRP dealership

420845700

Unavailable

10

COVER BEARING - Call your local BRP dealership

420812176

Unavailable

11

O-RING - Call your local BRP dealership

420950410

Unavailable

12

BALL BEARING - Call your local BRP dealership

420232292

Unavailable

13

BALANCE GEAR, 31 TEETH - Call your local BRP dealership

420834583

Unavailable

14

BALL BEARING - Call your local BRP dealership

420832582

Unavailable

15

Oil Seal

420931910

$37.99

16

Central Gear, 17 Teeth

420834560

Unavailable

17

Woodruff Key

420246015

$3.17

18

Crankshaft, PTO Side

420819147

Unavailable

19

Crankshaft, Mag Side

420819177

Unavailable

20

Rod Repair Kit, PTO Side

420889214

Unavailable

20

Rod Repair Kit, Mag Side

420889213

Unavailable

21

NEEDLE BEARING - Call your local BRP dealership

420832680

Unavailable

22

Piston Ass'y With Rings | Includes 22 to 23

420889233

$239.49

23

SEMI-TRAPEZ RING - Call your local BRP dealership

420815370

Unavailable

24

GUDGEON PIN - Call your local BRP dealership

420916440

Unavailable

25

CIRCLIP - Call your local BRP dealership

420845611

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Sealant Loctite 648

219703000

$45.99

77

Not Available As Spare Part - Friction Washer

Unavailable

29

Petamo Grease, GHY133N, 400 g

420899271

$67.99

30

Isoflex Grease

420898351

$129.99
