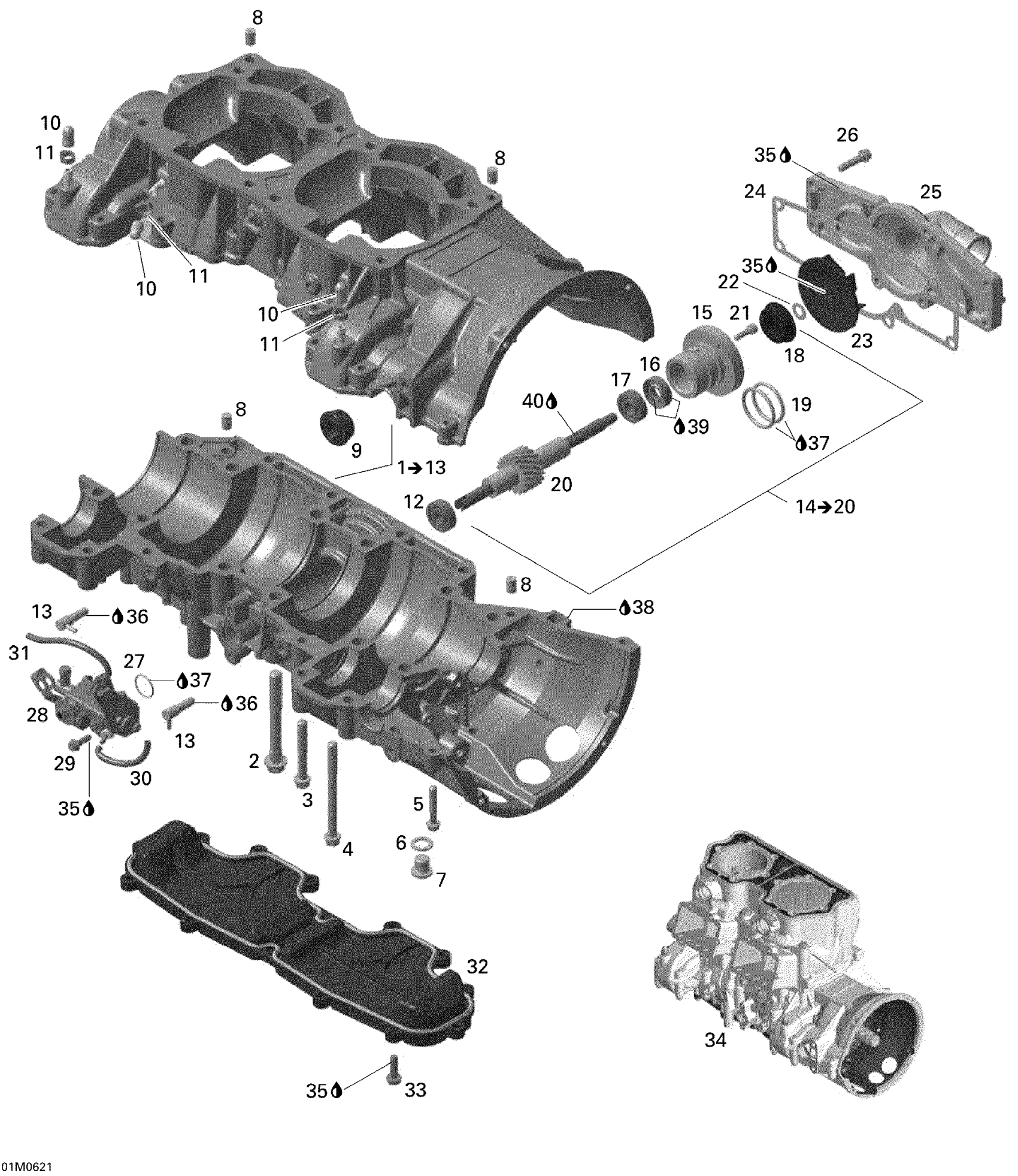

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 13

420889226

Unavailable

2

Torx Flange Screw M10 X 85

420440442

Unavailable

3

Torx Flange Screw M10 X 55

420440392

Unavailable

4

Torx Flange Screw M8 X 90

420440412

$7.41

5

Torx Flange Screw M6 X 35

420440274

$1.01

6

Copper Washer

420250640

$0.98

7

Plug Screw M12 x 1,5

420241701

$12.63

8

Center Pin 8 X 12

420632010

$4.01

9

Cable Grommet

420660890

$14.22

10

Cap

420960770

$4.12

11

Clamp

420853653

$7.41

12

Ball Bearing

420232100

$20.99

13

Check Valve

420956511

$35.99

14

WATER PUMP/OIL PUMP ASS'Y - Call your local BRP dealership | Includes 14 to 19

420837671

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420230195

$15.36

17

Ball Bearing

420232100

$20.99

18

Rotary Seal

420650371

$43.49

19

O-Ring

420950890

$4.44

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Allen Screw M5 x 16

420840514

$1.90

22

Thrust Washer

420227945

$4.01

23

Water Impeller

420922805

$37.99

24

GASKET - Call your local BRP dealership

420630620

Unavailable

25

WATER PUMP HOUSING - Call your local BRP dealership

420922920

Unavailable

26

Torx Flange Screw M6 X 25

420440234

$3.06

27

O-Ring

293300041

$8.57

28

OIL PUMP ASS'Y - Call your local BRP dealership

420888772

Unavailable

29

Hex. Tapping Screw M5 X 20

420841555

$1.69

30

Oil Hose 1500Mm Long

219704404

$17.26

31

Oil Hose 1500Mm Long

219704404

$17.26

32

Waterduct Cover, Heat Exchanger

420812342

Unavailable

33

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

34

Short Block 995 SDI

420099502

Unavailable

34

REBUILT - CYLINDER - SHORT BLOCK 995SDI - Call your local BRP dealership

421000637

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Sealant Loctite 648

219703000

$45.99

37

Dow Corning 111, 150 g

413707000

$59.99

38

Loctite 5910, 300 ml

293800081

$57.99

39

Petamo Grease, GHY133N, 400 g

420899271

$67.99

40

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
