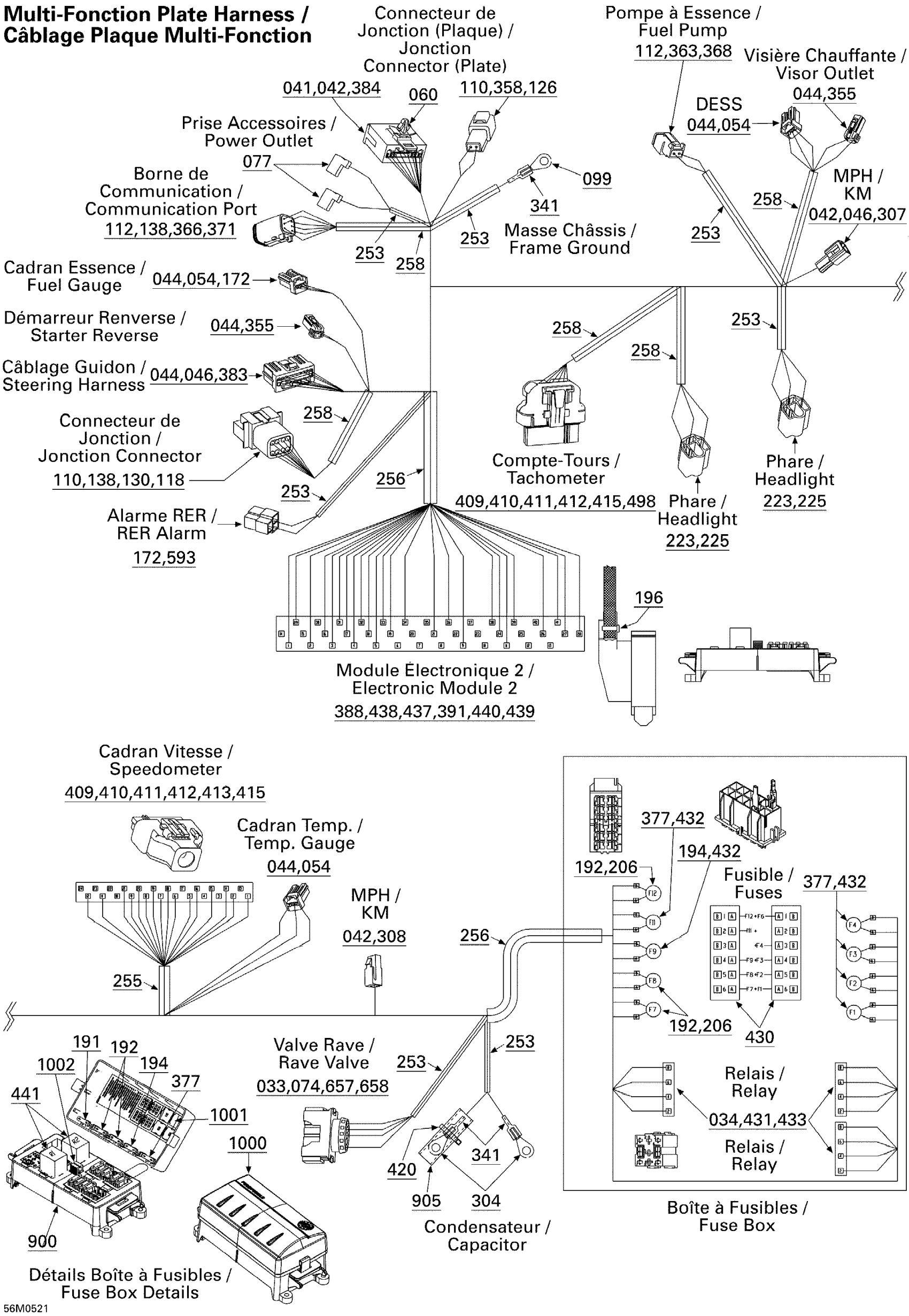

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 10- Multi Function Plate Harness Diagram

#

Description
Price

1

Multi-function Plate Harness Ass'y | Includes 001 to 1002

515176237

Unavailable

34

Female Terminal

409010100

$5.61

41

Male Terminal

515175232

$1.58

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

60

Housing Support

515175283

$9.19

74

Plug

409013700

$4.55

77

Female Terminal

409010300

$4.39

99

Open Barrel

278000992

$2.21

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

118

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

126

Male Lock, 2 Circuits

409207500

$3.19

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

191

Fuse, 30 Amperes

410917200

$3.28

192

Fuse, 20 Amperes

409003900

$3.28

194

Fuse, 10 Amperes | North America

278001197

$2.21

196

Tie Wrap 142 mm

293750002

$1.25

206

Female Terminal

409004200

$4.55

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

258

Tubing 10 MM 1000MM Long

219704407

$2.79

304

Ring Terminal

515175504

$9.12

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

341

Tubing Shrink

515175608

Unavailable

355

Female Housing, 2 Circuits

515175658

$16.18

358

Male Terminal Housing, 2 Circuits

515175665

$9.29

363

Female Terminal Housing, 2 Circuits

515175670

$8.39

366

Male Housing, 6 Circuits

515175673

$15.49

368

Female Lock, 2 Circuits

515175675

$4.55

371

Male Wedge, 6 Circuits

515175678

$5.39

377

Fuse, 5 Amperes | CE

278000344

$3.28

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

384

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

430

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

431

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

432

FEMALE TERMINAL - Call your local BRP dealership

515175855

Unavailable

433

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

441

Relais *Relay This part replaces 410113604.

515177672

$46.49

498

Female Housing

710000399

$16.49

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

657

Male Housing, 5 Circuits

515176238

Unavailable

658

FEMALE TERMINAL - Call your local BRP dealership

515176239

Unavailable

900

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

1000

COVER - Call your local BRP dealership

515176066

Unavailable

1001

Fuse Decal

516002640

Unavailable

1002

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable
