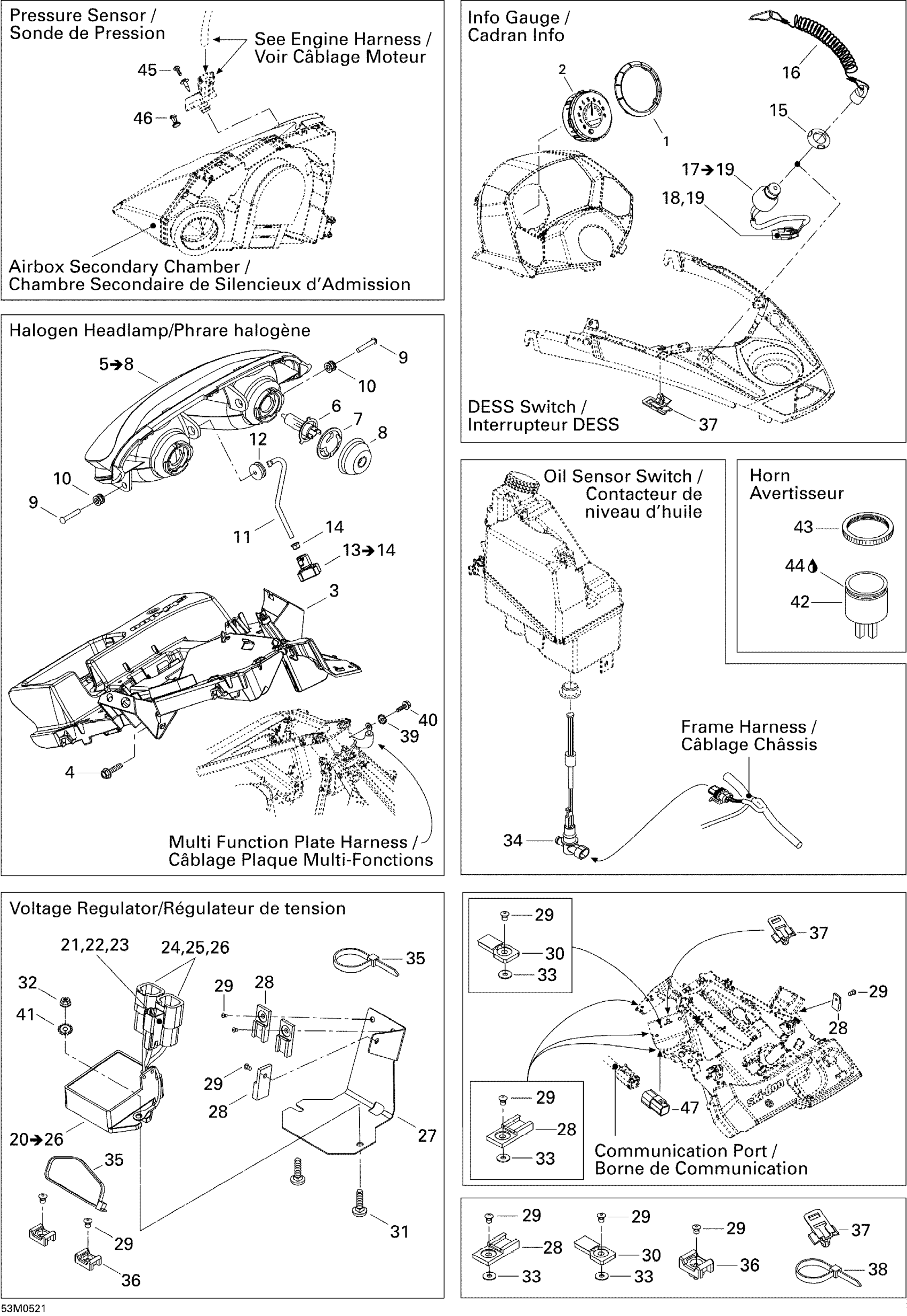

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 10- Electrical Accessories Diagram

#

Description
Price

1

Gauge Ring This part replaces 515176242.

515179005

$13.99

2

Info Gauge

515176226

Unavailable

3

MULTI FUNCTION PLATE - Call your local BRP dealership

515176104

Unavailable

4

Hex. Flange Screw M6 X 16

210261650

$1.67

5

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

6

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

7

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

8

COVER - Call your local BRP dealership

515175911

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Safety Nut (DESS Switch)

278002963

$3.28

16

DESS

515178284

$84.99

17

DESS Switch

515177249

$114.99

18

Male Terminal

515175232

$1.58

19

Male Housing, 3 Circuits

515175494

$16.18

20

Voltage Regulator | Includes 32 to 38

515176243

$359.99

21

Male Housing, 2 Circuits

409206900

$9.59

22

Male Terminal

278000631

$4.39

23

Male Lock, 2 Circuits

409207500

$3.19

24

Female Housing, 4 Circuits

278000635

$16.49

25

Male Terminal

515175568

$9.12

26

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

27

Housing Support

515176167

Unavailable

28

Clip

270000141

$11.49

29

Avdel Rivet 3/16"

293150037

$0.56

30

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

31

Carriage Bolt M6 X 25

207762544

$1.69

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Flat Washer

517225900

$0.18

34

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

35

Tie Wrap 368 mm

293750008

$1.04

36

Tie Rap Mount (screwable)

515176795

$5.39

37

Housing Support

515175283

$9.19

38

Tie-Rap 180 mm

414115200

$0.11

38

Tie Wrap 142 mm

293750002

$1.25

38

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

38

Tie-Rap 173 mm

293750009

$1.04

39

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

40

Hex. Flange Screw M6 X 12

210261250

$1.90

41

Lock Washer Serrated M6

250200041

$1.15

42

HORN - Call your local BRP dealership

515176035

Unavailable

43

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

Tuflock Phillips Plastic Screw

414745900

$1.69

46

CAP - Call your local BRP dealership

508000465

Unavailable

47

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable
