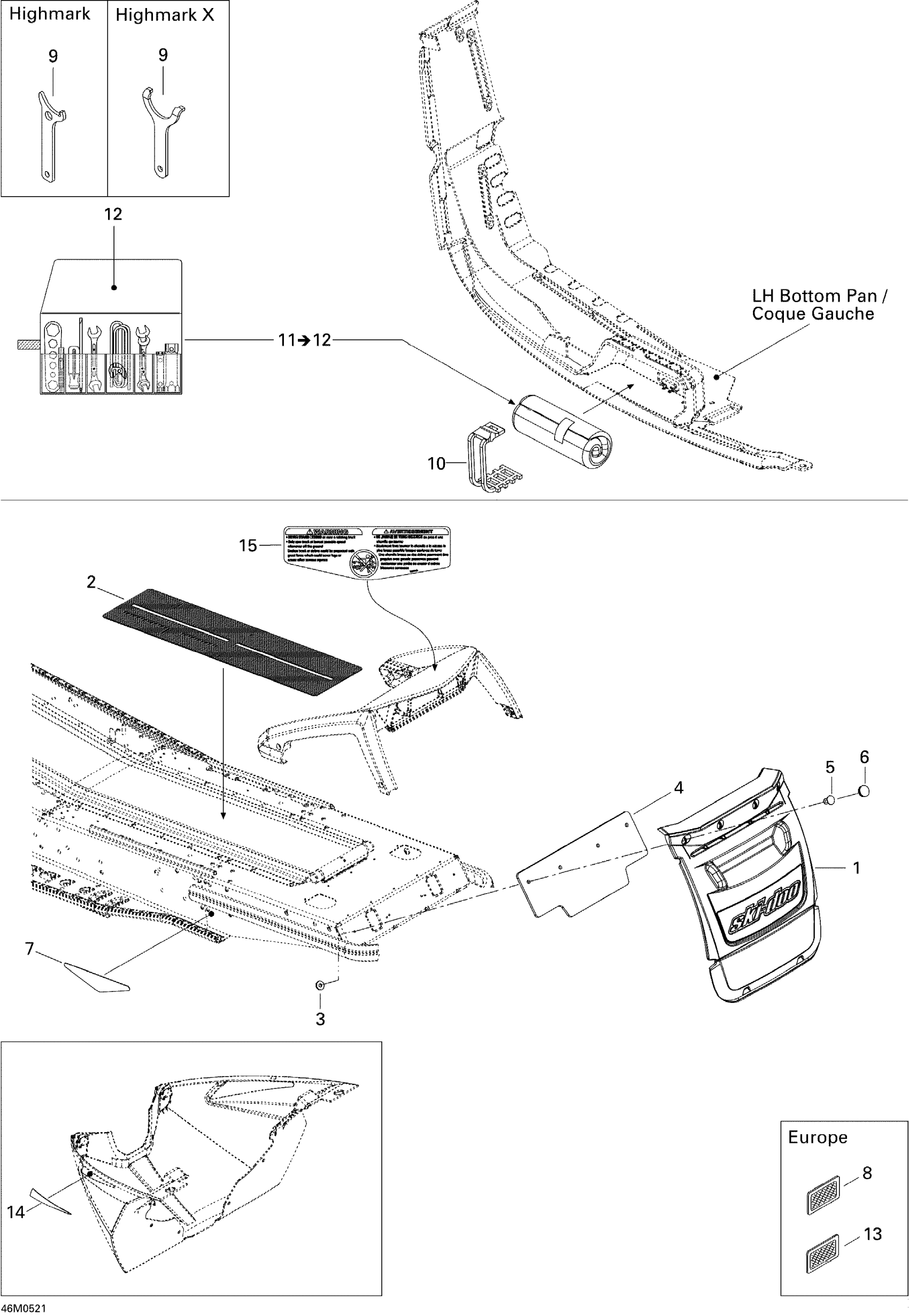

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 09- Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000446

Unavailable

2

Carpet | Model RT-162

511000371

Unavailable

3

Flat Washer

517225900

$0.18

4

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000488

Unavailable

5

Pop Rivet 3/16”

293150087

$0.93

6

Black, Cap

277000203

$9.39

7

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

7

Rear Reflector, Amber | Europe

520000311

Unavailable

8

Amber, Reflector

520000271

$19.99

9

Adjustment Wrench

529000035

$2.09

9

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

10

LATCH - Call your local BRP dealership

570069700

Unavailable

11

Tool Kit | Includes 12 to 13

529035596

$27.99

12

Tool Bag

520000047

Unavailable

13

White, Reflector

415037900

$22.99

14

LH FRONT REFLECTOR - Call your local BRP dealership

520000468

Unavailable

14

RH FRONT REFLECTOR - Call your local BRP dealership

520000469

Unavailable

15

Track Security Warning Label

516002832

Unavailable
