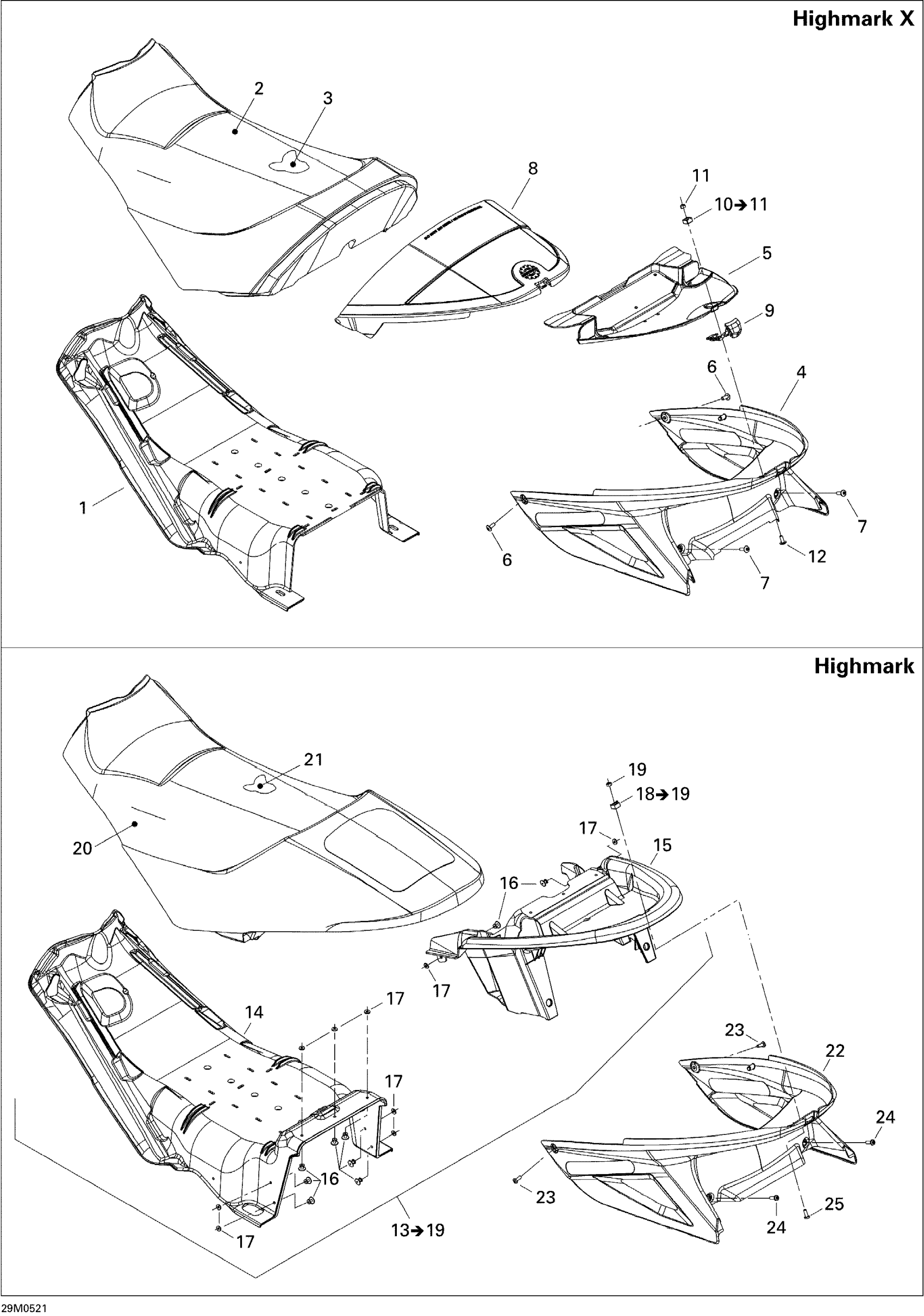

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 09- Seat Diagram

#

Description
Price

1

Seat Base

510004440

Unavailable

2

Seat Cover

510004399

Unavailable

3

Seat Foam

510004400

Unavailable

4

TRUNK, BLACK, B-160 - Call your local BRP dealership

510004539

Unavailable

4

Labrador Blue, Trunk

510004540

Unavailable

5

BOX LINER - Call your local BRP dealership

510004620

Unavailable

6

Torx Truss Screw M6 X 16

250000721

$1.69

7

Torx Screw M6 X 20

250000722

$1.68

8

Deep Black, Cover

510004401

Unavailable

8

Labrador Blue, Cover

510004541

Unavailable

9

Bracket

510003917

Unavailable

10

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

11

Elastic Stop Nut M6

232561414

$0.55

12

Torx Truss Screw M6 X 16

250000721

$1.69

13

SEAT BASE ASS'Y - Call your local BRP dealership

510004582

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Flat Washer

517225900

$0.18

18

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

19

Elastic Stop Nut M6

232561414

$0.55

20

Seat Cover

510004215

Unavailable

21

Foam

510004351

Unavailable

22

TRUNK, BLACK, B-160 - Call your local BRP dealership

510004539

Unavailable

22

Labrador Blue, Trunk

510004540

Unavailable

23

Torx Truss Screw M6 X 16

250000721

$1.69

24

Torx Screw M6 X 20

250000722

$1.68

25

Torx Truss Screw M6 X 16

250000721

$1.69
