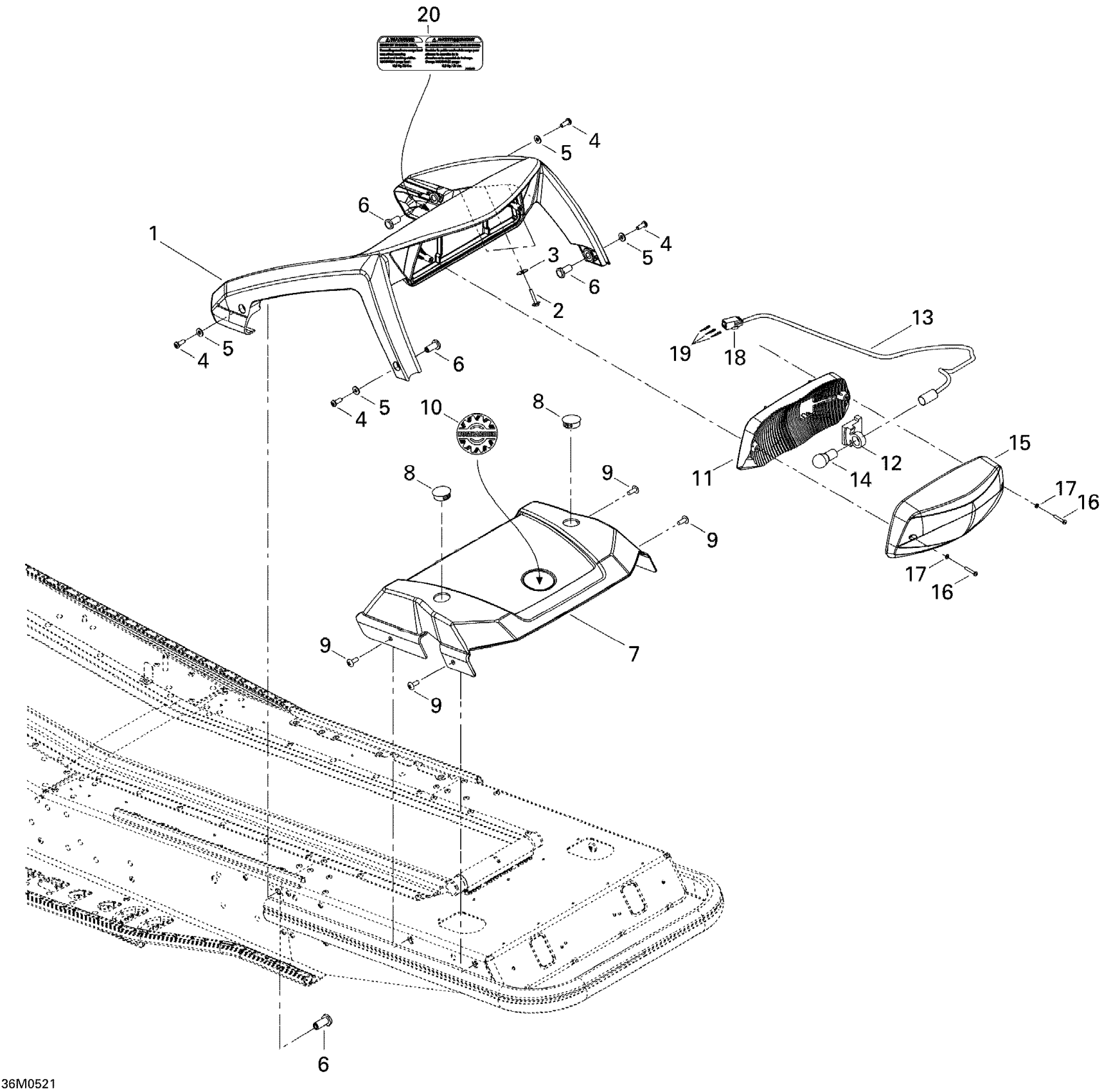

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 09- Luggage Rack Diagram

Luggage Rack

511000425

Unavailable

Self Tapping Screw #8 X 5/8

250000202

$1.48

Flat Washer

250200040

$1.90

SOCKET SCREW M6 X 16 - Call your local BRP dealership

250000168

Unavailable

Flat Washer

250200039

$0.74

Insert

511000260

Unavailable

Hose Cover

511000349

Unavailable

Black, Nylon Cap

414916600

$4.69

Torx Truss Screw M6 X 16

250000721

$1.69

BRP Logo 48mm

516008738

$16.99

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

Bulb Socket

511000428

Unavailable

Bulb

520000758

$9.10

Lens

511000315

$36.99

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

Washer - Call your local BRP dealership

414516400

Unavailable

Male Housing, 3 Circuits

515175494

$16.18

Male Terminal

515175232

$1.58

Warning Label, Maximum Cargo Load

516002666

Unavailable
