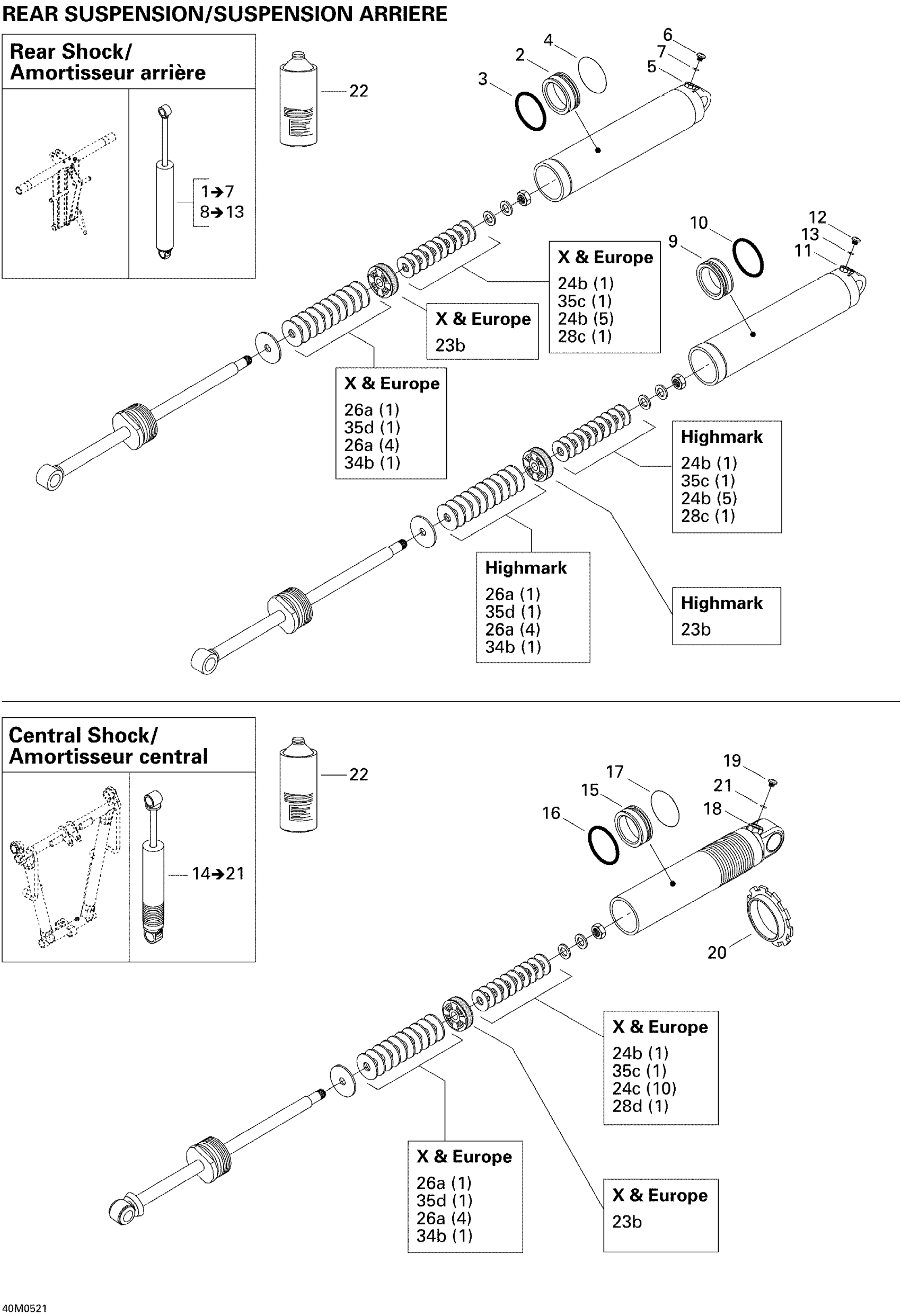

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 08- Take Apart Shock, Rear Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Europe

503190990

Unavailable

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

O-Ring

505070400

$4.54

8

Center Shock | Highmark

503190834

Unavailable

9

Free Piston

415097900

Unavailable

10

O-Ring

414888312

$17.29

11

Air Valve

505070398

$20.99

12

Screw | Not Shown

505070399

$4.12

13

O-Ring

505070400

$4.54

14

CENTER SHOCK - Call your local BRP dealership | Europe

503190662

Unavailable

15

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

16

O-Ring

414888312

$17.29

17

Piston Ring

503189308

$79.49

18

Air Valve

505070398

$20.99

19

Screw | Not Shown

505070399

$4.12

20

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

21

O-Ring

505070400

$4.54

22

Shock Oil, 1 Liter

293600035

$73.99

23a

Piston (C36)

414888304

Unavailable

23b

Not Available As Spare Part - Friction Washer

Unavailable

23c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

23d

Not Available As Spare Part - Friction Washer

Unavailable

23e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

23f

Not Available As Spare Part - Friction Washer

Unavailable

23g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

24a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

24b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

24c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

24d

Not Available As Spare Part - Friction Washer

Unavailable

25a

Not Available As Spare Part - Friction Washer

Unavailable

25b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

25c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

25d

Not Available As Spare Part - Friction Washer

Unavailable

26a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

26b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

26c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

26d

Not Available As Spare Part - Friction Washer

Unavailable

27a

Not Available As Spare Part - Friction Washer

Unavailable

27b

Not Available As Spare Part - Friction Washer

Unavailable

27c

Not Available As Spare Part - Friction Washer

Unavailable

27d

Not Available As Spare Part - Friction Washer

Unavailable

28a

Not Available As Spare Part - Friction Washer

Unavailable

28b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

28c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

28d

Not Available As Spare Part - Friction Washer

Unavailable

29a

Not Available As Spare Part - Friction Washer

Unavailable

29b

Not Available As Spare Part - Friction Washer

Unavailable

29c

Not Available As Spare Part - Friction Washer

Unavailable

29d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

30c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

30d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

31a

Not Available As Spare Part - Friction Washer

Unavailable

31b

Not Available As Spare Part - Friction Washer

Unavailable

31c

Not Available As Spare Part - Friction Washer

Unavailable

31d

Not Available As Spare Part - Friction Washer

Unavailable

32a

Not Available As Spare Part - Friction Washer

Unavailable

32b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

32c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

32d

Not Available As Spare Part - Friction Washer

Unavailable

33a

Not Available As Spare Part - Friction Washer

Unavailable

33b

Not Available As Spare Part - Friction Washer

Unavailable

33c

Not Available As Spare Part - Friction Washer

Unavailable

33d

Not Available As Spare Part - Friction Washer

Unavailable

34a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

34b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

34c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

34d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

35a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

35b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

35c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

35d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

36a

Not Available As Spare Part - Friction Washer

Unavailable

36b

Not Available As Spare Part - Friction Washer

Unavailable

36c

Not Available As Spare Part - Friction Washer

Unavailable

36d

Not Available As Spare Part - Friction Washer

Unavailable

37a

Not Available As Spare Part - Friction Washer

Unavailable

37b

Not Available As Spare Part - Friction Washer

Unavailable

37c

Not Available As Spare Part - Friction Washer

Unavailable

37d

Not Available As Spare Part - Friction Washer

Unavailable

38a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

38b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

38c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

38d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
