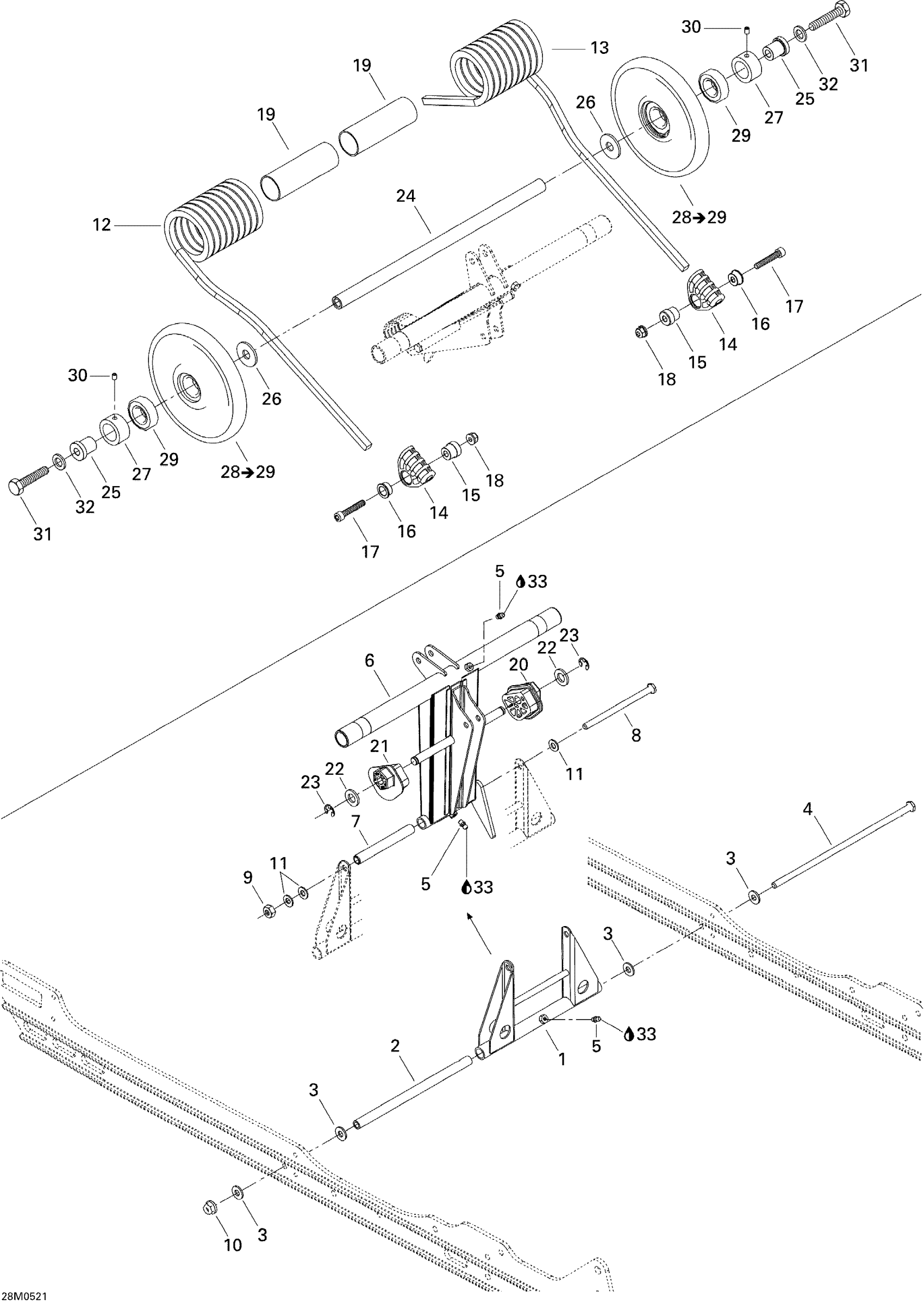

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Rear Arm Diagram

#

Description
Price

1

Pivot Arm

503189793

Unavailable

2

Pivot Arm Axle

503189156

$20.74

3

Washer

503189157

$3.20

4

Bolt M8 X 248mm

503192440

$29.97

5

Grease Fitting

408200700

$2.80

6

Rear Arm

503191057

Unavailable

7

Upper Axle, Pivot Arm

503144300

$11.98

8

Bolt M8, Short

732601197

$15.06

9

Hex. Elastic Stop Nut M8

232581414

$0.47

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Flat Washer 8 mm

234081410

$0.69

12

RH SPRING, SQUARE - Call your local BRP dealership | Europe

503190773

Unavailable

13

LH SPRING, SQUARE - Call your local BRP dealership | Europe

503190775

Unavailable

14

Spring Support

503189657

$10.20

15

Spring Guide Axle

503188934

Unavailable

16

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

17

Socket Head Screw M8 X 45

205084544

$0.74

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

BUSHING - Call your local BRP dealership

503190333

Unavailable

20

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

21

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

22

Flat Washer 12 mm

234021410

$0.68

23

E-Circlip

293370013

$0.62

24

SHAFT - Call your local BRP dealership

503190387

Unavailable

25

BUSHING - Call your local BRP dealership

503190422

Unavailable

26

Washer

503190328

$11.34

27

Retaining Ring

503168800

$12.65

28

Wheel 165 Ass'y

503190816

Unavailable

29

Ball Bearing

293350115

$11.15

30

Socket Set Screw M6 X 8

206260844

$1.25

31

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

32

Washer

732900049

$0.57

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
