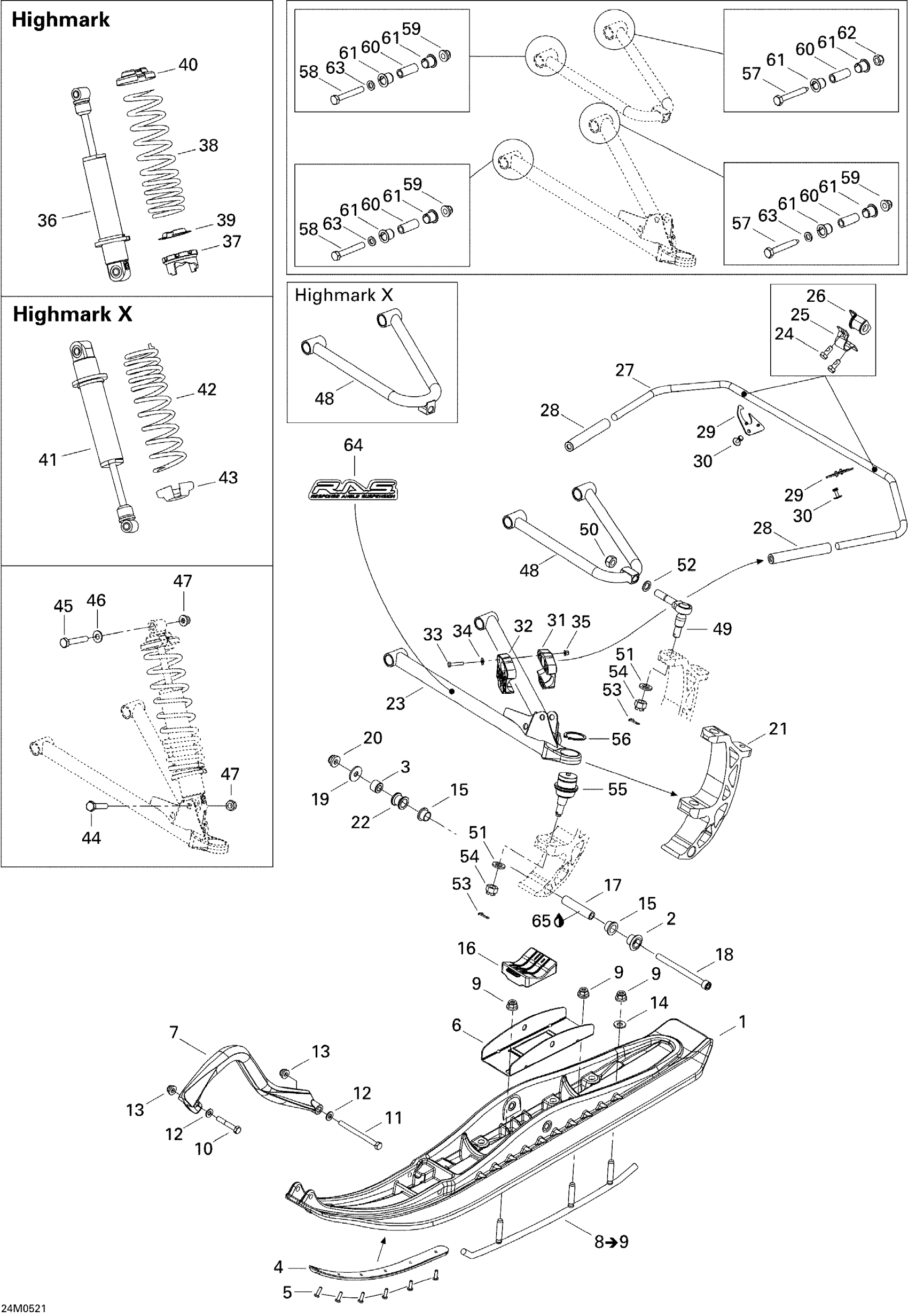

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 07- Front Suspension And Ski Diagram

#

Description
Price

1

RH Ski Ass'y | Black B-160

505071712

Unavailable

1

RH Ski Ass'y | Labrador Blue B-226

505071714

Unavailable

1

LH Ski Ass'y | Black B-160

505071713

Unavailable

1

LH Ski Ass'y | Labrador Blue B-226

505071715

Unavailable

2

CUSHION - Call your local BRP dealership

505070743

Unavailable

3

CUSHION - Call your local BRP dealership

505070823

Unavailable

4

Proactive Control

505071595

Unavailable

5

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

6

Ski Renforcement

505070745

$16.17

7

Yellow Handle | Model-MX-Z TNT

505070917

$42.49

7

Black, Handle

505070963

$35.99

8

Lisse 6 *6 Carbide | Includes 8 to 9 This part replaces 860504800.

860200582

$92.99

9

Hex. Flange Elastic Nut M10

233201414

$1.58

10

Hex. Screw M8 X 50

207085044

$1.48

11

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

12

Flat Washer 8 mm

234081410

$0.83

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Flat Washer

399910100

Unavailable

15

Leg Bushing

505072690

$12.49

16

Ski Stopper

505071779

$18.78

17

BUSHING - Call your local BRP dealership

505071271

Unavailable

18

Socket Head Screw M10 X 125

250000069

Unavailable

19

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

20

Flange Nut M10

732610084

$6.79

21

SKI LEG - Call your local BRP dealership

505071248

Unavailable

22

SPACER - Call your local BRP dealership

505071215

Unavailable

23

RH Lower Arm | Highmark X

860510300

Unavailable

23

RH Lower Arm | Highmark

860509800

Unavailable

23

LH Lower Arm | Highmark X

860510200

Unavailable

23

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

24

Hex. Screw With Nylon

250000118

Unavailable

25

CLAMP - Call your local BRP dealership

506095800

Unavailable

26

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

26

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

27

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

28

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

29

PLUG - Call your local BRP dealership

505071253

Unavailable

30

Pop Rivet 3/16"

293150103

$0.55

31

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

32

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

33

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

34

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

35

Hex. Flange Elastic Nut M5

233251414

$1.04

36

FRONT SHOCK - Call your local BRP dealership

505071455

Unavailable

37

Adjustment Cam

505073625

$12.99

38

SPRING - Call your local BRP dealership

505071492

Unavailable

39

Spring Guide

503191872

$2.29

40

Spring Stopper

706200881

$12.99

41

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

42

SPRING - Call your local BRP dealership | Black-Black

505071647

Unavailable

43

Spring Stopper

706200881

$12.99

44

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

45

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

46

Washer

503189564

$0.74

47

Hex. Flange Elastic Nut M10

233201414

$1.58

48

RH Upper Arm | Highmark X

505071623

Unavailable

48

LH Upper Arm | Highmark X

505071625

Unavailable

48

Paint Upper Arm | Highmark

505071733

Unavailable

49

Upper Ball Joint

505072257

$17.58

49

Ball Joint

505071680

Unavailable

50

Hex. Flange Elastic Nut M12

250000047

$1.90

51

Flat Washer 12 mm

234021410

$0.72

52

Washer

503189276

$3.28

53

Cotter Pin

211400017

$0.33

54

Hex. Castellated Nut M12

232221414

$3.17

55

Ball Joint

505071658

Unavailable

56

Circlip

293370035

$2.64

57

Hex. Screw M10 X 75

250001063

$13.16

58

Hex. Screw M10 X 75

250001063

$13.16

59

Hex. Flange Elastic Nut M10

250100165

$0.85

60

Aluminium Bushing

505070960

$14.15

61

Arm Bushing

505070566

$3.28

62

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

63

Washer

503189564

$0.74

64

R.a.s. Suspension Decal

516002747

Unavailable

65

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
