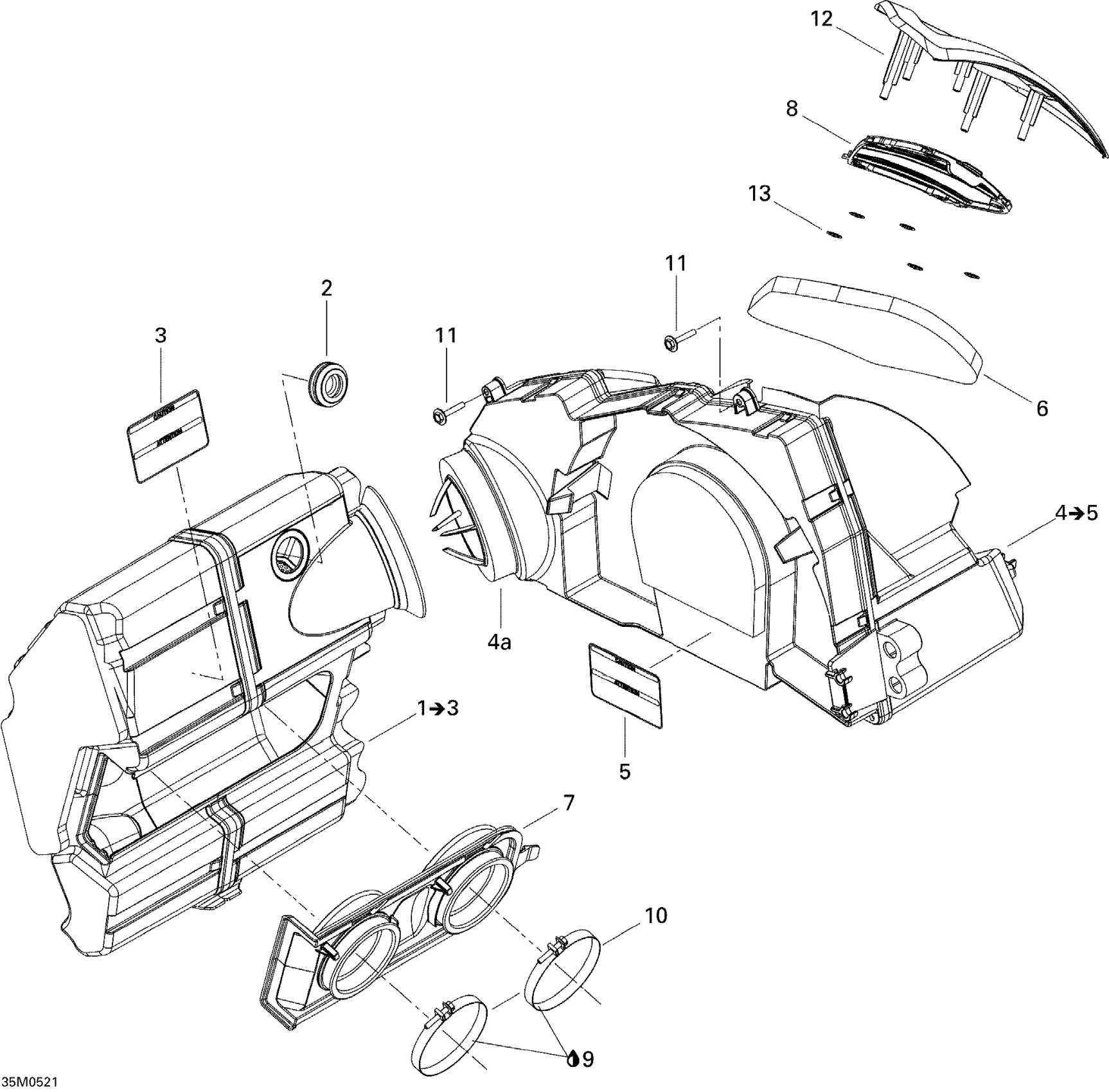

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Air Intake System Diagram

#

Description

Price

1

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership

508000354

Unavailable

2

GROMMET - Call your local BRP dealership

570065500

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

Secondary Chamber Ass'y | Includes 4 to 5

508000359

Unavailable

4a

FOAM - Call your local BRP dealership

508000520

Unavailable

5

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

6

AIR FILTER - Call your local BRP dealership

508000367

Unavailable

7

ADAPTOR PLATE ASS'Y - Call your local BRP dealership

508000451

Unavailable

8

Intake Filter | X

508000433

Unavailable

9

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

10

Gemi Clamp

508000346

$10.33

11

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

12

Deflector

508000461

Unavailable

13

Push Nut

732610072

$2.19
