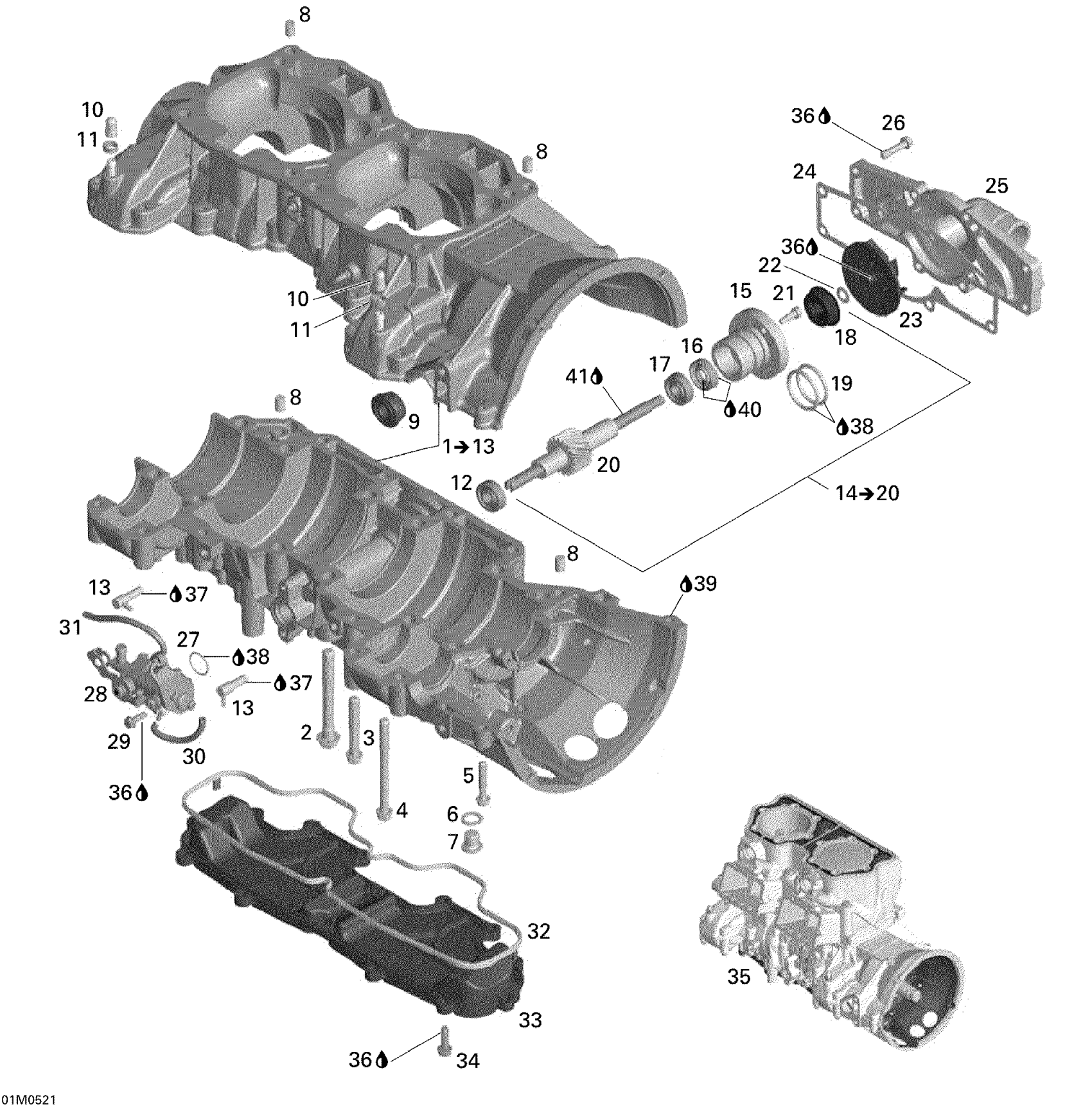

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 13

420889221

Unavailable

2

Torx Flange Screw M10 X 85

420440442

Unavailable

3

Torx Flange Screw M10 X 55

420440392

Unavailable

4

Torx Flange Screw M8 X 90

420440412

$7.01

5

Torx Flange Screw M6 X 35

420440274

$0.96

6

Copper Washer

420250640

$0.93

7

Plug Screw M12 x 1,5

420241701

$10.76

8

Center Pin 8 X 12

420632010

$3.52

9

Cable Grommet

420660890

$12.15

10

Cap

420960770

$3.88

11

Clamp

420853653

$7.01

12

Ball Bearing

420232100

$17.88

13

Check Valve

420956511

$32.81

14

WATER PUMP/OIL PUMP ASS'Y - Call your local BRP dealership | Includes 14 to 19

420837671

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420230195

$14.52

17

Ball Bearing

420232100

$17.88

18

Rotary Seal

420650371

$41.01

19

O-Ring

420950890

$4.15

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Allen Screw M5 x 16

420840514

$1.79

22

Thrust Washer

420227945

$3.75

23

Water Impeller

420922805

$35.79

24

GASKET - Call your local BRP dealership

420630620

Unavailable

25

WATER PUMP HOUSING - Call your local BRP dealership

420922920

Unavailable

26

Torx Flange Screw M6 X 25

420440234

$2.91

27

O-Ring

293300041

$8.09

28

OIL PUMP ASS'Y - Call your local BRP dealership

420888772

Unavailable

29

Hex. Tapping Screw M5 X 20

420841555

$1.63

30

Oil Hose 1500Mm Long

219704404

$15.64

31

Oil Hose 1500Mm Long

219704404

$15.64

32

GASKET - Call your local BRP dealership

420631190

Unavailable

33

Waterduct Cover, Heat Exchanger

420812342

Unavailable

34

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

35

Short Block 995 SDI

420099501

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

Sealant Loctite 648

219703000

$41.01

38

Dow Corning 111, 150 g

413707000

$59.99

39

Loctite 5910, 300 ml

293800081

$57.99

40

Petamo Grease, GHY133N, 400 g

420899271

$65.64

41

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33
