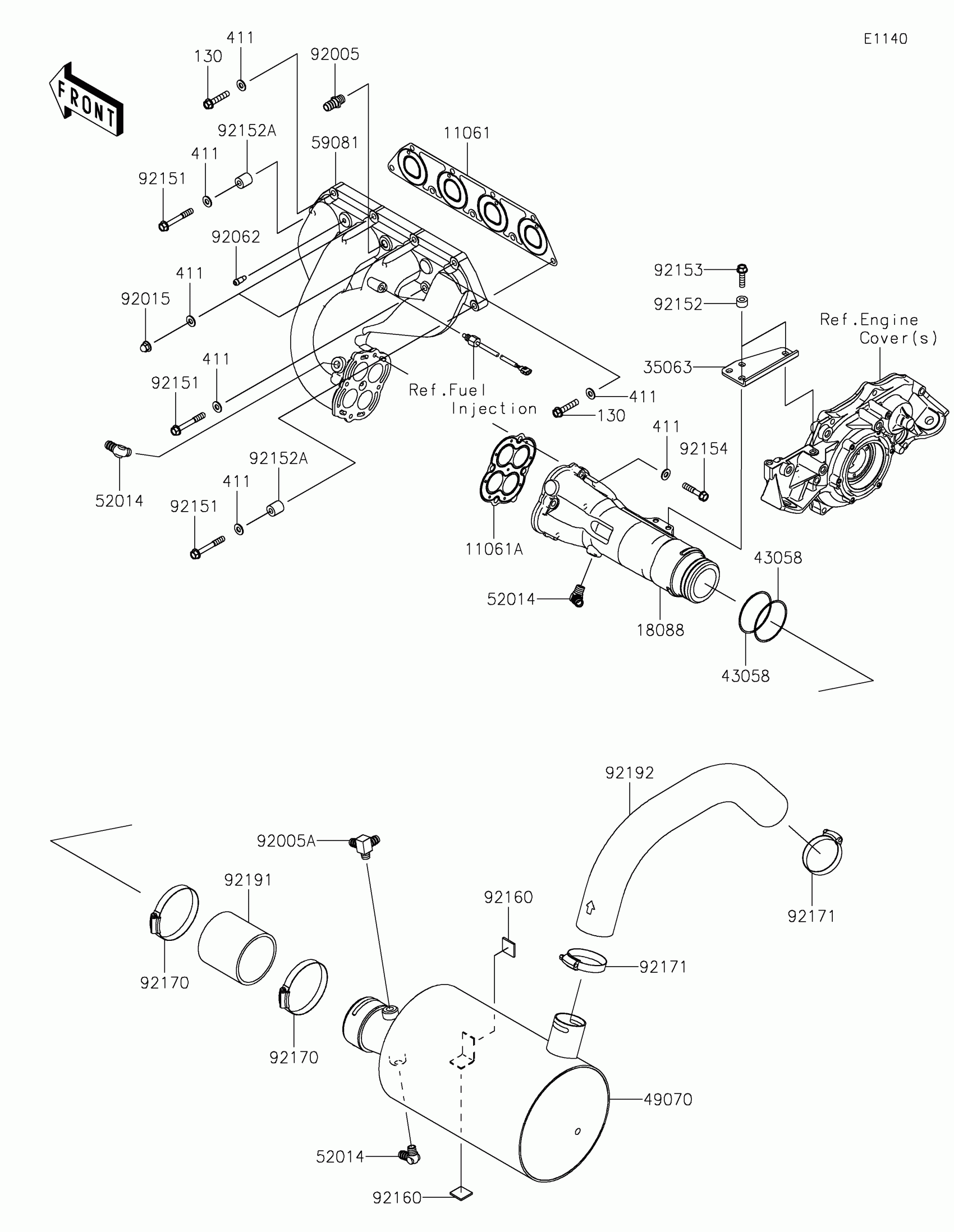

Kawasaki STX 160X Muffler(s) Diagram
#
Description
Price
11061
GASKET,MANIFOLD EXHAUST
11061-3713
$40.44
11061A
GASKET,PIPE EXHAUST
11061-3714
$18.20
18088
PIPE-EXHAUST
18088-3723
$377.43
35063
STAY
35063-3704
$28.86
43058
RING,GASKET
43058-3733
$19.74
49070
MUFFLER-COMP
49070-0045
$849.58
52014
ELBOW
52014-3711
$30.12
59081
MANIFOLD-EXHAUST
59081-3741
$672.45
92005
FITTING
92005-3714
$18.72
92005A
FITTING
92005-3751
$52.29
92015
NUT,CAP,8MM
92015-1371
$5.00
92062
NOZZLE
92062-0562
$10.60
92151
BOLT,8X60
92151-3730
$7.27
92152
COLLAR,8.2X17X10
92152-3740
$53.47
92152A
COLLAR
92152-3812
$7.63
92153
BOLT,FLANGED,8X30
92153-3722
$2.55
92154
BOLT,FLANGED,8X40
92154-0992
$3.02
92160
DAMPER,25X25
92160-3864
$3.32
92170
CLAMP
92170-3764
$10.35
92171
CLAMP
92171-3723
$6.35
92191
TUBE,PIPE EX-MUFFLER
92191-3986
$21.54
92192
TUBE,W/M-TAIL PIPE
92192-1173
$51.33
130
BOLT-FLANGED,8X40
130CD0840
$4.20
411
WASHER-PLAIN,8MM
411S0800
$3.09
