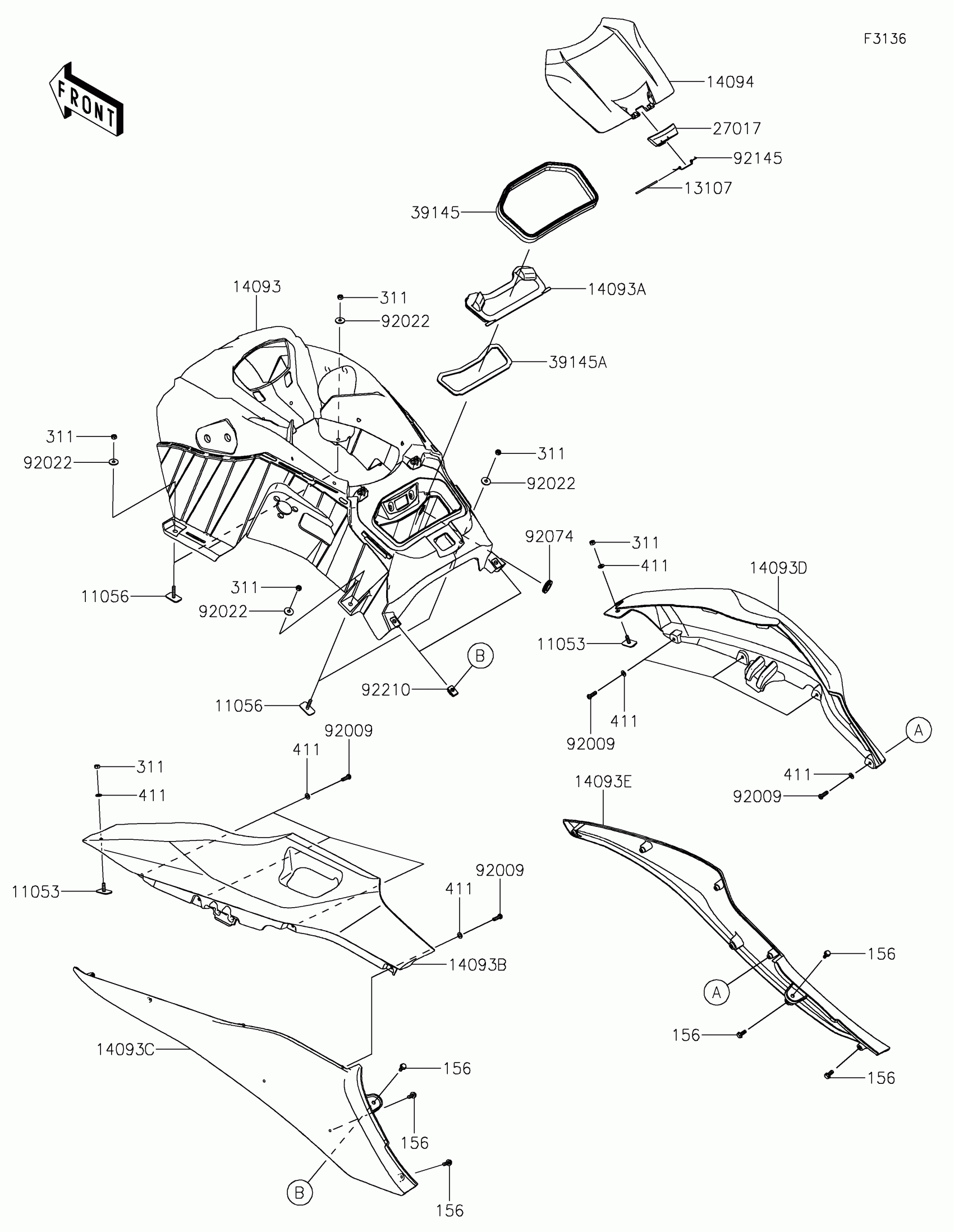

Kawasaki STX 160X Hull Middle Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.17

11056

BRACKET

11056-3724

$4.46

13107

SHAFT

13107-3790

$2.98

14093

COVER,METER

14093-0881

$138.85

14093A

COVER,INNER,CNT

14093-0885

$9.01

14093B

COVER,LH,UPP,M.P.SILVER

14093-0887-IS

$236.64

14093C

COVER,LH,LWR,P.N.YELLOW

14093-0889-66N

$236.63

14093D

COVER,RH,UPP,M.P.SILVER

14093-0891-IS

$236.64

14093E

COVER,RH,LWR,P.N.YELLOW

14093-0893-66N

$236.63

14094

COVER,CNT STRAGE,M.P.SILVER

14094-0242-IS

Unavailable

27017

LOCK,CNT STRAGE

27017-0582

Unavailable

39145

TRIM-SEAL,STRAGE,CNT

39145-0716

$47.69

39145A

TRIM-SEAL,INNER,CNT

39145-0717

$3.24

92009

SCREW,TAPPING,6X20

92009-3842

$1.56

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92074

PLUG

92074-027

$9.49

92145

SPRING

92145-3729

$4.24

92210

NUT,6MM

92210-3768

$4.39

156

BOLT-WP,6X18

156R0618

$2.84

311

NUT-HEX,6MM

311R0600

$0.65

411

WASHER-PLAIN,6MM

411S0600

$1.49
