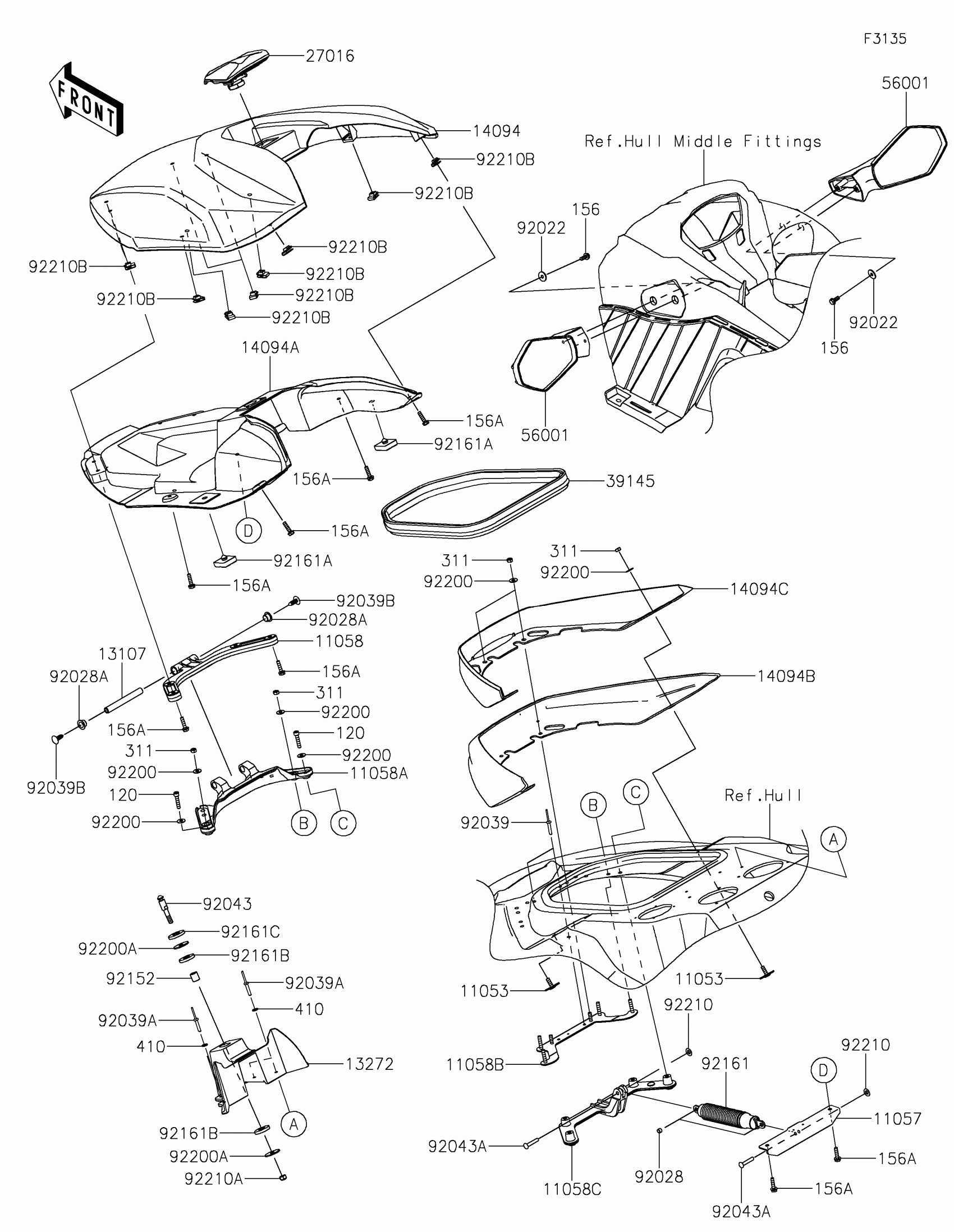

Kawasaki STX 160X Hull Front Fittings Diagram

#

Description
Price

11053

BRACKET

11053-3776

$9.17

11057

BRACKET

11057-7383

$40.55

11058

BRACKET,HINGE,UPP

11058-2112

$126.88

11058A

BRACKET,HINGE,LWR

11058-2113

$222.66

11058B

BRACKET,FR

11058-2114

$101.38

11058C

BRACKET,HINGE,LWR

11058-2115

$157.69

13107

SHAFT,FRONT HINGE

13107-3802

$23.31

13272

PLATE,FR METER COVER

13272-7027

$8.71

14094

COVER,FR HATCH,M.B.GRAY

14094-0234-75E

$134.55

14094A

COVER,FR HATCH,INNER

14094-0235

$138.39

14094B

COVER,TRIM,UPP,P.N.YELLOW

14094-0236-66N

$103.46

14094C

COVER,TRIM,LWR

14094-0237

$17.42

27016

LOCK-ASSY,HATCH

27016-0101

$99.75

39145

TRIM-SEAL,FR,HATCH

39145-0718

$115.04

56001

MIRROR-ASSY

56001-0410

$101.75

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92028A

BUSHING

92028-3770

$1.90

92039

RIVET

92039-3733

$1.81

92039A

RIVET

92039-3771

$0.79

92039B

RIVET

92039-3788

$2.34

92043

PIN

92043-0754

$19.08

92043A

PIN,6X33

92043-3748

$10.76

92152

COLLAR,8.2X14X16.2

92152-0979

$12.85

92161

DAMPER,HATCH

92161-1581

$193.94

92161A

DAMPER,10X34X10

92161-1920

$1.20

92161B

DAMPER

92161-3739

$4.20

92161C

DAMPER

92161-3747

$3.52

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92200A

WASHER,8.5X32X2

92200-3786

$4.39

92210

NUT,SPEED,6MM

92210-3739

$1.59

92210A

NUT,LOCK,8MM

92210-3742

$5.71

92210B

NUT,6MM

92210-3768

$4.39

120

BOLT-SOCKET,6X30

120R0630

$3.35

156

BOLT-WP,6X16

156R0616

$2.76

156A

BOLT-WP,6X25

156R0625

$3.63

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable
