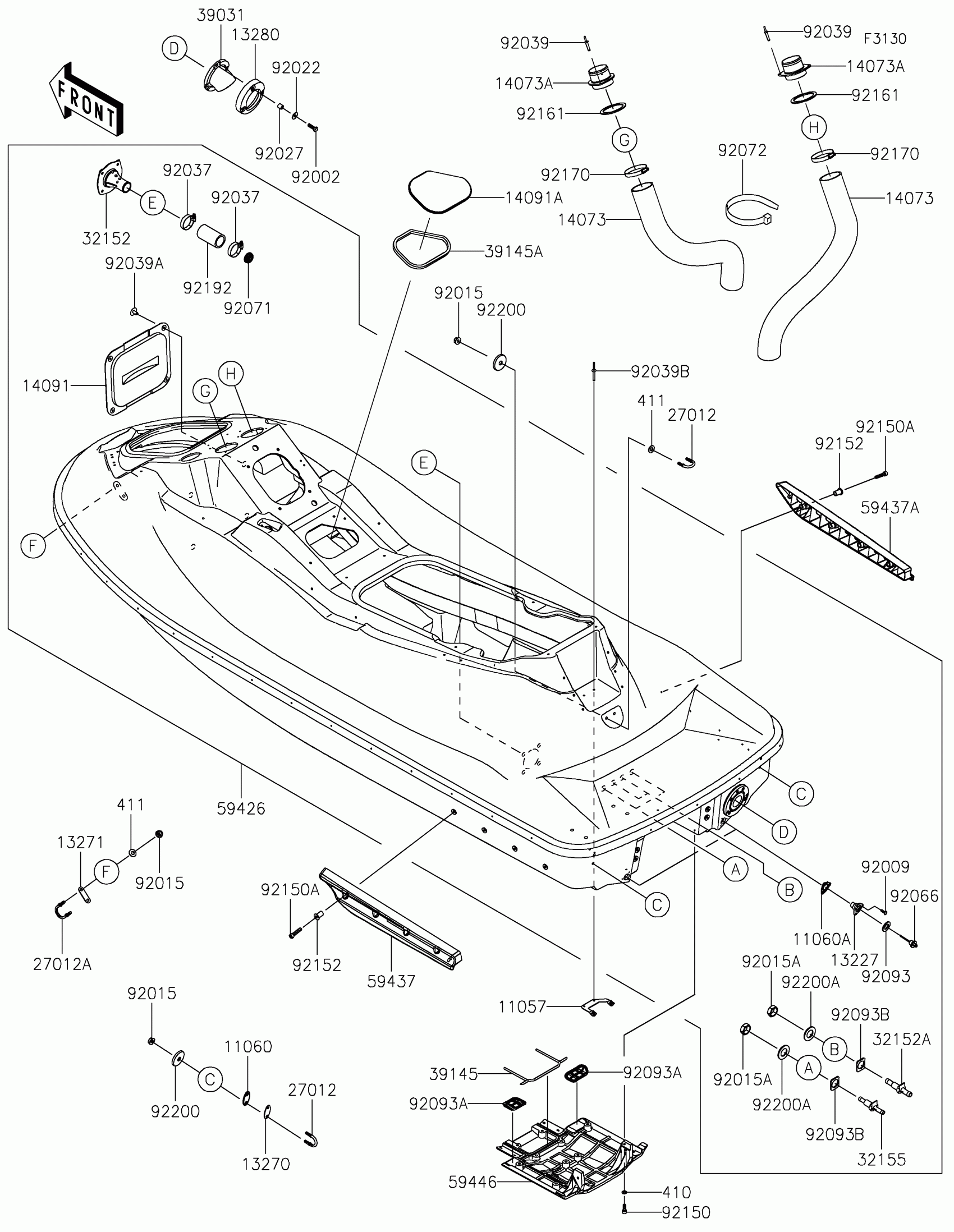

Kawasaki STX 160X Hull Diagram
#
11057
BRACKET,BREATHER
11057-2807
$8.81
11060
GASKET,U HOOK,RR
11060-3800
$6.20
11060A
GASKET,DRAIN PLUG
11060-3801
$6.61
13227
HOUSING,DRAIN PLUG,F.BLACK
13227-3721-6Z
$7.98
13270
PLATE
13270-3860
$8.38
13271
PLATE
13271-3724
$4.31
13280
HOLDER,EXHAUST VALVE
13280-3718
$27.61
14073
DUCT,L=800
14073-0878
$22.96
14073A
DUCT
14073-3805
$6.67
14091
COVER,ECU
14091-3786
$15.89
14091A
COVER,CNT ACCESS
14091-3800
$7.13
27012
HOOK
27012-3797
$32.29
27012A
HOOK
27012-3821
$27.27
32152
PIPE,DRIVE SHAFT
32152-3703
$46.35
32152A
PIPE
32152-3749
$7.09
32155
PIPE,COOLING
32155-1511
$7.09
39031
CAP-END
39031-3704
$40.86
39145
TRIM-SEAL,JET PUMP COVER
39145-3768
$30.22
39145A
TRIM-SEAL,8.5X11X592
39145-3800
$16.35
59426
HULL-COMP,BLACK
59426-0032-650
$4.00
59437
STABILIZER,LH,F.BLACK
59437-3745-6Z
$62.63
59437A
STABILIZER,RH,F.BLACK
59437-3746-6Z
$62.63
59446
COVER-JET PUMP
59446-0078
$360.38
92002
BOLT,6X20
92002-3755
$4.69
92009
SCREW,TAPPING,4X16
92009-3849
$1.59
92015
NUT,FLANGED,8MM
92015-1933
$3.92
92015A
NUT,20MM
92015-3738
$7.31
92022
WASHER
92022-567
$2.67
92027
COLLAR,6.2X10X10
92027-3705
$8.86
92037
CLAMP
92037-3009
$3.70
92039
RIVET
92039-3775
$1.70
92039A
RIVET
92039-3788
$3.39
92039B
RIVET
92039-3794
$7.71
92066
PLUG,RR,DRAIN,F.BLACK
92066-3783-6Z
$17.50
92071
GROMMET
92071-1259
$5.95
92072
BAND,L=608.22
92072-3884
$3.35
92093
SEAL
92093-3720
$3.62
92093A
SEAL
92093-3765
$17.94
92093B
SEAL
92093-3784
$3.89
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,SOCKET,6X30
92150-3822
$4.31
92152
COLLAR
92152-3715
$8.38
92161
DAMPER
92161-3769
$3.87
92170
CLAMP
92170-1679
$6.63
92192
TUBE,39X51X90
92192-1511
$13.20
92200
WASHER
92200-3779
$5.30
92200A
WASHER,21X34X2
92200-3802
$6.22
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
411
WASHER-PLAIN,8MM
411S0800
$3.09
