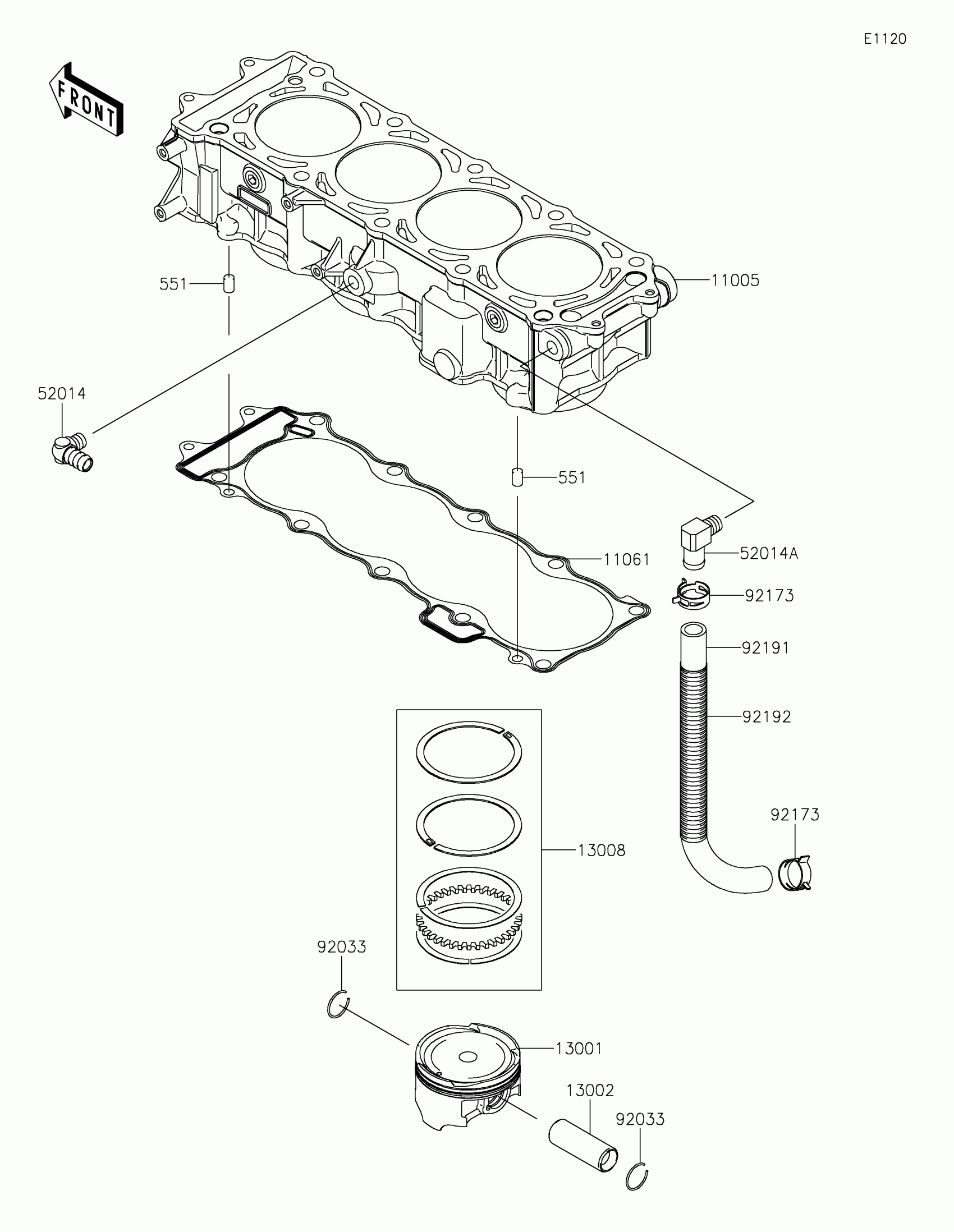

Find the part on the Cylinder/piston diagram for your 2025 Kawasaki STX 160X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki STX 160X Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-3768

1

$1,383.95

In stock

11061

1

$61.21

In stock

13001

PISTON-ENGINE

13001-3737

1

$121.92

In stock

13002

PIN-PISTON

13002-3709

1

$26.35

In stock

13008

RING-SET-PISTON

13008-0048

1

$64.74

In stock

52014

ELBOW

52014-3711

1

$30.70

In stock

52014A

ELBOW

52014-3717

1

$33.70

In stock

92033

RING-SNAP

92033-1188

1

$2.83

In stock

92173

CLAMP

92173-1039

1

$2.44

In stock

92191

TUBE,BREATHER

92191-3983

1
Out of stock

92192

TUBE,CORRUGATED,L=265

92192-1083

1
Out of stock

551

PIN-DOWEL

551R0812

1

$6.30

In stock
