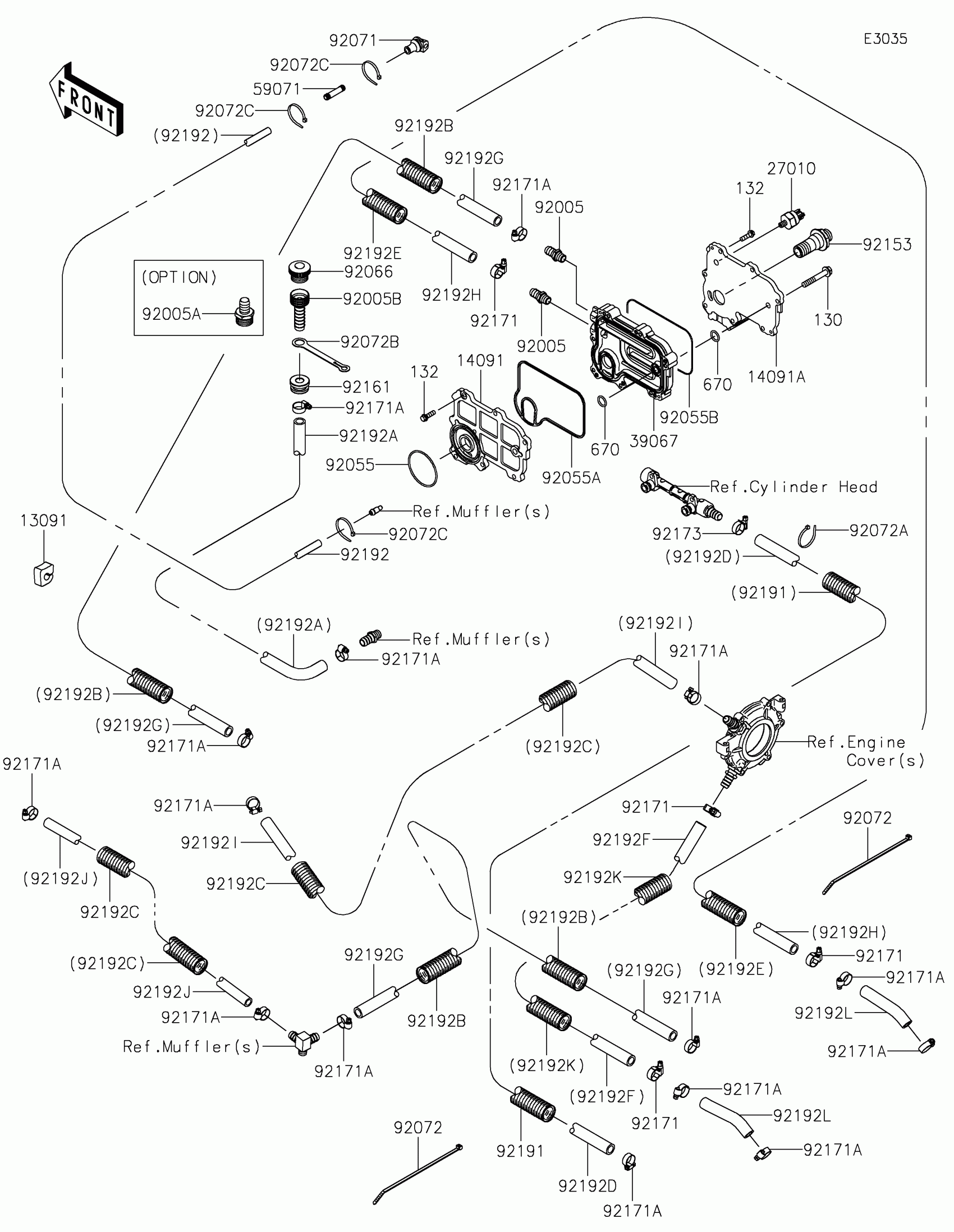

Kawasaki STX 160X Cooling Diagram

#

Description
Price

13091

HOLDER

13091-3712

$4.14

14091

COVER,INSIDE

14091-3755

$87.33

14091A

COVER,OUTSIDE

14091-3756

$87.33

27010

SWITCH,OIL PRESSURE

27010-0918

$60.66

39067

COOLER-OIL

39067-3704

$265.22

59071

JOINT

59071-3764

$7.51

92005

FITTING

92005-3714

$14.12

92005A

FITTING,FLUSH

92005-3748

$9.34

92005B

FITTING,FLUSH

92005-3757

$14.97

92055

RING-O,58X3

92055-3767

$4.65

92055A

RING-O

92055-3770

$17.77

92055B

RING-O

92055-3772

$9.92

92066

PLUG

92066-3787

$11.34

92071

GROMMET

92071-3815

$4.14

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,L=152

92072-3874

$3.75

92072B

BAND

92072-3877

$4.95

92072C

BAND,L=100.08

92072-3882

$1.71

92153

BOLT,OIL COOLER

92153-3713

$25.83

92161

DAMPER

92161-1331

$2.63

92171

CLAMP

92171-3701

$7.31

92171A

CLAMP

92171-3714

$7.22

92173

CLAMP

92173-1482

$15.46

92191

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.51

92192

TUBE,7X12X1590

92192-1514

$16.76

92192A

TUBE,EXHAUST MANIFOLD-FLUSH

92192-2272

$13.03

92192B

TUBE,CORRUGATED,19.5X23.8X900

92192-3711

$4.75

92192C

TUBE,CORRUGATED,19.5X23.8X380

92192-3714

$2.19

92192D

TUBE,12X18X630

92192-3716

$56.99

92192E

TUBE,CORRUGATED,19.5X23.8X1400

92192-3732

$7.64

92192F

TUBE,GENERATOR-HULL

92192-3739

$55.68

92192G

TUBE,12X18X1000

92192-3740

$24.75

92192H

TUBE,12X18X1520

92192-3741

$35.92

92192I

TUBE,12X18X480

92192-3742

$12.61

92192J

TUBE,12X18X450

92192-3745

$12.61

92192K

TUBE,CORRUGATED,L=600M

92192-3751

$3.34

92192L

TUBE,PUMP-HULL

92192-3789

$5.93

130

BOLT-FLANGED,8X50

130BD0850

$4.17

132

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

670

O RING,14MM

670D2014

$4.18
