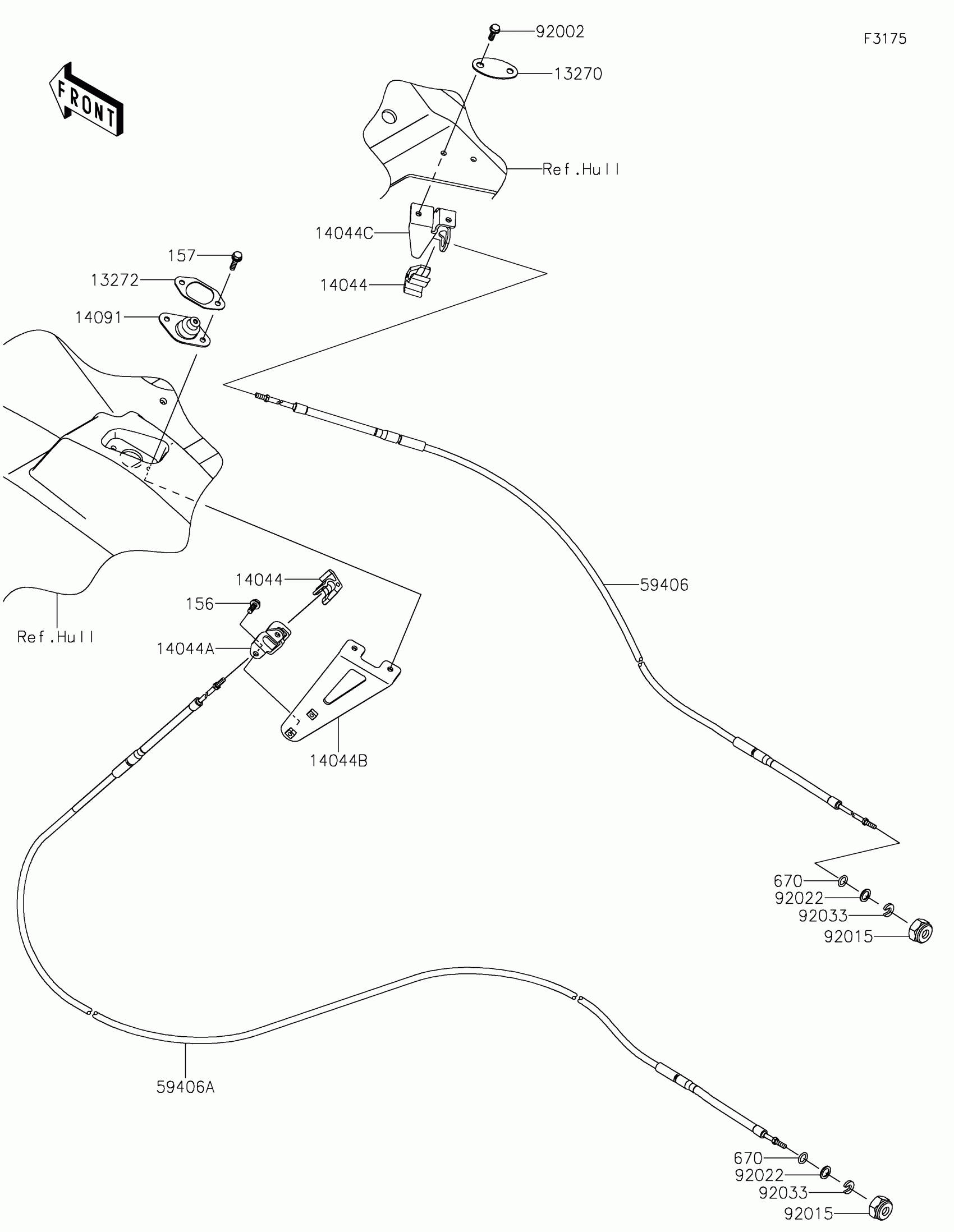

Kawasaki STX 160X Cables Diagram

Description

Price

13270

PLATE

13270-3860

$8.38

13272

PLATE

13272-2908

$3.62

14044

HOLDER-CABLE

14044-3765

$3.57

14044A

HOLDER-CABLE,REVERSE

14044-3766

$15.12

14044B

HOLDER-CABLE,REVERSE

14044-3767

$14.82

14044C

HOLDER-CABLE,STEERING

14044-3769

$17.06

14091

COVER

14091-3821

$6.54

59406

CABLE-STRG,STEERING

59406-0007

$136.83

59406A

CABLE-STRG,REVERSE

59406-0008

$215.70

92002

BOLT,6X20

92002-3755

$4.69

92015

NUT,20MM

92015-526

$29.72

92022

WASHER

92022-535

$7.34

92033

RING-SNAP,7.7X17.5X3.0

92033-3737

$6.89

156

BOLT-WP,6X16

156R0616

$3.65

157

BOLT-WSP,6X25

157R0625

$4.43

670

O RING,11MM

670B2011

$1.28
