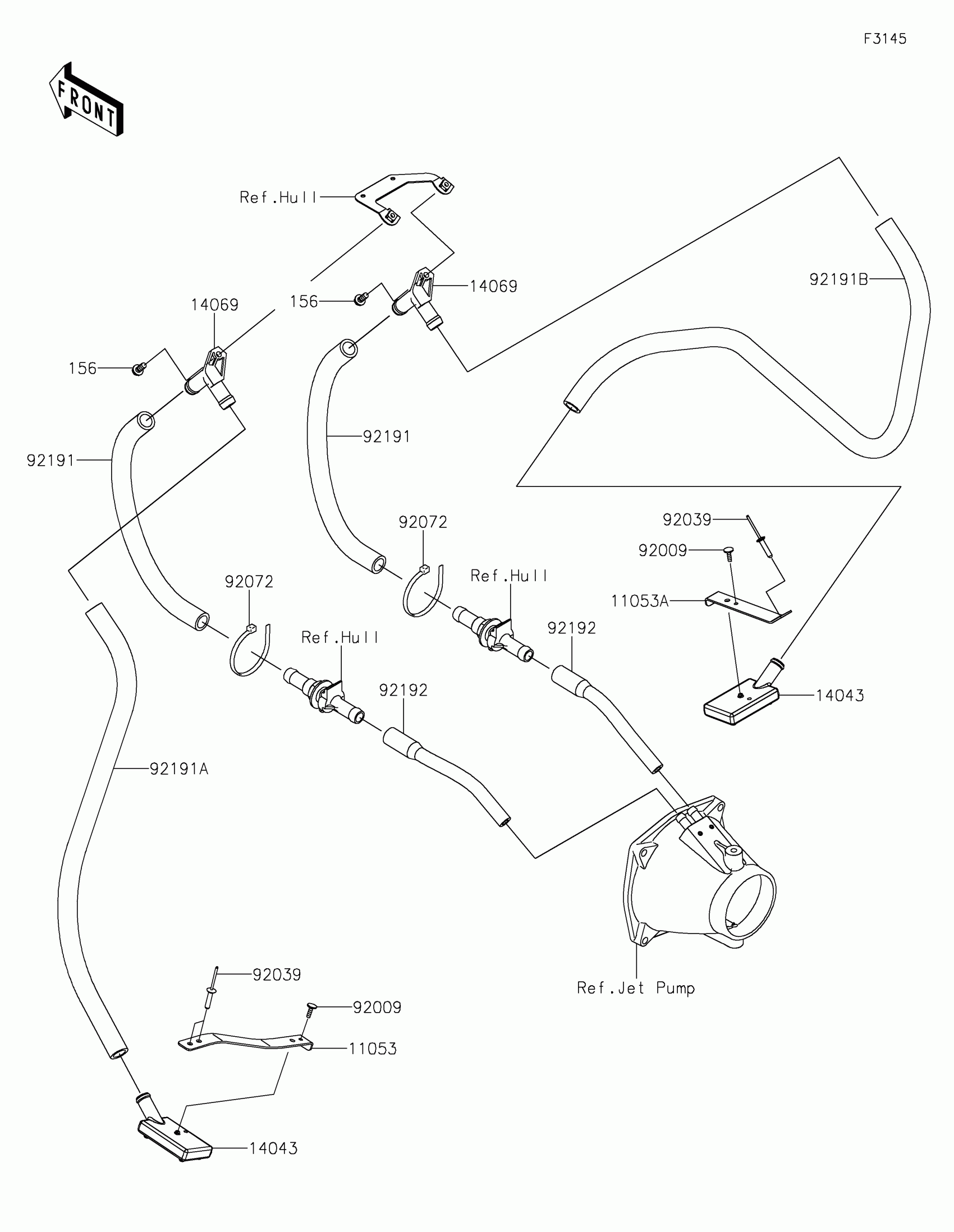

Kawasaki STX 160X Bilge System Diagram

Description

Price

11053

BRACKET,RR,LH

11053-3744

$16.32

11053A

BRACKET,FR,CNT

11053-3745

$7.90

14043

FILTER

14043-3711

$6.37

14069

BREATHER

14069-3708

$9.50

92009

SCREW,TAPPING,4X14

92009-3762

$2.12

92039

RIVET

92039-3753

$1.65

92072

BAND,L=188.85

92072-0105

$1.73

92191

TUBE,BREATHER-HULL

92191-3988

$24.47

92191A

TUBE,FILTER-BREATHER

92191-3989

$41.91

92191B

TUBE,FILTER-BREATHER

92191-3990

$61.23

92192

TUBE,HULL-NOZZLE

92192-3843

$16.97

156

BOLT-WP,6X16

156R0616

$3.65
