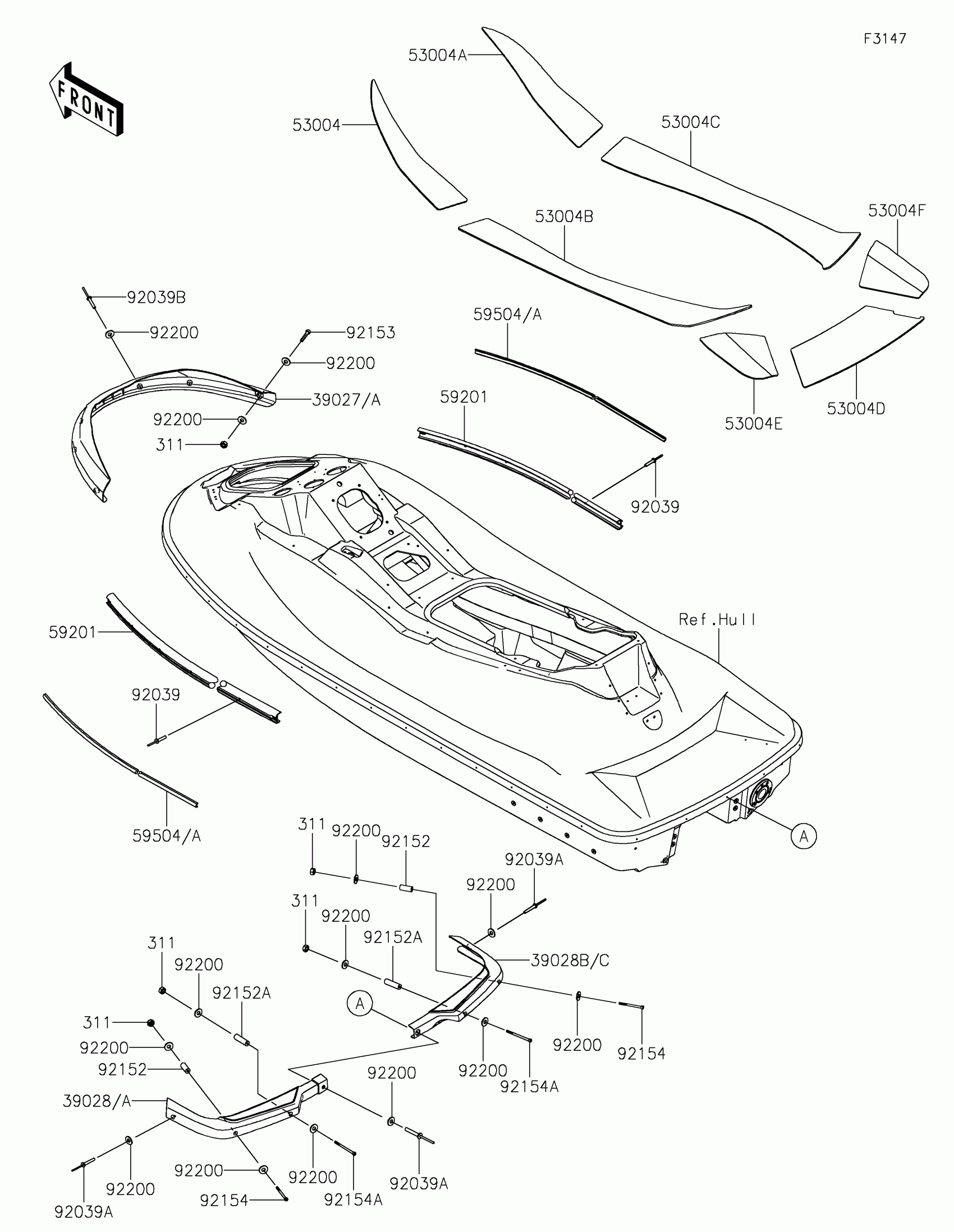

Kawasaki STX 160 Pads Diagram
#
Description
Price
39027
BUMPER-FRONT,S.YELLOW
39027-0002-40E
$90.58
39027A
BUMPER-FRONT,F.BLACK
39027-0002-6Z
$93.18
39028
BUMPER-REAR,LH,S.YELLOW
39028-0003-40E
$22.91
39028A
BUMPER-REAR,LH,F.BLACK
39028-0003-6Z
$23.58
39028B
BUMPER-REAR,RH,S.YELLOW
39028-0004-40E
$22.91
39028C
BUMPER-REAR,RH,F.BLACK
39028-0004-6Z
$23.58
53004
MAT,FR,LH
53004-0655
$15.03
53004A
MAT,FR,RH
53004-0656
$15.03
53004B
MAT,MID,LH
53004-0657
$41.45
53004C
MAT,MID,RH
53004-0658
$41.45
53004D
MAT,RR,CNT
53004-0659
$30.33
53004E
MAT,RR,LH
53004-0660
$12.21
53004F
MAT,RR,RH
53004-0661
$12.21
59201
BUMPER,SIDE,F.BLACK
59201-0002-6Z
$162.44
59504
INSERT-BOAT FENDER,SIDE,BLACK
59504-0001-6Z
$63.87
59504A
INSERT-BOAT FENDER,SIDE,F.SIL
59504-0001-AG
$67.73
92039
RIVET
92039-3771
$0.95
92039A
RIVET
92039-3773
$1.08
92039B
RIVET
92039-3794
$7.71
92152
COLLAR,5.5X14X33
92152-2593
$15.52
92152A
COLLAR,5.5X14X48
92152-2594
$18.55
92153
BOLT,SOCKET,5X30
92153-3742
$2.97
92154
BOLT,SOCKET,5X65
92154-3998
$3.86
92154A
BOLT,SOCKET,5X80
92154-3999
$5.31
92200
WASHER,5X12X1
92200-3796
$2.15
311
NUT-HEX,5MM
311R0500
$1.75
