Description

Price

13061

BOSS,CAM SENSOR

13061-1687

$16.18

21007

ROTOR,EX CAM

21007-3742

$22.70

21007A

ROTOR,PULSING

21007-3744

$23.32

21121

COIL-IGNITION

21121-0744

$186.15

21150

CORD-ASSY,#1,L=340

21150-0006

$79.55

21150A

CORD-ASSY,#2,L=450

21150-0007

$79.55

21150B

CORD-ASSY,#3,L=540

21150-0008

$79.55

21150C

CORD-ASSY,#4,L=600

21150-0009

$79.55

21176

SENSOR

21176-1077

$102.13

26011

WIRE-LEAD

26011-1905

$48.96

59026

COIL-PULSING

59026-3702

$120.91

92002

BOLT,6X16

92002-3728

$4.69

92009

SCREW,5X12

92009-1296

$3.92

92015

NUT,LOCK,6MM

92015-3766

$5.91

92037

CLAMP,HOSE

92037-1603

$5.00

92043

PIN

92043-1575

$2.46

92055

RING-O

92055-1639

$3.09

92070

PLUG-SPARK,CR9EKB(NGK)

92070-0050

$12.39

92070A

PLUG-SPARK,CR8EKB(NGK)

92070-0708

$10.36

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,L=152

92072-3874

$4.18

92150

BOLT,6X18

92150-1645

$3.60

92152

COLLAR

92152-3738

$7.63

92154

BOLT,6X70

92154-4158

$6.85

92173

CLAMP

92173-0742

$9.17

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92200A

WASHER,6.5X14X1

92200-1388

$2.46

130

BOLT-FLANGED,8X25

130CD0825

$2.70

156

BOLT-WP,6X10

156R0610

$2.80

411

WASHER-PLAIN,6MM

411S0600

$2.06

610

ROLLER,4X8

610A0408

$4.31

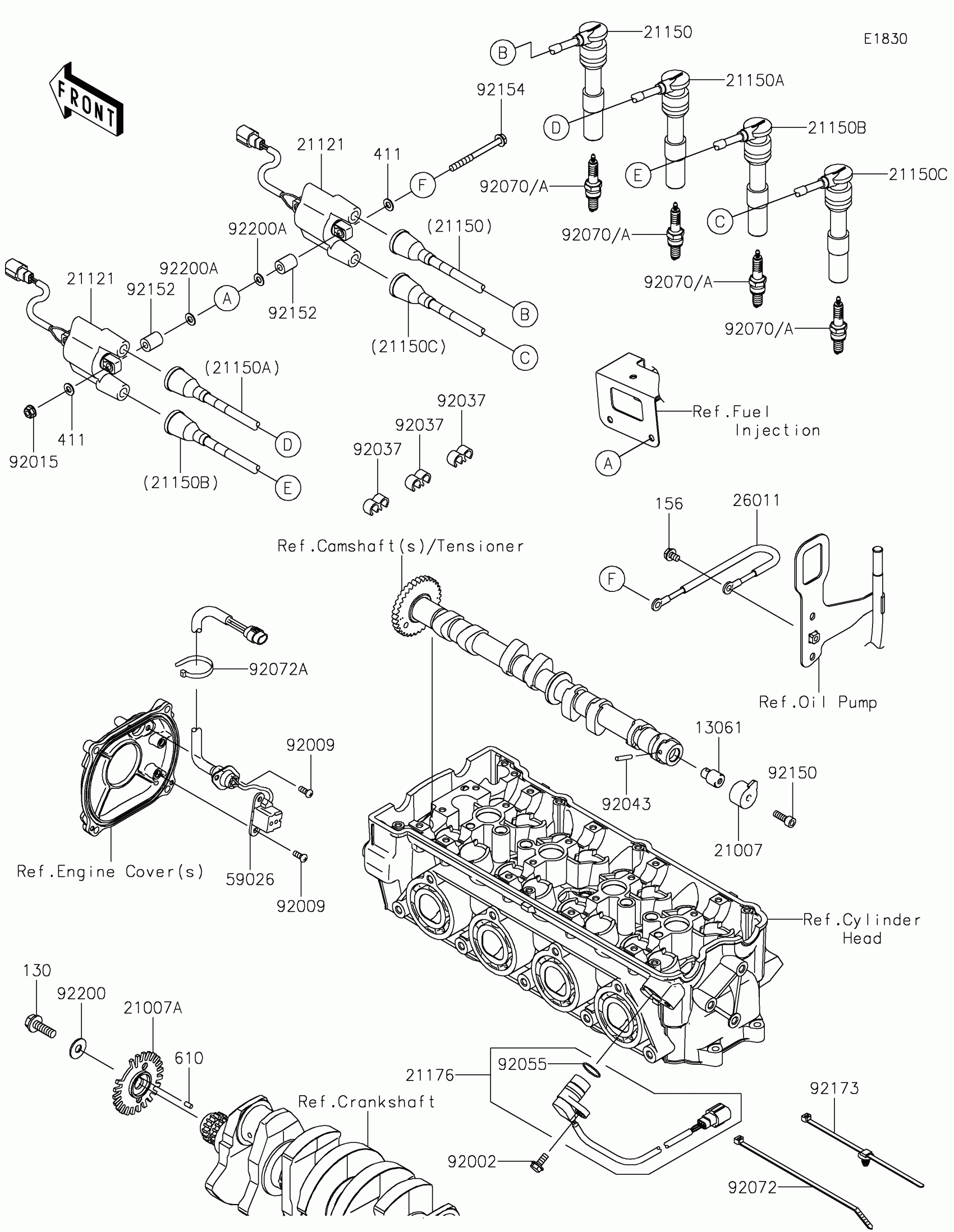

Kawasaki STX 160 Ignition System Diagram

BOSS,CAM SENSOR

ROTOR,EX CAM

ROTOR,PULSING

COIL-IGNITION

CORD-ASSY,#1,L=340

CORD-ASSY,#2,L=450

CORD-ASSY,#3,L=540

CORD-ASSY,#4,L=600

SENSOR

WIRE-LEAD

COIL-PULSING

BOLT,6X16

SCREW,5X12

NUT,LOCK,6MM

CLAMP,HOSE

PIN

RING-O

PLUG-SPARK,CR9EKB(NGK)

PLUG-SPARK,CR8EKB(NGK)

BAND,L=188.85

BAND,L=152

BOLT,6X18

COLLAR

BOLT,6X70

CLAMP

WASHER,8.0X22.0X1.5

WASHER,6.5X14X1

BOLT-FLANGED,8X25

BOLT-WP,6X10

WASHER-PLAIN,6MM

ROLLER,4X8
