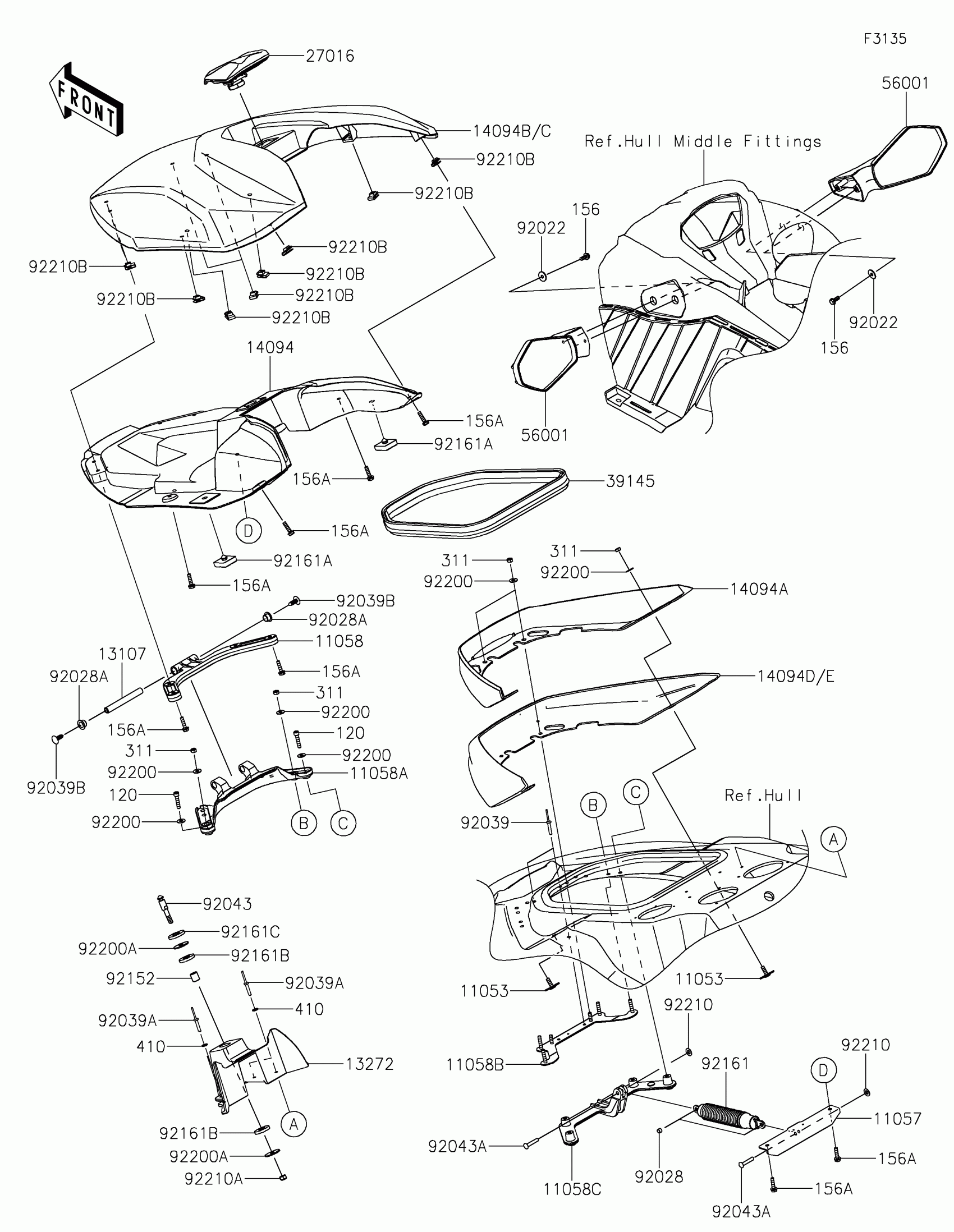

Kawasaki STX 160 Hull Front Fittings Diagram
#
11053
BRACKET
11053-3776
$9.48
11057
BRACKET
11057-7383
$39.79
11058
BRACKET,HINGE,UPP
11058-2112
$124.28
11058A
BRACKET,HINGE,LWR
11058-2113
$218.05
11058B
BRACKET,FR
11058-2114
$99.45
11058C
BRACKET,HINGE,LWR
11058-2115
$154.43
13107
SHAFT,FRONT HINGE
13107-3802
$24.78
13272
PLATE,FR METER COVER
13272-7027
$8.97
14094
COVER,FR HATCH,INNER
14094-0235
$135.65
14094A
COVER,TRIM,LWR
14094-0237
$18.68
14094B
COVER,FR HATCH,S.YELLOW
14094-0243-40E
$131.89
14094C
COVER,FR HATCH,S.RED
14094-0243-6B
$131.89
14094D
COVER,TRIM,UPP,S.BLUE
14094-0244-75N
$101.56
14094E
COVER,TRIM,UPP,S.BLACK
14094-0244-839
$101.56
27016
LOCK-ASSY,HATCH
27016-0101
$97.85
39145
TRIM-SEAL,FR,HATCH
39145-0718
$112.65
56001
MIRROR-ASSY
56001-0410
$99.92
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92028
BUSHING
92028-3765
$3.29
92028A
BUSHING
92028-3770
$2.71
92039
RIVET
92039-3733
$2.58
92039A
RIVET
92039-3771
$0.95
92039B
RIVET
92039-3788
$3.39
92043
PIN
92043-0754
$20.32
92043A
PIN,6X33
92043-3748
$11.20
92152
COLLAR,8.2X14X16.2
92152-0979
$13.49
92161
DAMPER,HATCH
92161-1581
$189.92
92161A
DAMPER,10X34X10
92161-1920
$1.59
92161B
DAMPER
92161-3739
$6.18
92161C
DAMPER
92161-3747
$5.12
92200
WASHER,6.5X16X1.0
92200-3712
$3.73
92200A
WASHER,8.5X32X2
92200-3786
$5.79
92210
NUT,SPEED,6MM
92210-3739
$1.86
92210A
NUT,LOCK,8MM
92210-3742
$6.57
92210B
NUT,6MM
92210-3768
$5.79
120
BOLT-SOCKET,6X30
120R0630
$4.39
156
BOLT-WP,6X16
156R0616
$3.65
156A
BOLT-WP,6X25
156R0625
$4.76
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
