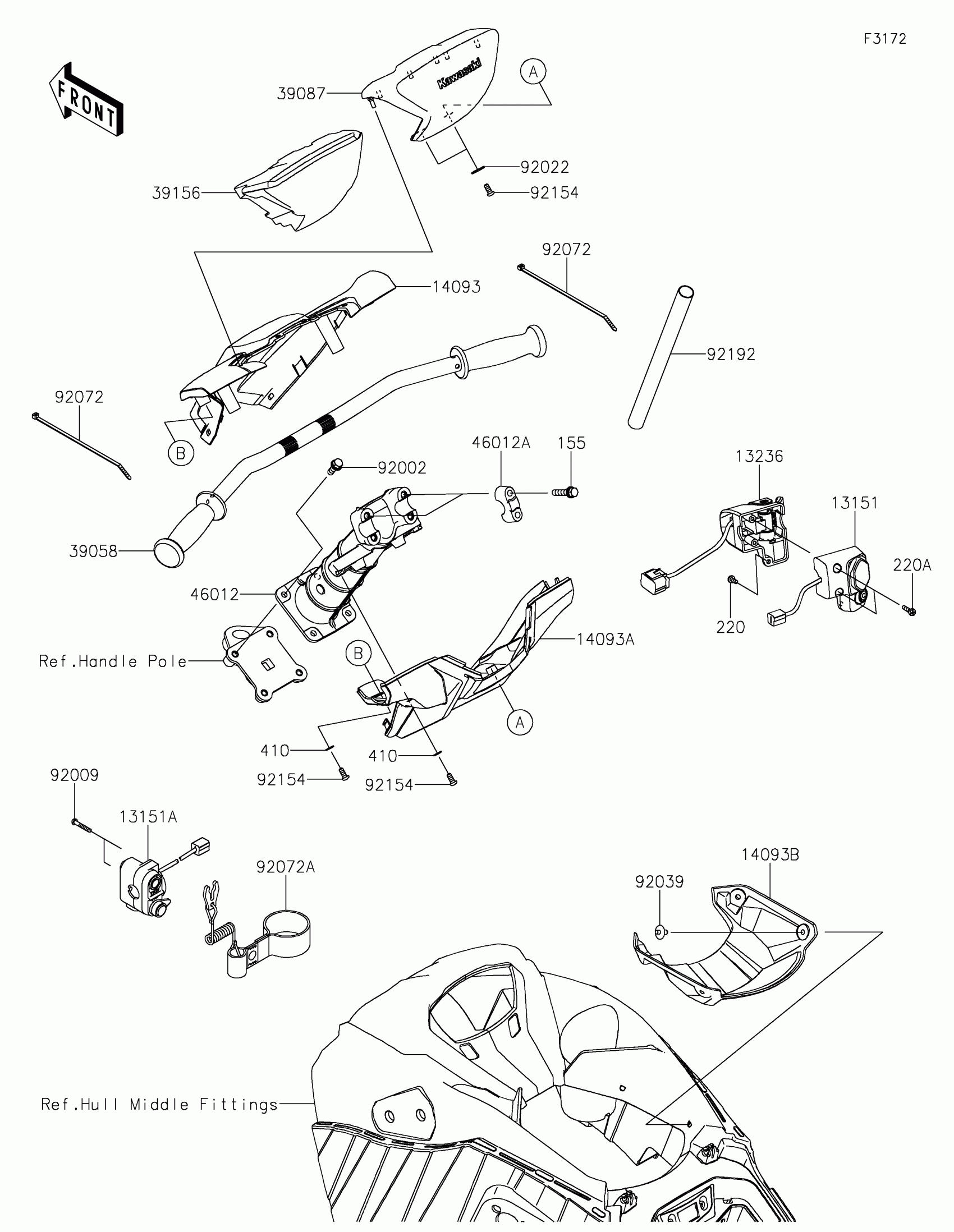

Kawasaki STX 160 Handlebar Diagram
#
Description
Price
13151
SWITCH-COMP
13151-0586
$178.05
13151A
SWITCH-COMP,STOP&START
13151-3722
$420.13
13236
LEVER-COMP,THROTTLE
13236-0820
$542.52
14093
COVER,HOLDER,FR
14093-0900
$57.28
14093A
COVER,HOLDER,RR
14093-0901
$57.23
14093B
COVER,HANDLE POLE
14093-1270
$41.84
39058
HANDLE-COMP,F.BLACK
39058-0040-6Z
$184.46
39087
PAD-HANDLE,GRAY
39087-0014-66L
$100.29
39156
PAD,INNER
39156-2457
$30.19
46012
HOLDER-HANDLE
46012-0394
$360.34
46012A
HOLDER-HANDLE,UPP
46012-3720
$16.69
92002
BOLT,8X25
92002-3774
$7.91
92009
SCREW,5X30
92009-3836
$4.18
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92039
RIVET
92039-3785
$4.65
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,TETHER SWITCH
92072-0891
$57.31
92154
BOLT,SOCKET,6X14
92154-3988
$1.37
92192
TUBE,35X37X200
92192-1990
$8.66
155
BOLT-WSP-SMALL,8X40
155R0840
$3.90
220
SCREW-PAN-CROS,5X14
220R0514
$3.74
220A
SCREW-PAN-CROS,5X25
220R0525
$5.57
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
