Description

Price

11058

BRACKET

11058-2297

$8.71

11061

GASKET,FUEL-FILLER

11061-1399

$10.32

13272

PLATE,FUEL-GUARD

13272-4431

$8.97

49057

VALVE-RELIEF

49057-0002

$64.85

51004

TANK-FUEL

51004-0045

$342.37

51049

CAP-TANK,FUEL

51049-0713

$74.86

59071

JOINT

59071-3736

$12.96

59231

FILLER,FUEL TANK

59231-0783

$7.75

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92022

WASHER

92022-563

$1.13

92039

RIVET

92039-3794

$7.71

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92071

GROMMET

92071-3841

$7.31

92072

BAND

92072-3845

$18.53

92072A

BAND

92072-3850

$48.63

92072B

BAND,L=100.08

92072-3882

$2.02

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92170

CLAMP

92170-1764

$11.48

92192

TUBE,5.8X11X100

92192-1795

$18.56

92192A

TUBE,FUEL TANK-FILLER

92192-2753

$203.12

92192B

TUBE,5.8X10.8X660

92192-2819

$63.74

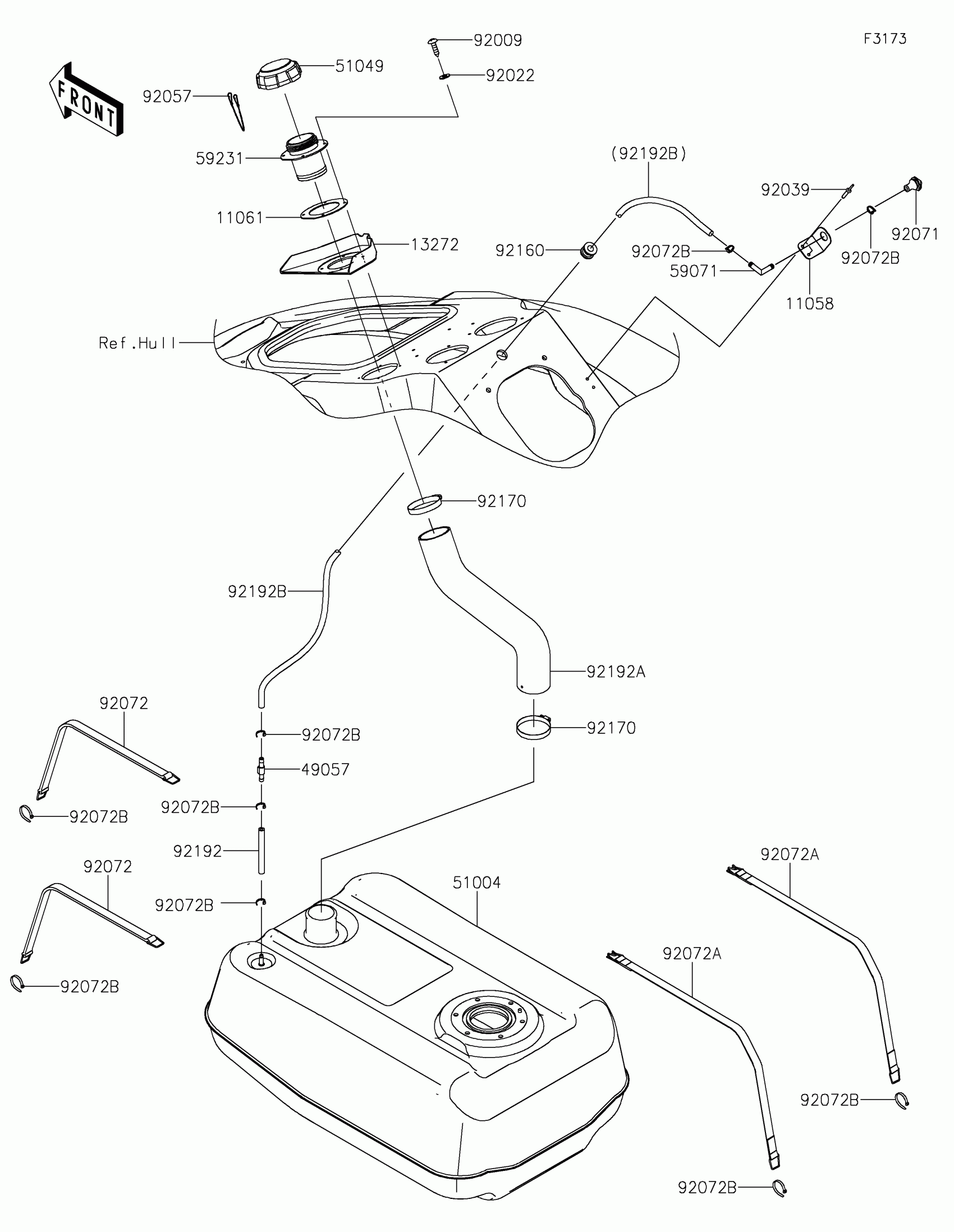

Kawasaki STX 160 Fuel Tank Diagram

BRACKET

GASKET,FUEL-FILLER

PLATE,FUEL-GUARD

VALVE-RELIEF

TANK-FUEL

CAP-TANK,FUEL

JOINT

FILLER,FUEL TANK

SCREW,TAPPING,4X16

WASHER

RIVET

CHAIN,COVER,L=100

GROMMET

BAND

BAND

BAND,L=100.08

DAMPER,MUFFLER MOUNT

CLAMP

TUBE,5.8X11X100

TUBE,FUEL TANK-FILLER

TUBE,5.8X10.8X660
