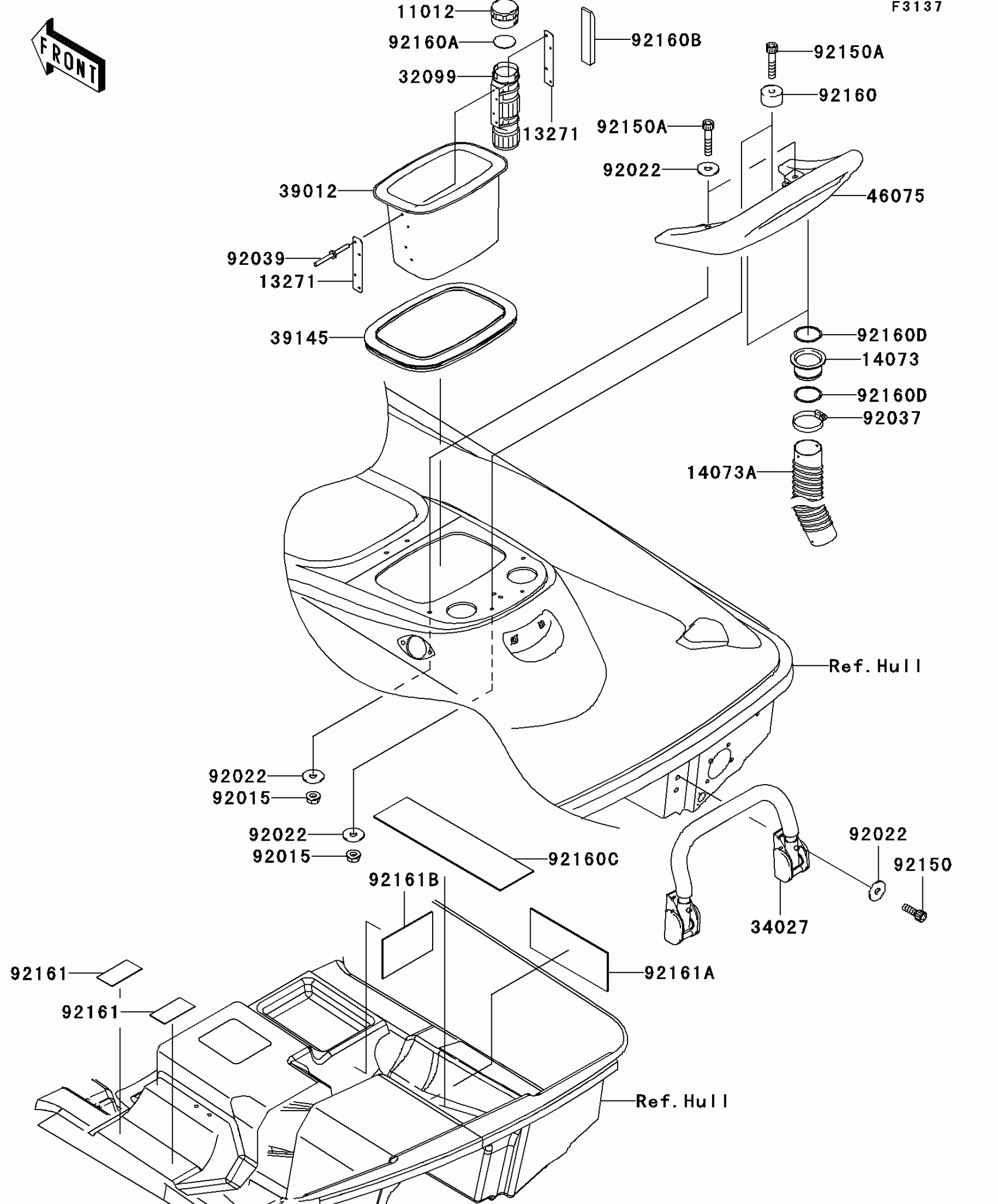

Kawasaki STX-15F Hull Rear Fittings Diagram

Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$7.83

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

14073

DUCT

14073-3798

$10.42

14073A

DUCT

14073-3799

$15.15

32099

CASE,FIRE EXTINGUISHER

32099-3769

$14.60

34027

STEP-ASSY

34027-3707

$418.51

39012

CASE-STORAGE,RR

39012-3727

Unavailable

39145

TRIM-SEAL,REAR STORAGE CASE

39145-3783

$36.73

46075

GRIP,RR,F.BLACK

46075-3755-6Z

$235.82

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-3738

$5.47

92039

RIVET

92039-3783

$6.15

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X30

92150-3822

$3.29

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER

92160-3814

$7.76

92160B

DAMPER

92160-3821

$8.63

92160C

DAMPER

92160-3839

$20.73

92160D

DAMPER

92160-3910

$4.29

92161

DAMPER

92161-3728

$4.92

92161A

DAMPER

92161-3744

$17.31

92161B

DAMPER

92161-3745

$13.71
