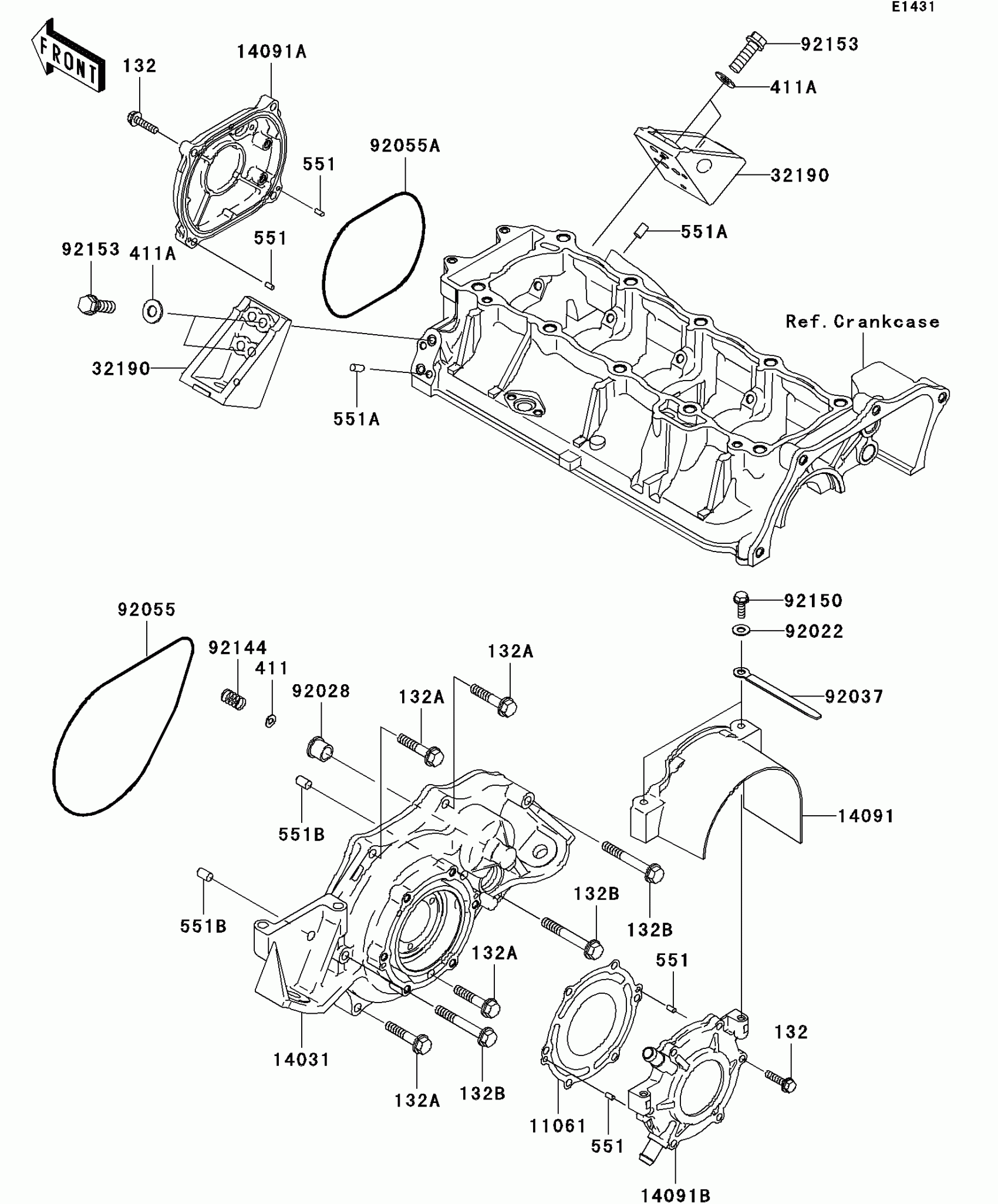

Kawasaki STX-15F Engine Cover(s)(A6F) Diagram

Description

Price

11061

GASKET,OUTPUT COVER

11061-3709

Unavailable

14031

COVER-GENERATOR

14031-3734

$224.20

14091

COVER,COUPLING

14091-3749

$24.52

14091A

COVER,PULS

14091-3763

$91.57

14091B

COVER,OUTPUT

14091-3776

Unavailable

32190

BRACKET-ENGINE

32190-3703

$39.06

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92028

BUSHING

92028-3718

$9.43

92037

CLAMP,L=100

92037-3736

$5.52

92055

RING-O,196X3

92055-3761

$15.78

92055A

RING-O,120X3

92055-3762

$11.16

92144

SPRING

92144-3728

$5.29

92150

BOLT,6X18

92150-3729

$4.69

92153

BOLT,FLANGED,8X30

92153-3722

$2.55

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$5.39

132A

BOLT-FLANGED-SMALL,8X40

132BD0840

$5.59

132B

BOLT-FLANGED-SMALL,8X60

132BD0860

$3.13

411

WASHER-PLAIN,5MM

411S0500

$0.94

411A

WASHER-PLAIN,8MM

411S0800

$3.09

551

PIN-DOWEL

551R0408

$5.38

551A

PIN-DOWEL

551R0612

$4.69

551B

PIN-DOWEL

551R0812

$7.91
