Description

Price

11065

CAP,F.BLACK

11065-3707-6Z

$4.96

39027

BUMPER-FRONT,F.BLACK

39027-3741-6Z

$223.50

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

$50.51

53004

MAT,DECK,FR,LH

53004-3852

Unavailable

53004A

MAT,DECK,FR,RH

53004-3853

Unavailable

53004B

MAT,DECK,MIDDLE,LH

53004-3854

Unavailable

53004C

MAT,DECK,MIDDLE,RH

53004-3855

$69.04

53004D

MAT,DECK,RR,LH

53004-3856

Unavailable

53004E

MAT,DECK,RR,RH

53004-3857

Unavailable

53004F

MAT,DECK,FR,LH

53004-3882

$36.72

53004G

MAT,DECK,FR,RH

53004-3883

$36.72

59201

BUMPER,RR,F.BLACK

59201-3788-6Z

$47.55

59201A

BUMPER,SIDE,F.BLACK

59201-3789-6Z

$162.44

59504

INSERT-BOAT FENDER,SIDE,BLACK

59504-3731-6Z

$88.75

59504A

INSERT-BOAT FENDER,RR,F.BLACK

59504-3732-6Z

$36.77

92009

SCREW,5X30

92009-3834

$9.05

92039

RIVET

92039-3771

$0.95

92039A

RIVET

92039-3773

$1.08

311

NUT-HEX,5MM

311R0500

$1.75

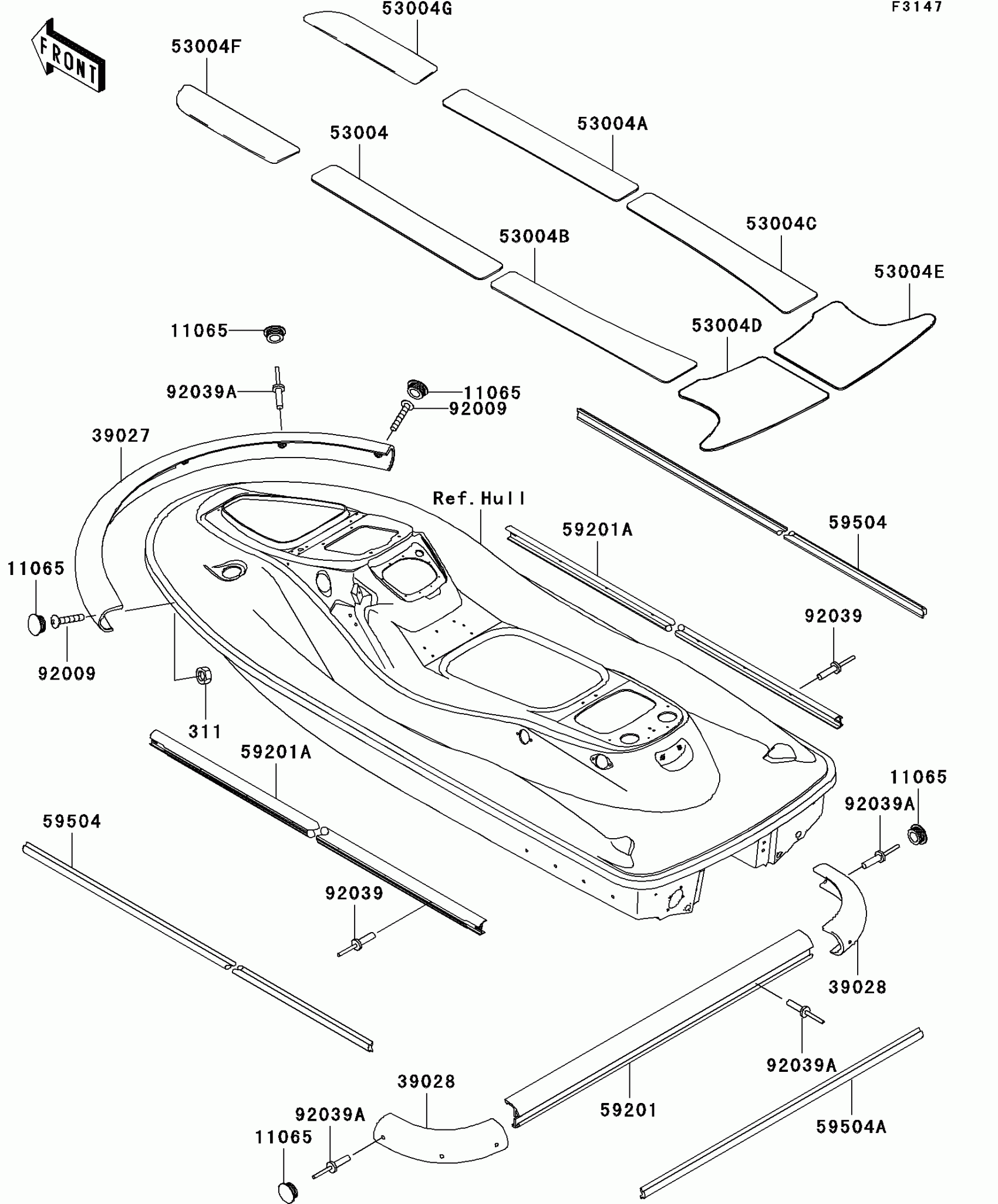

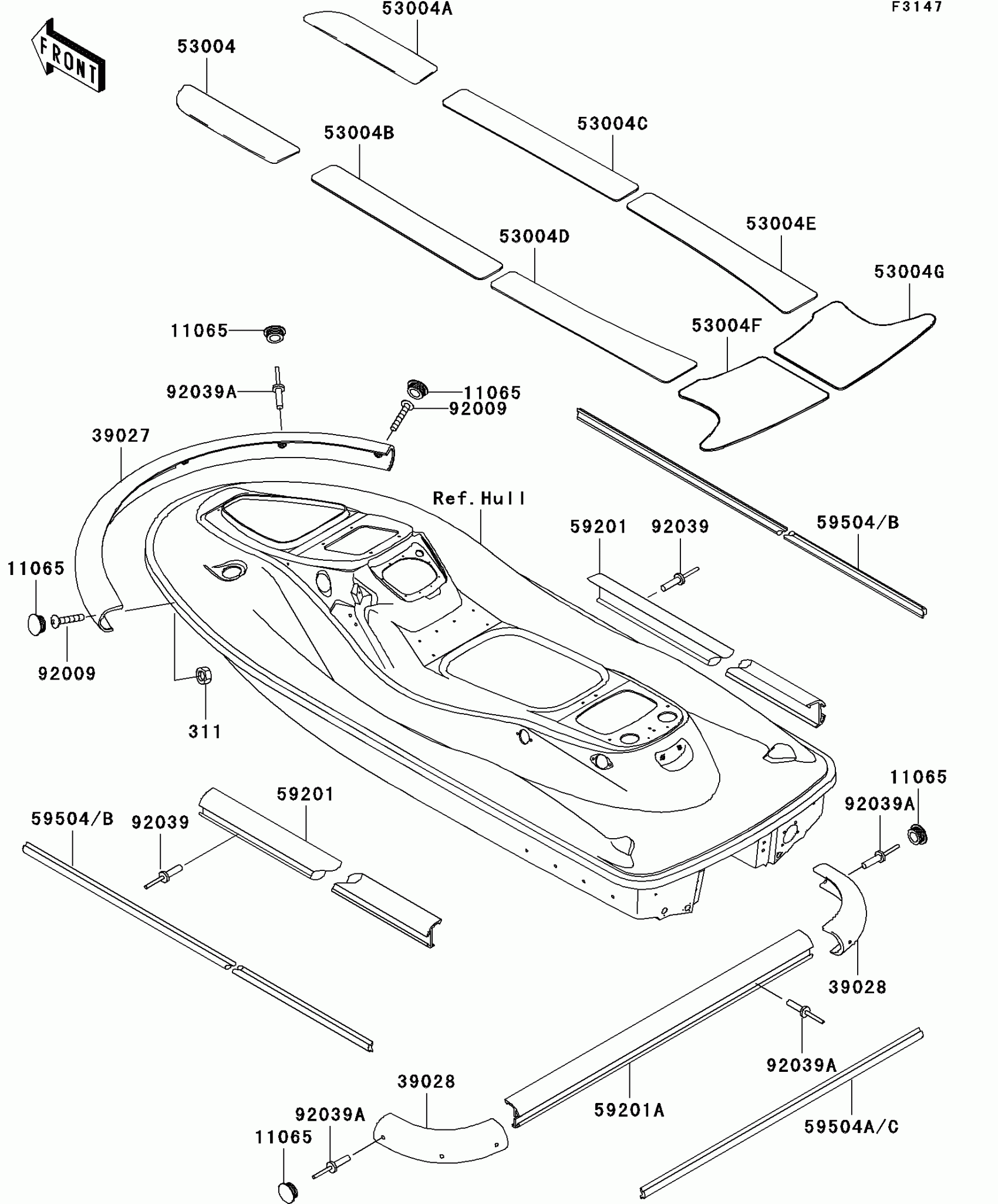

Kawasaki STX-12F Pads Diagram

CAP,F.BLACK

BUMPER-FRONT,F.BLACK

BUMPER-REAR,CORNER,F.BLACK

MAT,DECK,FR,LH

MAT,DECK,FR,RH

MAT,DECK,MIDDLE,LH

MAT,DECK,MIDDLE,RH

MAT,DECK,RR,LH

MAT,DECK,RR,RH

MAT,DECK,FR,LH

MAT,DECK,FR,RH

BUMPER,RR,F.BLACK

BUMPER,SIDE,F.BLACK

INSERT-BOAT FENDER,SIDE,BLACK

INSERT-BOAT FENDER,RR,F.BLACK

SCREW,5X30

RIVET

RIVET

NUT-HEX,5MM
