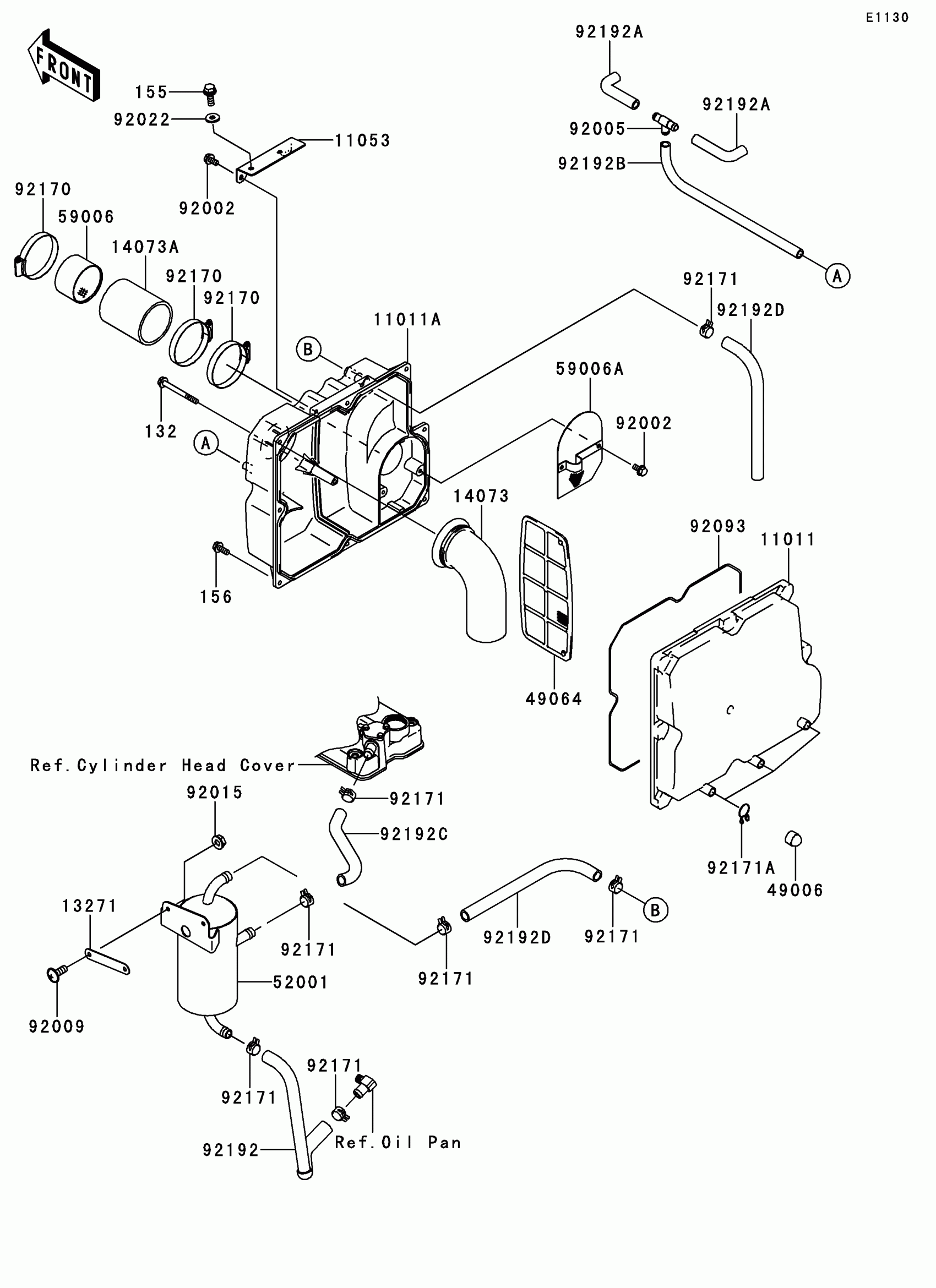

Kawasaki STX-12F Intake Silencer Diagram
#
Description
Price
11011
CASE-AIR FILTER,RR
11011-3704
$115.63
11011A
CASE-AIR FILTER,FR
11011-3706
$105.09
11053
BRACKET
11053-3725
$29.21
13271
PLATE
13271-3880
$5.00
14073
DUCT,AIR INLET
14073-3794
$17.65
14073A
DUCT,AIR FILTER-THOROTTLE
14073-3795
$5.59
49006
BOOT,DRAIN
49006-3718
$6.62
49064
FILTER-AIR
49064-3702
$23.30
52001
TANK-OIL
52001-3738
$73.81
59006
ARRESTER-FLAME
59006-0019
$304.03
59006A
ARRESTER-FLAME
59006-3720
$43.85
92002
BOLT,6X12
92002-3763
$4.69
92005
FITTING
92005-3745
$8.53
92009
SCREW,6X20
92009-3870
$4.37
92015
NUT,6MM
92015-3767
$4.69
92022
WASHER,8.2X18X1.5
92022-3743
$4.22
92093
SEAL
92093-3766
$3.40
92170
CLAMP
92170-3764
$10.35
92171
CLAMP,TUBE
92171-3710
Unavailable
92171A
CLAMP,BOOT
92171-3711
$3.87
92192
TUBE,SEPARATOR-OILPAN
92192-3701
$34.65
92192A
TUBE
92192-3717
$14.89
92192B
TUBE,ASV-AIR CASE
92192-3718
$26.09
92192C
TUBE,HEAD-SEPARATOR
92192-3719
$9.13
92192D
TUBE,BLOWBY
92192-3725
$25.34
132
BOLT-FLANGED-SMALL,6X60
132Y0660
$4.89
155
BOLT-WSP-SMALL,8X20
155R0820
$6.41
156
BOLT-WP,6X16
156R0616
$3.65
