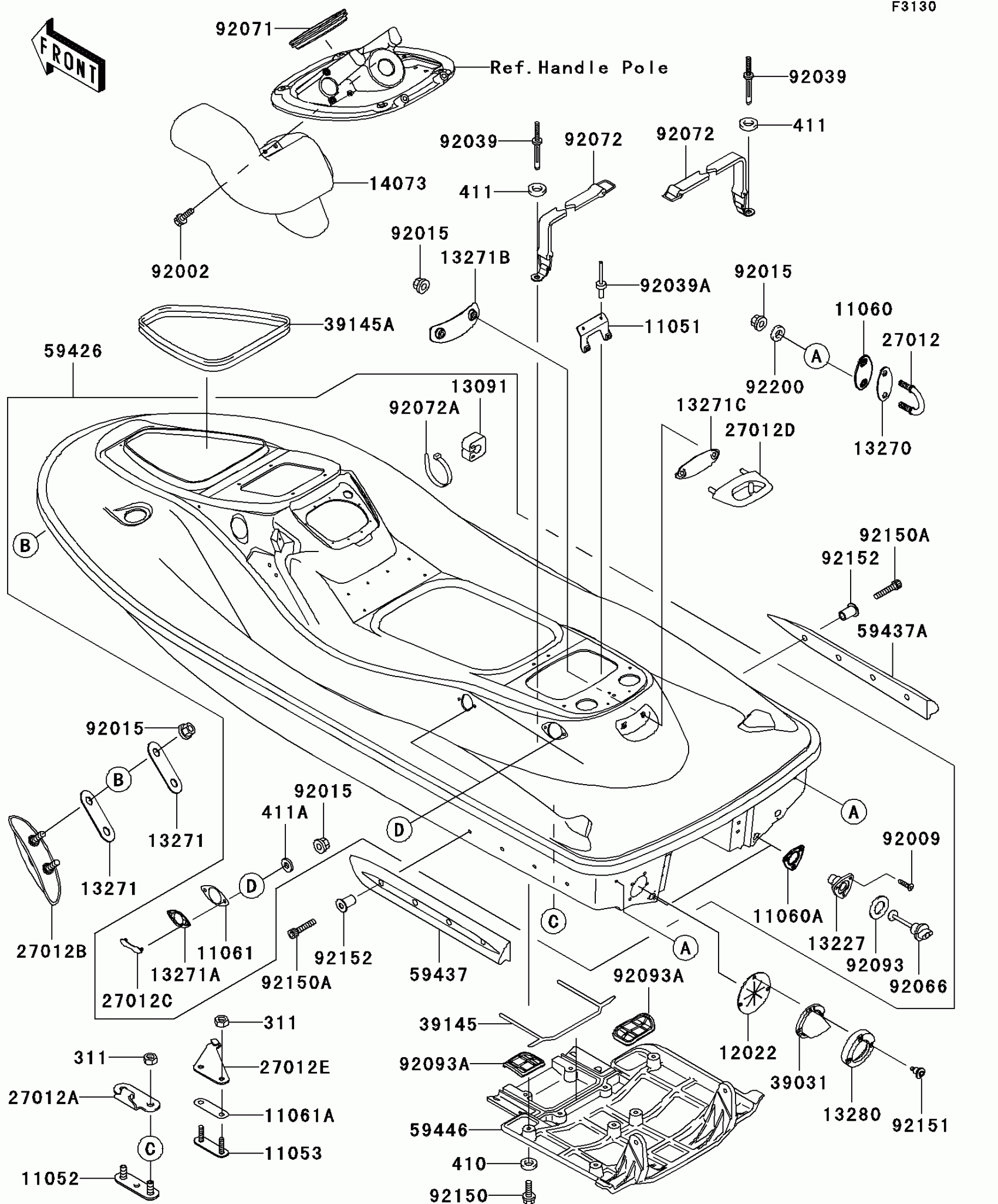

Find the part on the Hull diagram for your 2004 Kawasaki STX-12F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki STX-12F Hull Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,BREATHER-BILGE

11051-3802

1
Out of stock

11052

BRACKET,RR DUCT

11052-3712

1
Out of stock

11053

BRACKET

11053-3746

1

$18.76

In stock

11060

GASKET,U HOOK,RR

11060-3800

1
Out of stock

11060A

GASKET,DRAIN PLUG

11060-3801

1
Out of stock

11061

GASKET,CARGO HOOK

11061-3730

1
Out of stock

11061A

GASKET

11061-3731

1
Out of stock

12022

VALVE-REED

12022-3712

1
Out of stock

13091

HOLDER

13091-3780

1

$8.54

In stock

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

1
Out of stock

13270

PLATE

13270-3860

1

$8.20

In stock

13271

PLATE

13271-3724

1

$3.85

In stock

13271A

1

$7.30

In stock

13271B

PLATE,REAR TOWING HOOK

13271-3859

1
Out of stock

13271C

PLATE

13271-3889

1

$11.44

In stock

13280

1

$25.92

In stock

14073

DUCT

14073-3781

1

$47.31

In stock

27012

HOOK

27012-3797

1
Out of stock

27012A

HOOK

27012-3816

1
Out of stock

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

1
Out of stock

27012C

HOOK,CARGO NET,G.SILVER

27012-3828-F2

1
Out of stock

27012D

HOOK,REAR TOWING,F.BLACK

27012-3836-6Z

1
Out of stock

27012E

HOOK,WATER MUFFLER,RH

27012-3849

1
Out of stock

39031

CAP-END

39031-3708

1

$47.84

In stock

39145

1

$30.81

In stock

39145A

TRIM-SEAL,L=1412

39145-3787

1

$111.39

In stock

59426

HULL-COMP,J.WHITE

59426-3930-8C

1
Out of stock

59437

STABILIZER,LH,F.BLACK

59437-3733-6Z

1
Out of stock

59437A

STABILIZER,RH,F.BLACK

59437-3734-6Z

1
Out of stock

59446

COVER-JET PUMP

59446-3752

1
Out of stock

92002

BOLT,6X20

92002-3755

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92015

NUT,FLANGED,8MM

92015-3709

1
Out of stock

92039

RIVET

92039-3741

1
Out of stock

92039A

RIVET

92039-3755

1
Out of stock

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

1
Out of stock

92071

GROMMET

92071-3812

1
Out of stock

92072

BAND,314X18

92072-3814

1
Out of stock

92072A

BAND,L=203.2

92072-3867

1
Out of stock

92093

SEAL

92093-3720

1
Out of stock

92093A

SEAL

92093-3765

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-3775

1
Out of stock

92150A

BOLT,SOCKET,6X30

92150-3822

1
Out of stock

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

1
Out of stock

92152

COLLAR

92152-3715

1
Out of stock

92200

WASHER

92200-3779

1
Out of stock

311

NUT-HEX,6MM

311R0600

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

411

WASHER-PLAIN,5MM

411S0500

1
Out of stock

411A

WASHER-PLAIN,8MM

411S0800

1
Out of stock
