2004 Kawasaki STX-12F Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2004 Kawasaki STX-12F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

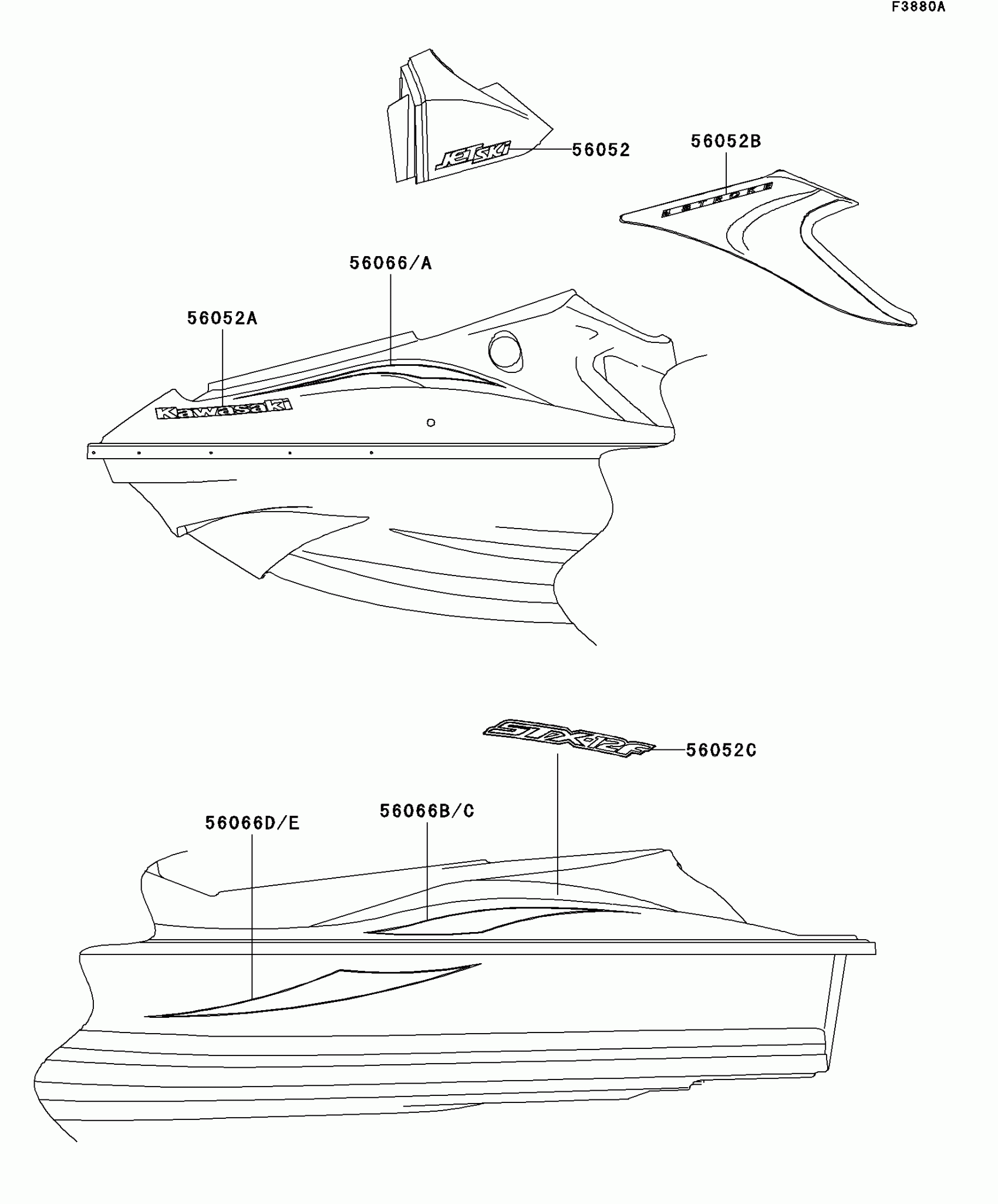

2004 Kawasaki STX-12F Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56052

MARK,HANDLE COVER,JET SKI

56052-3816

1
Out of stock

56052A

MARK,DECK,KAWASAKI

56052-3817

1
Out of stock

56052B

MARK,SIDE COVER,4 STROKE

56052-3818

1
Out of stock

56052C

MARK,DECK,STX-12F

56052-3819

1
Out of stock

56066

PATTERN,DECK,FR,LH

56066-3778

1
Out of stock

56066A

PATTERN,DECK,FR,RH

56066-3779

1
Out of stock

56066B

PATTERN,DECK,RR,LH

56066-3780

1
Out of stock

56066C

PATTERN,DECK,RR,RH

56066-3781

1
Out of stock

56066D

PATTERN,HULL,LH

56066-3782

1
Out of stock

56066E

PATTERN,HULL,RH

56066-3783

1
Out of stock
