Description

Price

11051

BRACKET

11051-3766

$30.55

11053

BRACKET

11053-3752

$47.68

13271

PLATE

13271-3897

$6.93

14073

DUCT,FR

14073-3796

$138.01

14091

COVER

14091-3707

$19.41

14091A

COVER,FRONT DUCT

14091-3722

Unavailable

14091B

COVER,HATCH,N.BLUE

14091-3753-TK

Unavailable

14091C

COVER,HATCH,P.C.GRAY

14091-3753-VK

Unavailable

27012

HOOK

27012-3841

$29.21

27016

LOCK-ASSY

27016-3757

Unavailable

35063

STAY,MIRROR

35063-3703

$84.85

39145

TRIM-SEAL,L=1380

39145-3773

$77.78

53009

HINGE,HATCH COVER

53009-3725

$117.70

56001

MIRROR-ASSY,LH,M.N.BLUE

56001-3719-C6

$236.19

56001A

MIRROR-ASSY,LH,P.C.GRAY

56001-3719-SL

Unavailable

56001B

MIRROR-ASSY,RH,M.N.BLUE

56001-3720-C6

$214.47

56001C

MIRROR-ASSY,RH,P.C.GRAY

56001-3720-SL

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92015

NUT,LOCK,6MM

92015-3766

$5.91

92015A

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92028

BUSHING

92028-3765

$3.29

92039

RIVET

92039-3714

$0.95

92039A

RIVET,4.8MM

92039-3719

$6.22

92043

PIN

92043-3757

Unavailable

92143

COLLAR,8.2X14X11.2

92143-3724

$13.56

92150

BOLT,6X18

92150-3729

$4.69

92161

DAMPER

92161-3705

Unavailable

92161A

DAMPER

92161-3728

$5.64

92161B

DAMPER

92161-3739

$6.18

92200

WASHER,8.5X32X2

92200-3786

$5.79

92210

NUT,LOCK,8MM

92210-3742

$6.57

411

WASHER-PLAIN,5MM

411S0500

$0.94

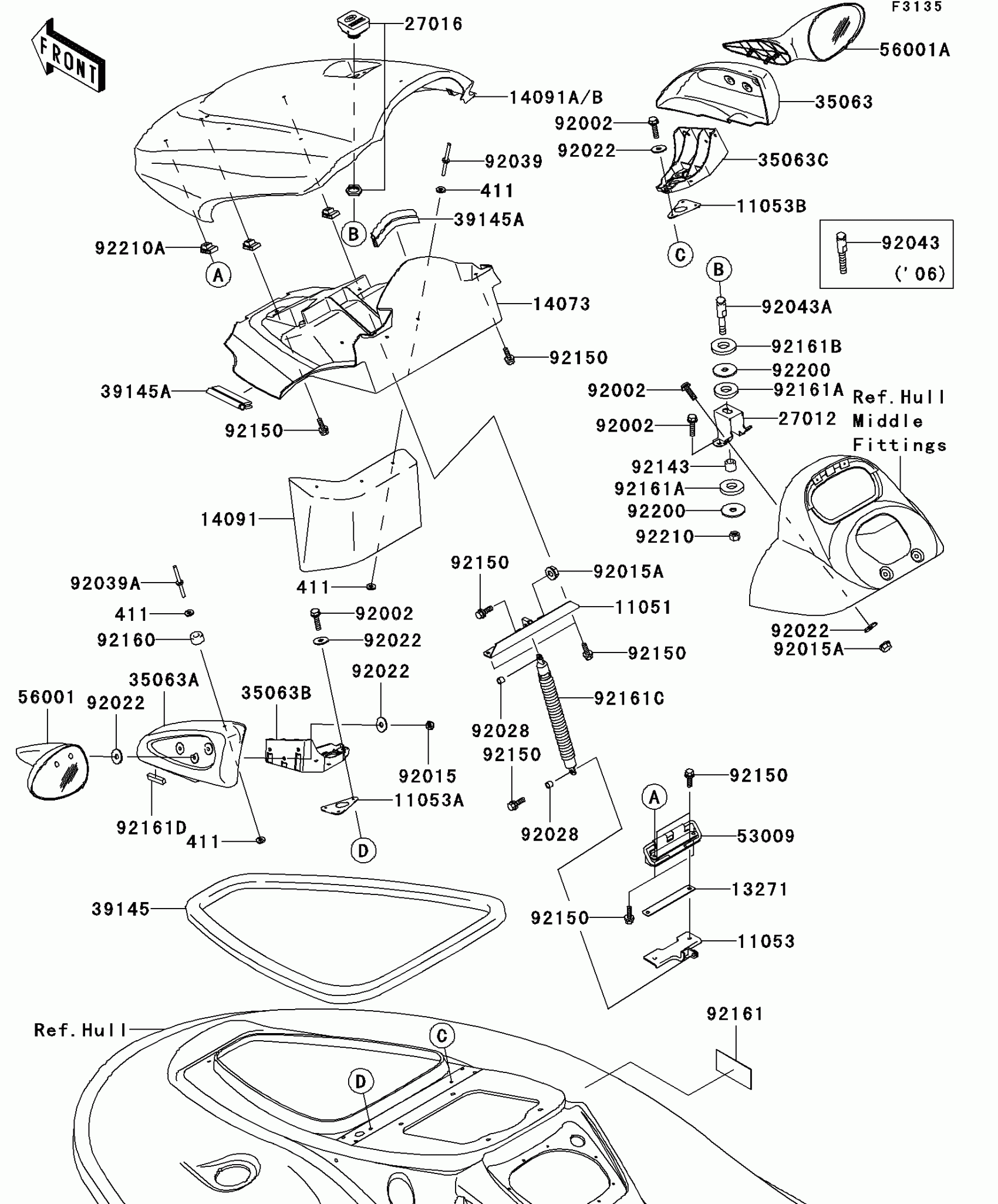

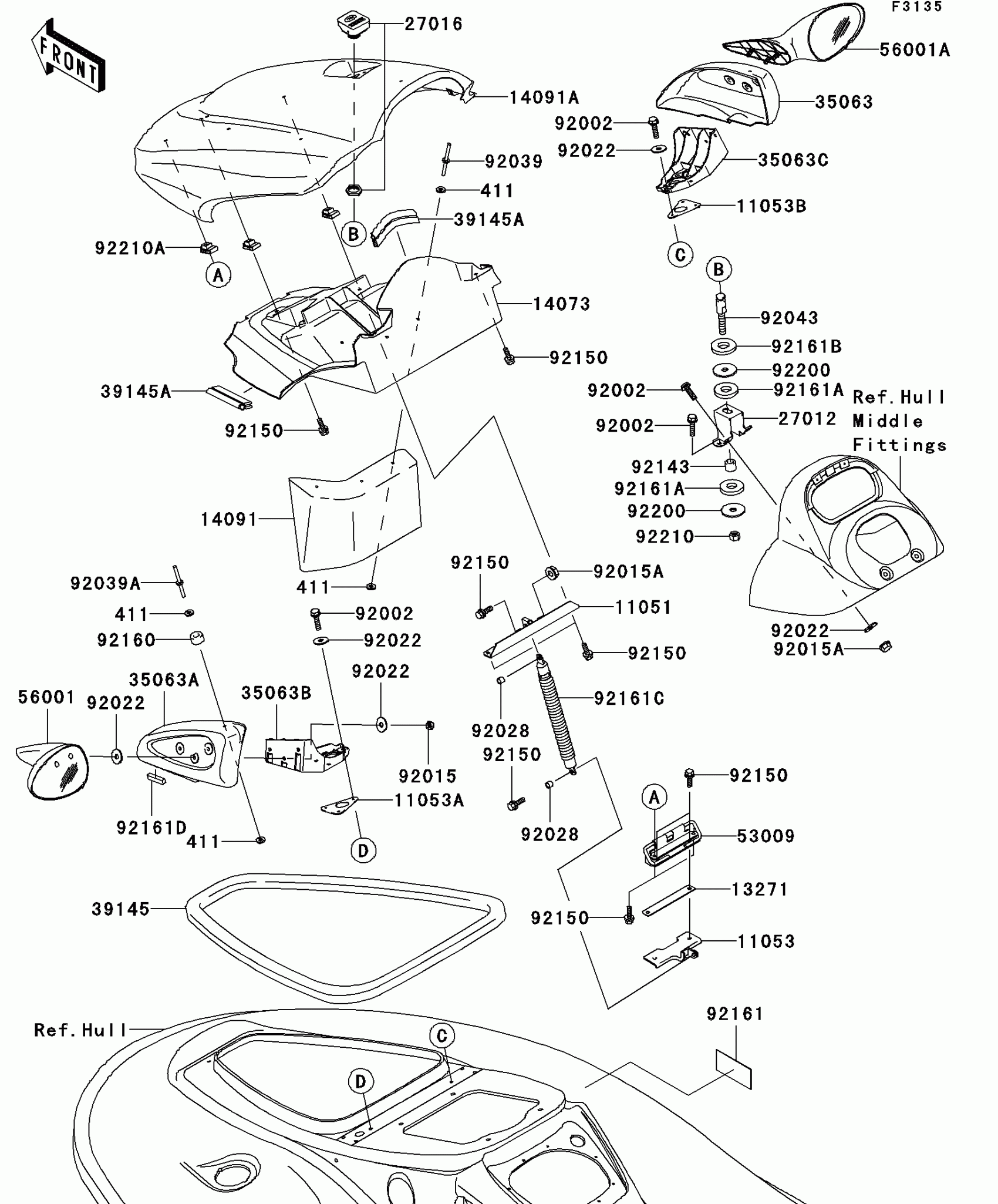

Kawasaki STX-12F Hull Front Fittings Diagram

BRACKET

BRACKET

PLATE

DUCT,FR

COVER

COVER,FRONT DUCT

COVER,HATCH,N.BLUE

COVER,HATCH,P.C.GRAY

HOOK

LOCK-ASSY

STAY,MIRROR

TRIM-SEAL,L=1380

HINGE,HATCH COVER

MIRROR-ASSY,LH,M.N.BLUE

MIRROR-ASSY,LH,P.C.GRAY

MIRROR-ASSY,RH,M.N.BLUE

MIRROR-ASSY,RH,P.C.GRAY

BOLT,6X25

NUT,LOCK,6MM

NUT,6MM

WASHER,6.5X20X1.5

BUSHING

RIVET

RIVET,4.8MM

PIN

COLLAR,8.2X14X11.2

BOLT,6X18

DAMPER

DAMPER

DAMPER

WASHER,8.5X32X2

NUT,LOCK,8MM

WASHER-PLAIN,5MM
