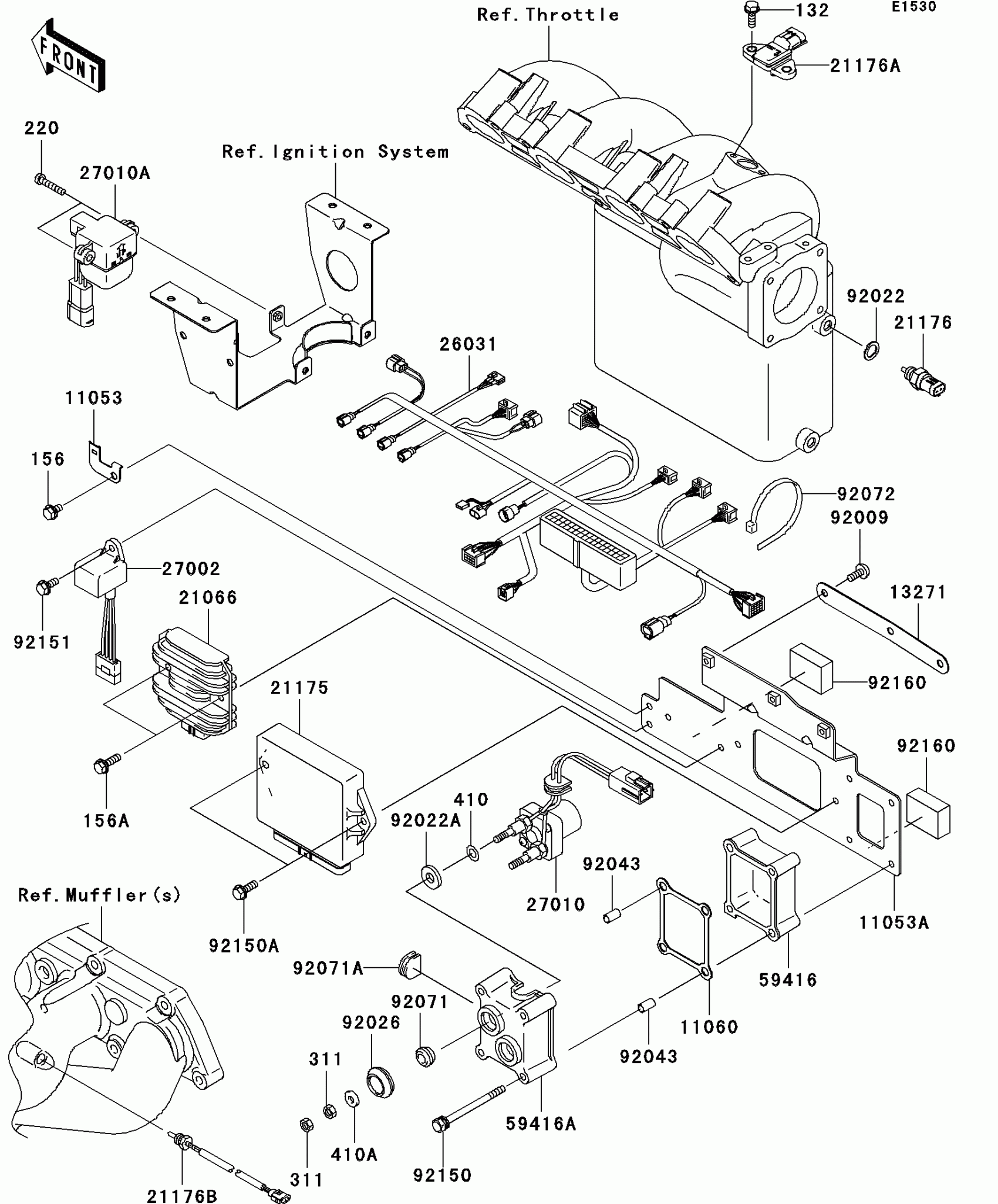

Kawasaki STX-12F Fuel Injection(JT1200-B1) Diagram

#

Description
Price

11053

BRACKET,FUSE

11053-3724

$7.90

11053A

BRACKET,SWITCH

11053-3753

$135.02

11060

GASKET

11060-3709

$13.41

13271

PLATE

13271-3842

$6.82

21066

REGULATOR-VOLTAGE

21066-3717

$204.70

21175

CONTROL UNIT-ELECTRONIC

21175-3725

$581.80

21176

SENSOR,AIR TEMPERATURE

21176-1086

$68.42

21176A

SENSOR,PRESSURE

21176-3755

$245.34

21176B

SENSOR,TEMP

21176-3758

$133.71

26031

HARNESS

26031-3703

$690.05

27002

RELAY-ASSY

27002-3702

$51.63

27010

SWITCH

27010-3777

$164.03

27010A

SWITCH,SENSOR

27010-3778

Unavailable

59416

CASE-ELECTRIC

59416-3710

$57.71

59416A

CASE-ELECTRIC

59416-3711

$64.25

92009

SCREW,6X15

92009-3830

$3.32

92022

WASHER,12X18X1.0

92022-1211

$3.92

92022A

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92043

PIN

92043-3715

$7.34

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-3837

$3.23

92072

BAND,L=368.3

92072-3872

$1.59

92150

BOLT,6X80

92150-3711

$13.04

92150A

BOLT,6X18

92150-3729

$4.69

92151

BOLT,6X14

92151-3788

$2.34

92160

DAMPER

92160-1184

$9.64

132

BOLT-FLANGED-SMALL,6X18

132Y0618

$3.63

156

BOLT-WP,6X10

156R0610

$2.80

156A

BOLT-WP,6X20

156R0620

$3.65

220

SCREW-PAN-CROS,4X20

220R0420

$2.41

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
