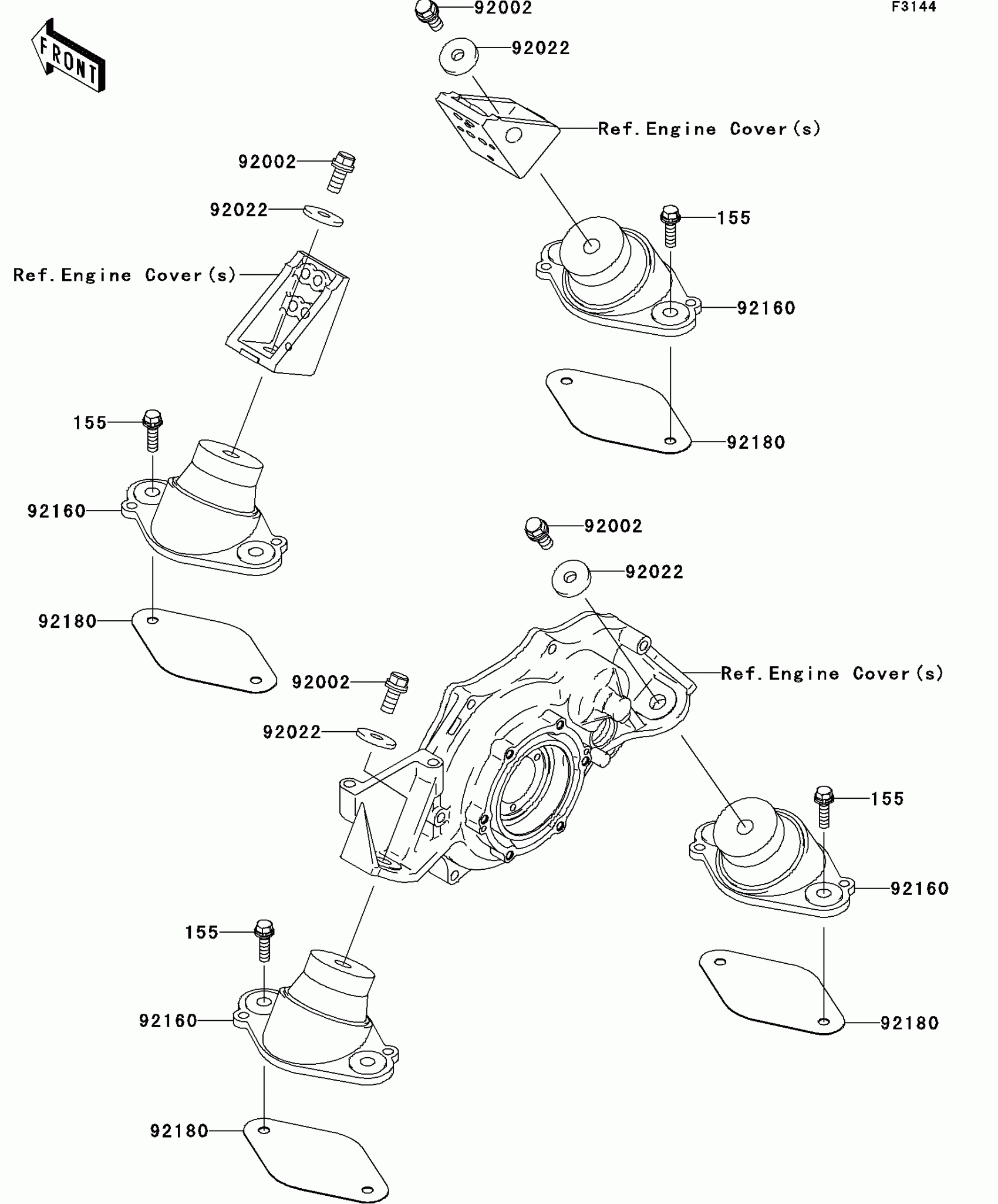

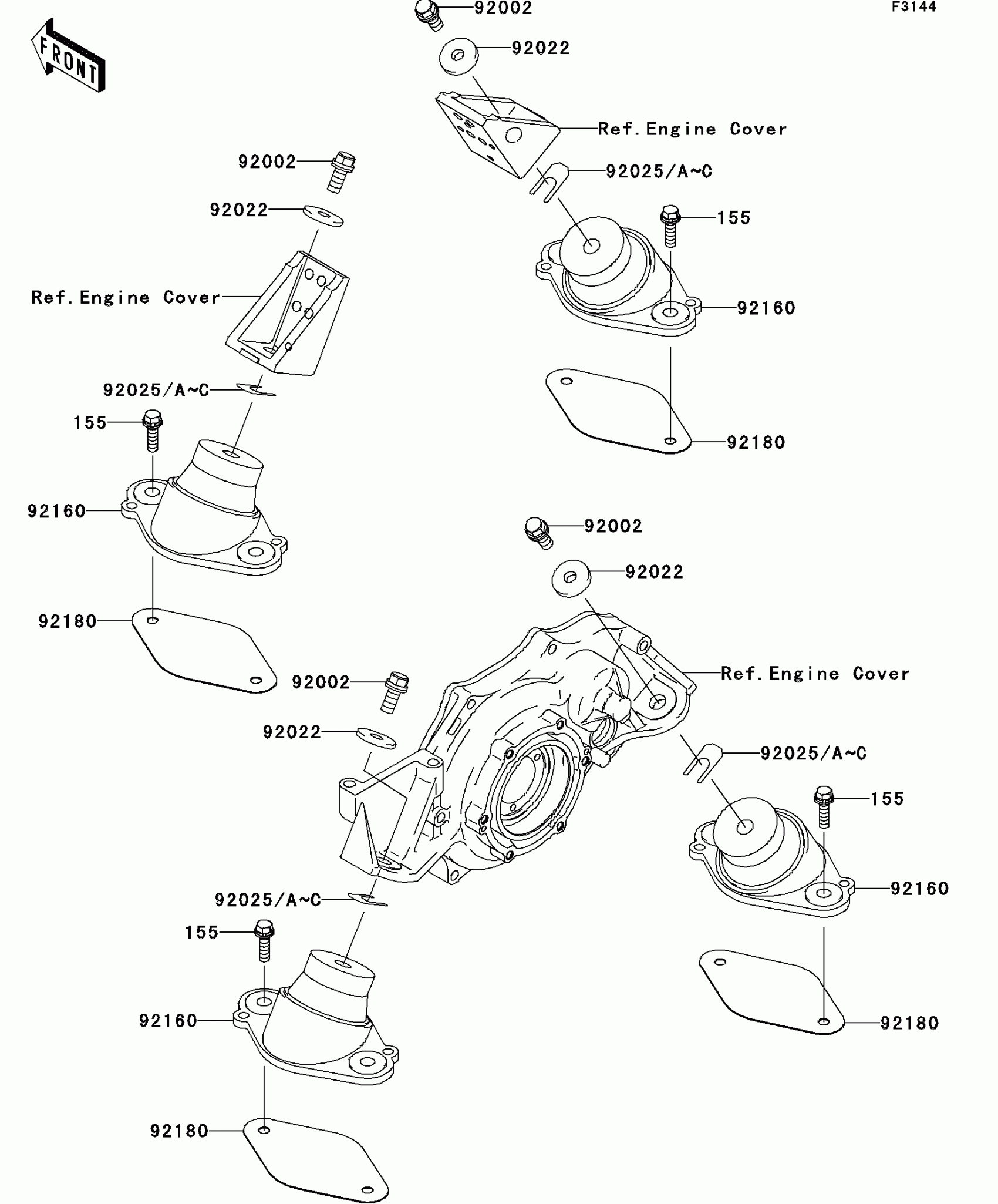

Kawasaki STX-12F Engine Mount Diagram

#

Description

Price

92002

BOLT,10X25

92002-3770

$10.56

92022

WASHER,32X10.5X4

92022-3023

$8.84

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92160

DAMPER,ENGINE MOUNT

92160-3838

$98.59

92180

SHIM,T=1.0

92180-3716

Unavailable

155

BOLT-WSP-SMALL,8X30

155R0830

$6.57
