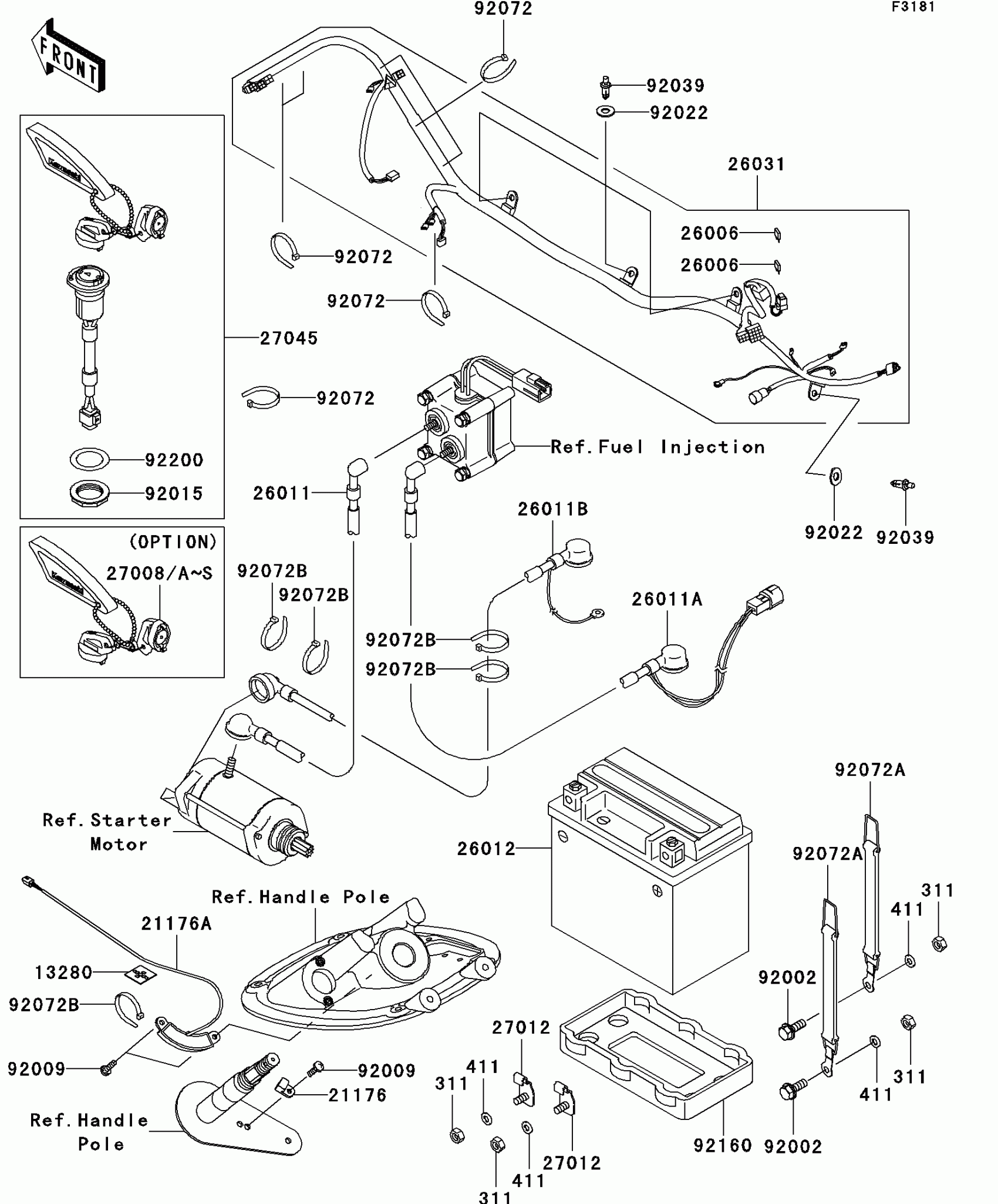

Kawasaki STX-12F Electrical Equipment Diagram

#

Description
Price

13280

HOLDER

13280-3706

$3.77

13280A

HOLDER

13280-3739

Unavailable

21176

SENSOR,MAGNET

21176-3746

$29.40

21176A

SENSOR,HOLE IC

21176-3748

$156.12

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26011

WIRE-LEAD,BATTERY(+)-RELAY

26011-3898

$112.37

26011A

WIRE-LEAD,RELAY-STARTER

26011-3899

$68.76

26011B

WIRE-LEAD,BATTERY(-)-STARTER

26011-3902

$111.70

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3728

$148.91

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

26030

HARNESS,MAIN

26030-3766

$984.43

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3745

$72.13

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3746

$72.13

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3747

$72.13

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3748

$72.13

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3749

$72.13

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3750

$72.13

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3751

$72.13

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3752

$72.13

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3753

$72.13

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3754

$72.13

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3755

$72.13

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3756

$72.13

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3757

$72.13

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3758

$72.13

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3759

$72.13

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3760

$72.13

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3761

$72.13

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3762

$72.13

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3763

$72.13

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3764

$72.13

27012

HOOK

27012-3818

$7.75

27045

SWITCH-ASSY,MAIN

27045-3716

$339.58

92002

BOLT,6X16

92002-3728

$4.69

92009

SCREW,5X16

92009-3868

$1.54

92015

NUT

92015-3848

$5.52

92022

WASHER,8.2X18X1.5

92022-3743

$4.22

92039

RIVET

92039-1283

$2.80

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,WATER MUFFLER

92072-3781

$14.36

92072B

BAND,L=99

92072-3871

$2.26

92160

DAMPER

92160-3929

$31.19

92200

WASHER

92200-3736

$3.32

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,6MM

411S0600

$2.06
