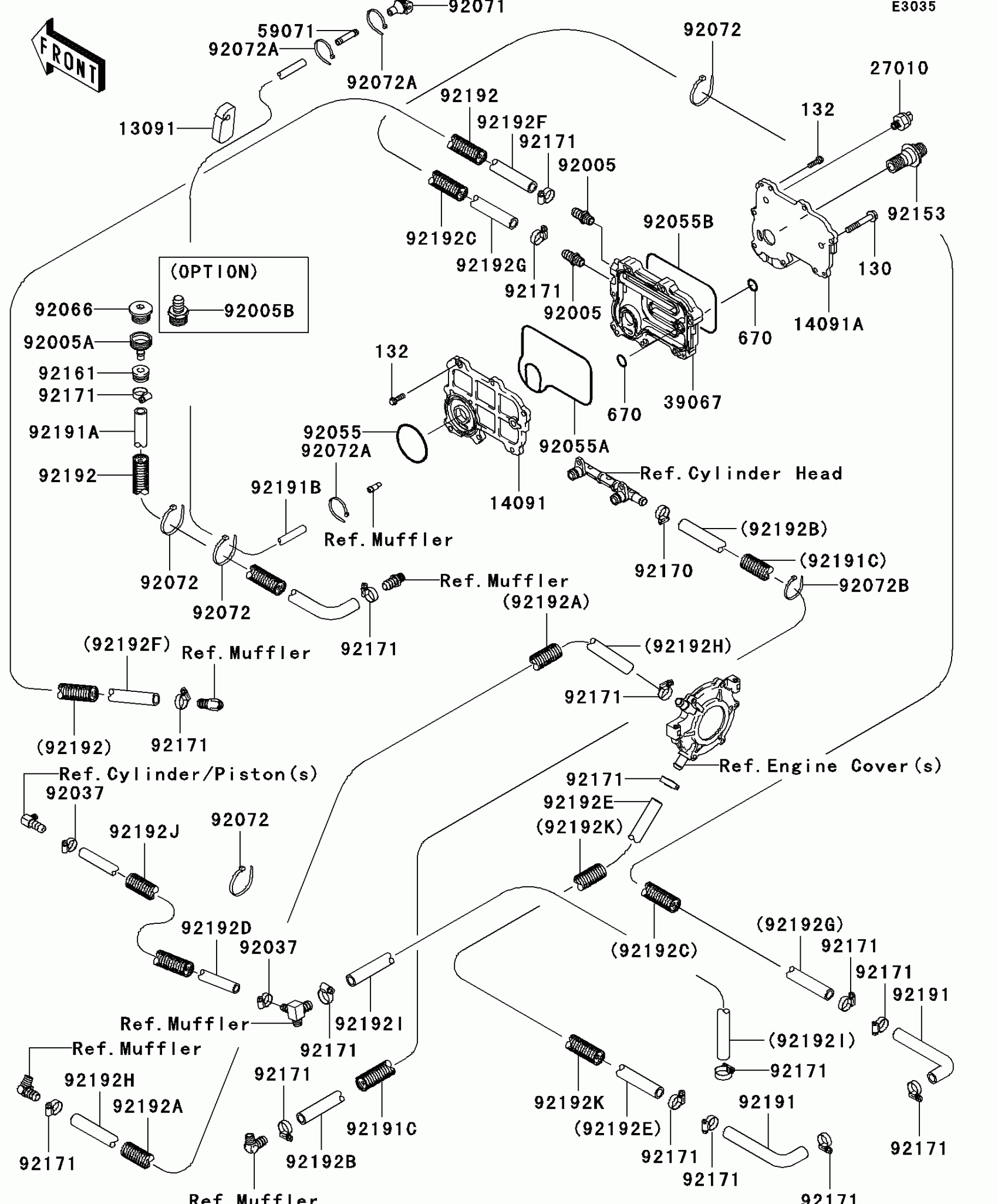

Kawasaki STX-12F Cooling Diagram
#
13091
HOLDER
13091-3712
$4.65
14091
COVER,INSIDE
14091-3755
$85.68
14091A
COVER,OUTSIDE
14091-3756
$85.68
27010
SWITCH,OIL PRESSURE
27010-3779
$67.73
39067
COOLER-OIL
39067-3704
$259.71
59071
JOINT
59071-3764
$7.64
92005
FITTING
92005-3714
$18.72
92005A
FITTING,FLUSH
92005-3744
$16.50
92005B
FITTING,FLUSH
92005-3748
$9.68
92037
CLAMP
92037-3726
$3.98
92055
RING-O,58X3
92055-3767
$6.18
92055A
RING-O
92055-3770
$21.99
92055B
RING-O
92055-3772
$13.06
92066
PLUG,FLUSH
92066-3784
Unavailable
92071
GROMMET
92071-3815
$5.46
92072
BAND,L=188
92072-1239
$1.73
92072A
BAND,L=99
92072-3871
$2.26
92072B
BAND,L=152
92072-3874
$4.18
92153
BOLT,OIL COOLER
92153-3713
$27.52
92161
DAMPER
92161-1331
$3.26
92170
CLAMP
92170-3747
$13.67
92171
CLAMP
92171-3714
$9.49
92191
TUBE,PUMP-HULL
92191-3785
$25.97
92191A
TUBE,CHAMBER-TAIL PIPE
92191-3850
$73.55
92191B
TUBE,7X12X1590
92191-3874
Unavailable
92191C
TUBE,CORRUGATED,19.5X23.8X500
92191-3884
$3.89
92192
TUBE,CORRUGATED,19.5X23.8X900
92192-3711
$5.42
92192A
TUBE,CORRUGATED,19.5X23.8X380
92192-3714
$2.67
92192B
TUBE,12X18X630
92192-3716
$55.90
92192C
TUBE,CORRUGATED,19.5X23.8X1400
92192-3732
$7.80
92192D
TUBE,9X15X450
92192-3738
$46.85
92192E
TUBE,GENERATOR-HULL
92192-3739
$54.68
92192F
TUBE,12X18X1000
92192-3740
$26.47
92192G
TUBE,12X18X1520
92192-3741
$35.29
92192H
TUBE,12X18X480
92192-3742
$13.28
92192I
TUBE,WATER MUFFLER-HULL
92192-3746
$52.96
92192J
TUBE,PROTECTER,L=350
92192-3747
$2.92
92192K
TUBE,CORRUGATED,L=600M
92192-3751
$3.82
130
BOLT-FLANGED,8X50
130Y0850
$4.37
132
BOLT-FLANGED-SMALL,6X20
132Y0620
$3.84
670
O RING,14MM
670D2014
$5.52
