Description

Price

13325

BUSHING-ASSY,WHITE

13325-3704

$9.98

39027

BUMPER-FRONT,VIOLET

39027-3725-RE

Unavailable

39028

BUMPER-REAR,VIOLET

39028-3728-RE

Unavailable

53004

MAT,REAR BUMPER,VIOLET

53004-3745-RE

Unavailable

53004A

MAT,DECK,CNT,LH,VIOLET

53004-3759-RE

$74.07

53004B

MAT,DECK,CNT,RH,VIOLET

53004-3760-RE

Unavailable

53004C

MAT,DECK,FR,LH,VIOLET

53004-3761-RE

Unavailable

53004D

MAT,DECK,FR,RH,VIOLET

53004-3762-RE

Unavailable

53004E

MAT,DECK,RR,RH,VIOLET

53004-3763-RE

$2.55

53004F

MAT,DECK,RR,LH,VIOLET

53004-3764-RE

$2.55

59201B

BUMPER,CORNER,LH,VIOLET

59201-3751-RE

Unavailable

59201C

BUMPER,CORNER,RH,VIOLET

59201-3752-RE

Unavailable

59201D

BUMPER,SIDE,J.S.VIOLET

59201-3760-RE

Unavailable

59504A

INSERT-BOAT FENDER,J.S.VIOLET

59504-3714-RE

Unavailable

92015

NUT,CAP,5MM

92015-3802

$4.99

92039

RIVET

92039-3747

$1.70

92200

WASHER,5.9X16X1.5

92200-3714

$2.14

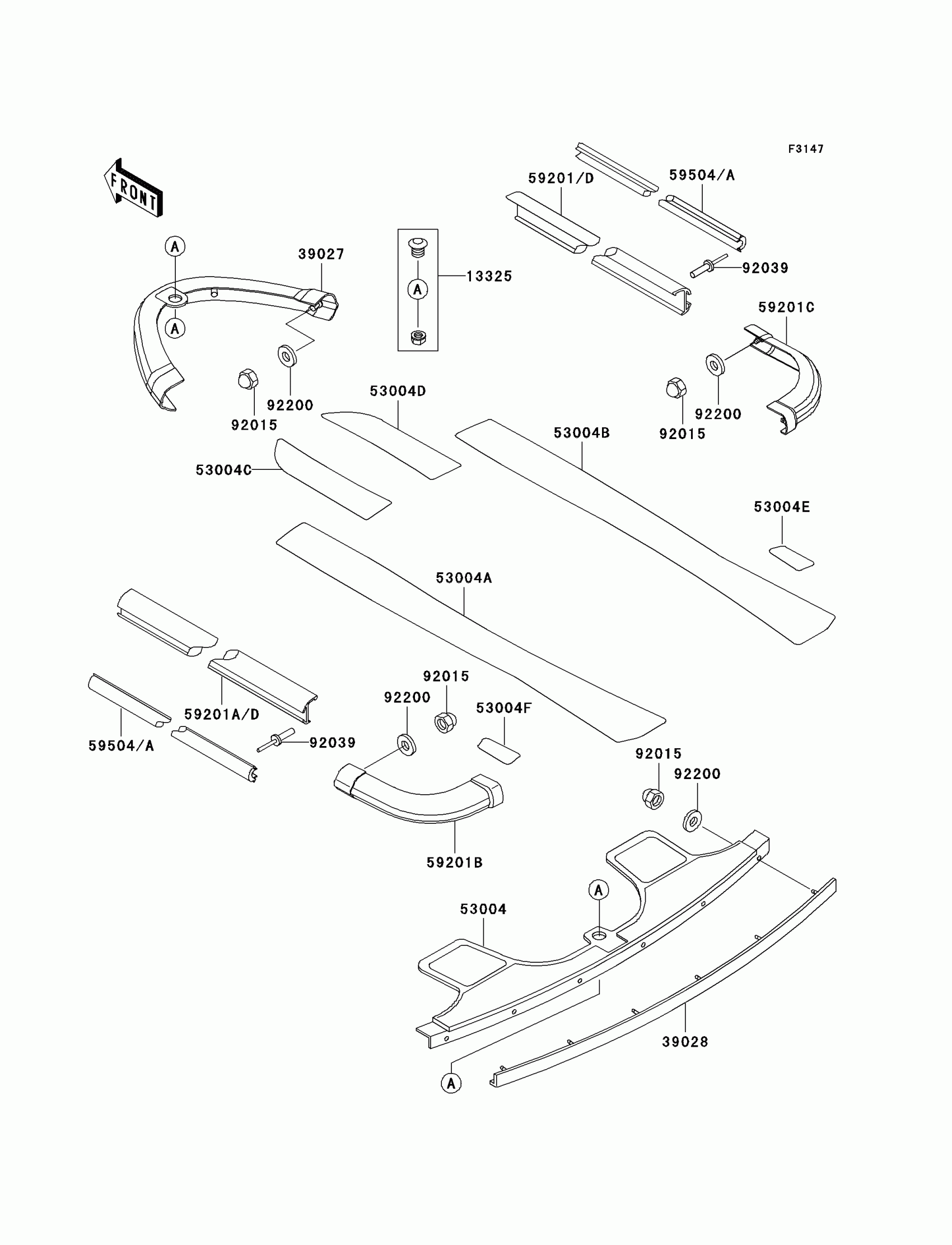

Kawasaki STS Pads Diagram

BUSHING-ASSY,WHITE

BUMPER-FRONT,VIOLET

BUMPER-REAR,VIOLET

MAT,REAR BUMPER,VIOLET

MAT,DECK,CNT,LH,VIOLET

MAT,DECK,CNT,RH,VIOLET

MAT,DECK,FR,LH,VIOLET

MAT,DECK,FR,RH,VIOLET

MAT,DECK,RR,RH,VIOLET

MAT,DECK,RR,LH,VIOLET

BUMPER,CORNER,LH,VIOLET

BUMPER,CORNER,RH,VIOLET

BUMPER,SIDE,J.S.VIOLET

INSERT-BOAT FENDER,J.S.VIOLET

NUT,CAP,5MM

RIVET

WASHER,5.9X16X1.5
