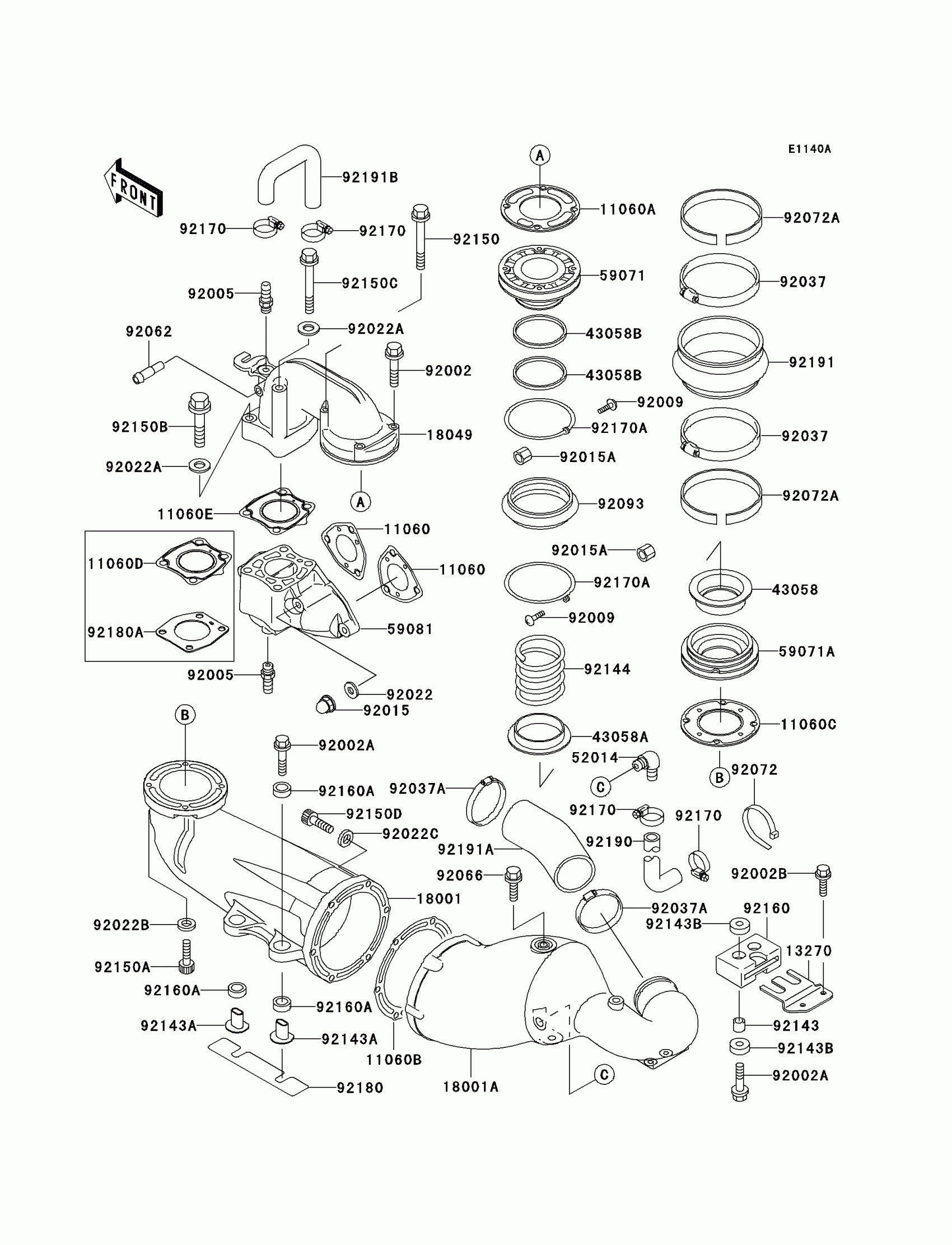

Kawasaki STS Muffler(s)(JT750-B2/B3) Diagram

#

Description
Price

11060

GASKET,EXHAUST MANIFOLD

11060-3759

$16.53

11060A

GASKET,EXHAUST-JOINT

11060-3763

$37.61

11060B

GASKET,MUFFLER

11060-3766

Unavailable

11060C

GASKET,JOINT-MUFFLER

11060-3770

$32.12

11060D

GASKET,EXHAUST-MANIFOLD

11060-3771

Unavailable

11060E

GASKET,EXHAUST-MANIFOLD

11060-3771

$38.46

13270

PLATE

13270-3816

Unavailable

18001

MUFFLER,FR

18001-3760

$269.90

18001A

MUFFLER,RR

18001-3770

Unavailable

18049

PIPE-EXHAUST

18049-3756

Unavailable

43058

RING

43058-3710

Unavailable

43058A

RING

43058-3711

Unavailable

43058B

RING

43058-3712

Unavailable

52014

ELBOW

52014-3711

$30.12

59071

JOINT

59071-3745

Unavailable

59071A

JOINT

59071-3746

Unavailable

59081

MANIFOLD-EXHAUST

59081-3718

Unavailable

92002

BOLT,6X35

92002-3715

$6.61

92002A

BOLT,6X40

92002-3716

$5.52

92002B

BOLT,6X16

92002-3728

$4.69

92005

FITTING,HOSE

92005-3712

$10.88

92009

SCREW,3X14

92009-3796

$3.32

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,3MM

92015-3825

$5.23

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,10.2X20X1.5

92022-3742

$4.18

92022B

WASHER,6MM

92022-3747

$1.84

92022C

WASHER

92022-562

$2.41

92037

CLAMP

92037-3706

$10.67

92037A

CLAMP

92037-3738

$6.89

92062

NOZZLE

92062-3705

$8.44

92066

PLUG,CYLINDER HEAD

92066-3001

Unavailable

92072

BAND,L=292.1

92072-3509

Unavailable

92072A

BAND

92072-3793

Unavailable

92093

SEAL

92093-3744

Unavailable

92143

COLLAR,7.5X10.5X9

92143-3714

Unavailable

92143A

COLLAR

92143-3759

Unavailable

92143B

COLLAR

92143-3760

Unavailable

92144

SPRING

92144-3751

Unavailable

92150

BOLT,6X80

92150-3761

$9.18

92150A

BOLT,SOCKET,6X18

92150-3775

$4.69

92150B

BOLT,10X50

92150-3819

$13.08

92150C

BOLT,10X145

92150-3820

$33.53

92150D

BOLT,SOCKET,8X30

92150-3851

Unavailable

92160

DAMPER,RR

92160-3774

Unavailable

92160A

DAMPER

92160-3879

Unavailable

92170

CLAMP

92170-3718

$13.67

92170A

CLAMP

92170-3748

$16.08

92180

SHIM

92180-3703

Unavailable

92180A

SHIM

92180-3704

Unavailable

92190

TUBE,MANIFOLD-HULL

92190-3953

$43.37

92191

TUBE

92191-3733

Unavailable

92191A

TUBE,CHAMBER-MUFFLER

92191-3756

Unavailable

92191B

TUBE,HEAD-EXHAUST

92191-3766

$11.83
