Description

Price

150

BOLT-WS,6X14

150R0614

$5.96

13091

HOLDER,BAND

13091-3764

$5.17

13270

PLATE,GROMMET

13270-3737

Unavailable

25008

BRACKET-METER,TACHO&TRIM

25008-3707

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-3702

$403.09

27010

SWITCH,FUEL LEVEL

27010-3727

$267.52

27010B

SWITCH,OIL LEVEL

27010-3748

Unavailable

28011

METER,FUEL

28011-3702

Unavailable

28011B

METER,TRIM

28011-3717

Unavailable

92009

SCREW,6X18

92009-3805

$4.71

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3009

$3.70

92071

GROMMET

92071-3795

Unavailable

92071A

GROMMET

92071-3797

$21.55

92072

BAND,L=201

92072-3778

$1.84

92160

DAMPER,TACHOMETER

92160-3829

Unavailable

92160A

DAMPER,TRIM METER

92160-3830

Unavailable

92170

CLAMP

92170-3718

$13.67

92170A

CLAMP

92170-3734

$15.26

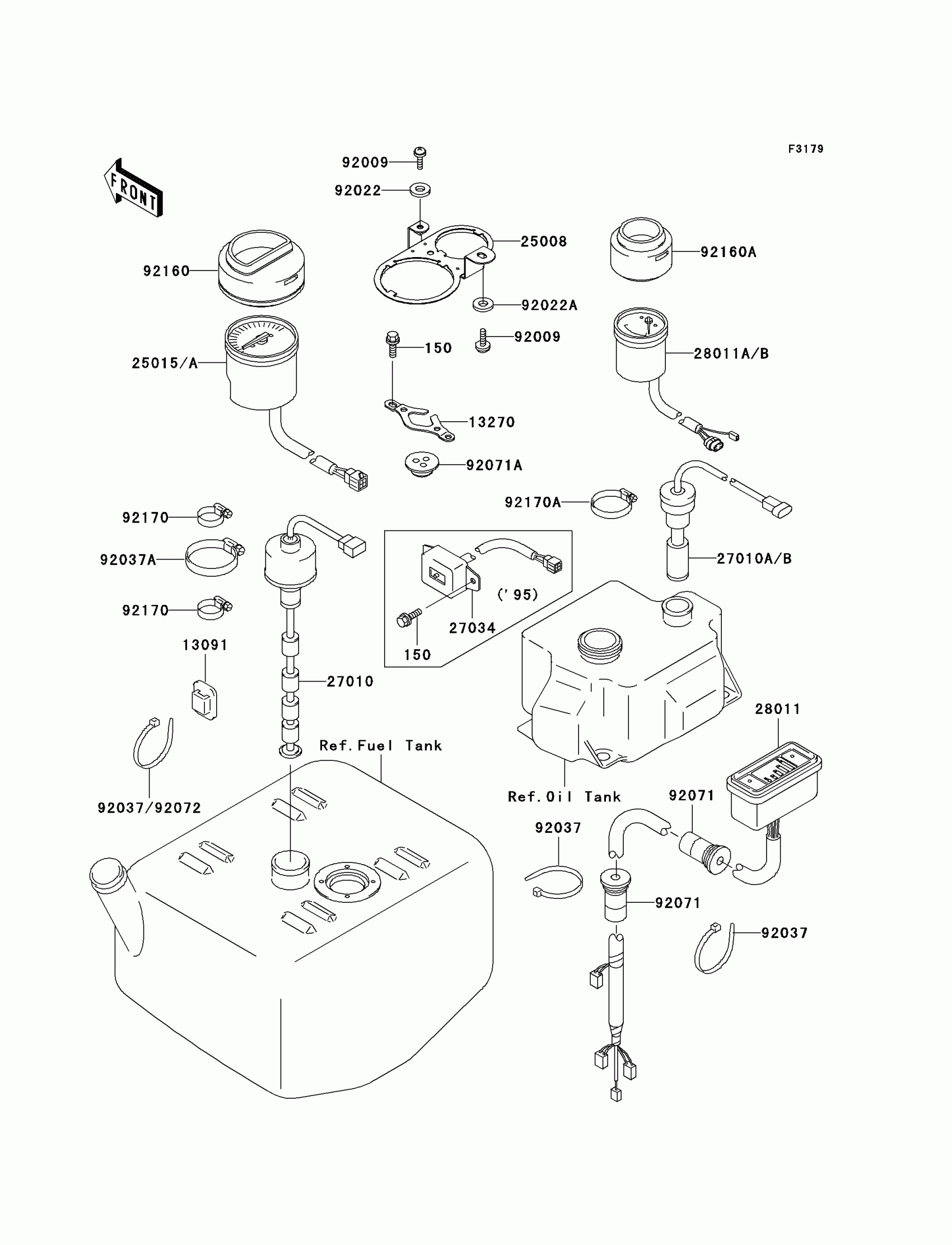

Kawasaki STS Meters Diagram

BOLT-WS,6X14

HOLDER,BAND

PLATE,GROMMET

BRACKET-METER,TACHO&TRIM

TACHOMETER,X1000R/MIN

SWITCH,FUEL LEVEL

SWITCH,OIL LEVEL

METER,FUEL

METER,TRIM

SCREW,6X18

WASHER,6.5X16X1

WASHER,6.5X20X1.5

CLAMP

CLAMP

GROMMET

GROMMET

BAND,L=201

DAMPER,TACHOMETER

DAMPER,TRIM METER

CLAMP

CLAMP
