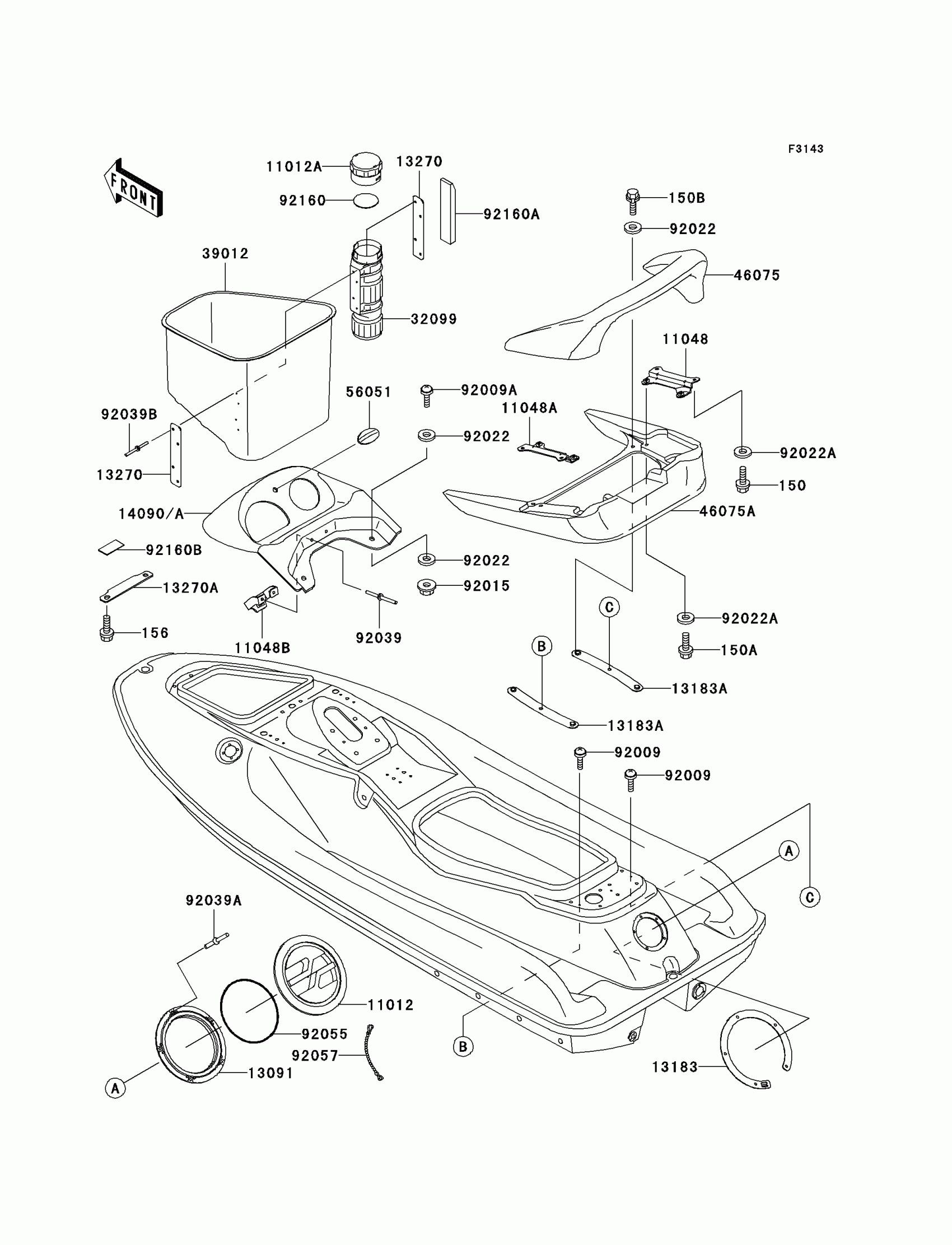

Kawasaki STS Hull Fittings Diagram
#
Description
Price
150
BOLT-WS,6X12
150R0612
$3.35
150A
BOLT-WS,6X16
150R0616
$3.65
150B
BOLT-WS,6X22
150R0622
$4.67
156
BOLT-WP,6X12
156R0612
$3.90
11012
CAP,STORAGE,J.WHITE
11012-3758-8U
$79.77
11012A
CAP,FIRE EXTINGUISHER
11012-3766
$10.30
11048
BRACKET,TAIL GRIP,RH
11048-3730
Unavailable
11048A
BRACKET,TAIL GRIP,LH
11048-3731
Unavailable
11048B
BRACKET,METER COVER
11048-3741
Unavailable
13091
HOLDER,STORAGE,J.WHITE
13091-3766-8U
$70.82
13183
PLATE,STORAGE
13183-3804
Unavailable
13183A
PLATE,TAIL GRIP
13183-3805
Unavailable
13270
PLATE,FIRE EXTINGUISHER
13270-3729
Unavailable
13270A
PLATE
13270-3742
Unavailable
14090
COVER,METER,J.S.VIOLET
14090-3742-23
Unavailable
32099
CASE,FIRE EXTINGUISHER
32099-3769
$19.37
39012
CASE-STORAGE
39012-3711
$51.97
46075
GRIP,TAIL,UPP,VIOLET
46075-3731-RE
$278.58
46075A
GRIP,TAIL,LWR,VIOLET
46075-3732-RE
Unavailable
56051
MARK,METER PANEL
56051-3701
Unavailable
92009
SCREW,5X16
92009-3789
$2.97
92009A
SCREW,6X18
92009-3805
$4.71
92015
NUT,6MM
92015-3767
$4.69
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92022A
WASHER,6.2X20X2
92022-3714
$4.18
92039
RIVET,4MM
92039-3703
$4.69
92039A
RIVET
92039-3714
$0.95
92039B
RIVET
92039-3755
$6.57
92055
RING-O,ID=131.6MM
92055-3732
$11.88
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92160
DAMPER
92160-3814
$7.91
92160A
DAMPER
92160-3821
$8.86
92160B
DAMPER,HANDLE COVER
92160-3825
Unavailable
