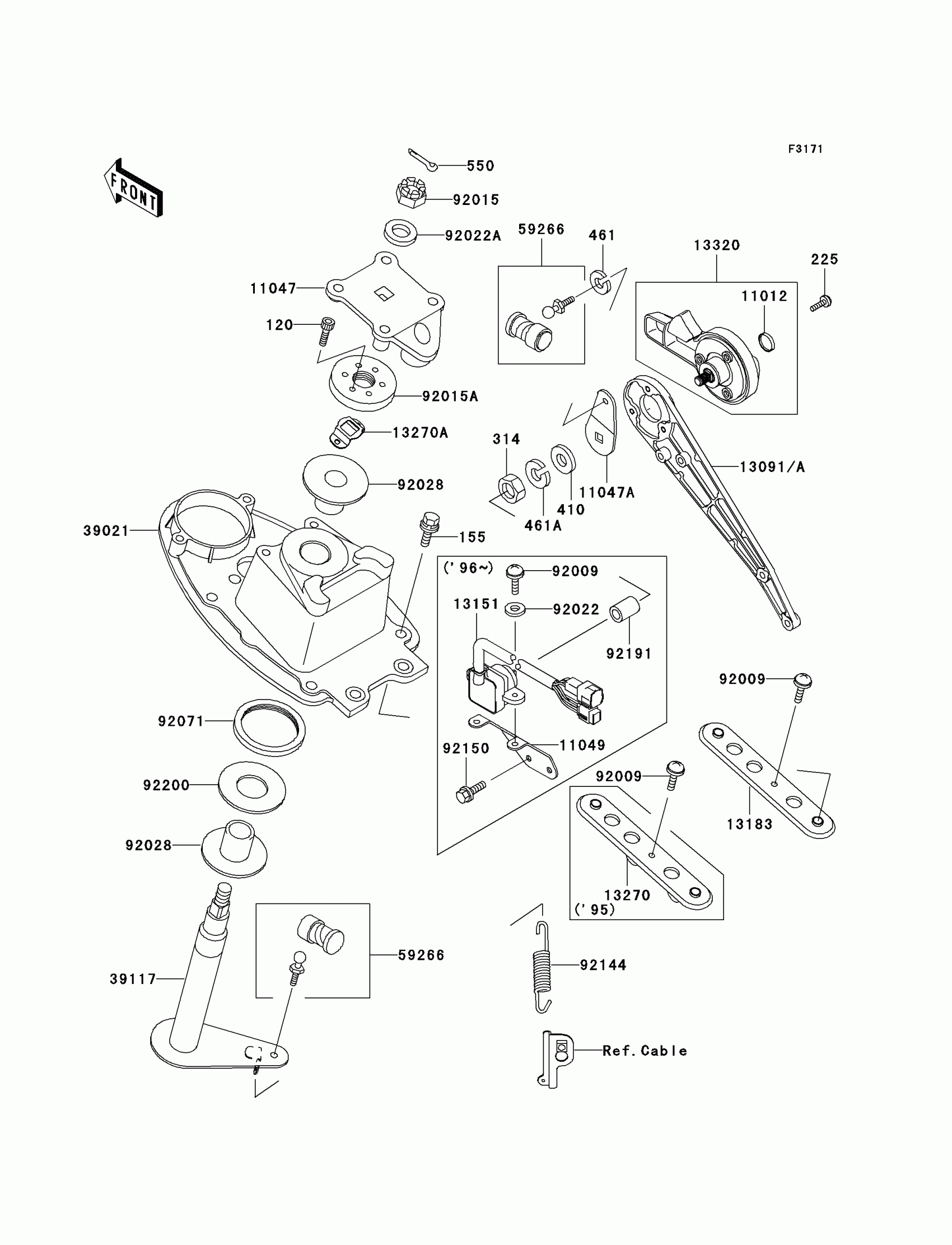

Kawasaki STS Handle Pole Diagram
#
Description
Price
120
BOLT-SOCKET,5X10
120R0510
$3.94
155
BOLT-WSP-SMALL,8X30
155R0830
$6.57
225
SCREW-PAN-WSP-CROS,6X20
225R0620
$3.13
314
NUT-HEX-FINE,10MM
314R1000
$2.02
410
W-PLAIN-S,10MM
410S1000
$3.12
461
WASHER-SPRING,6MM
461S0600
$1.07
461A
WASHER-SPRING,10MM
461S1000
$1.03
550
PIN-COTTER,3X35
550S3035
$4.22
11012
CAP,REVERSE LEVER
11012-3783
Unavailable
11047
BRACKET,HANDLE HOLDER
11047-3759
$107.88
11047A
BRACKET,STEERING LEVER
11047-3790
$28.64
11049
BRACKET
11049-3725
Unavailable
13091A
HOLDER,REVERSE
13091-3803
Unavailable
13151
SWITCH-COMP,REVERSE
13151-3721
Unavailable
13183
PLATE,HANDLE POLE BRACKET
13183-3806
Unavailable
13270A
PLATE
13270-3780
$7.98
13320
LEVER-ASSY,REVERSE
13320-3708
Unavailable
39021
BRACKET-HANDLE POLE
39021-3704
Unavailable
39117
SHAFT-STRG
39117-3706
Unavailable
59266
JOINT-BALL
59266-3707
$66.16
92009
SCREW,5X16
92009-3789
$2.97
92015
NUT,CASTLE,14MM
92015-3805
$35.50
92015A
NUT
92015-3852
$109.82
92022
WASHER,6.2X20X2
92022-3714
$4.18
92022A
WASHER,15X34X2.0
92022-3738
$6.57
92028
BUSHING,STEERING
92028-3748
$25.59
92071
GROMMET
92071-3792
$9.34
92144
SPRING
92144-3737
$20.14
92150
BOLT,6X18
92150-3729
$4.69
92191
TUBE,6X10X11
92191-3764
Unavailable
92200
WASHER,32.5X70X2
92200-3718
$16.69
