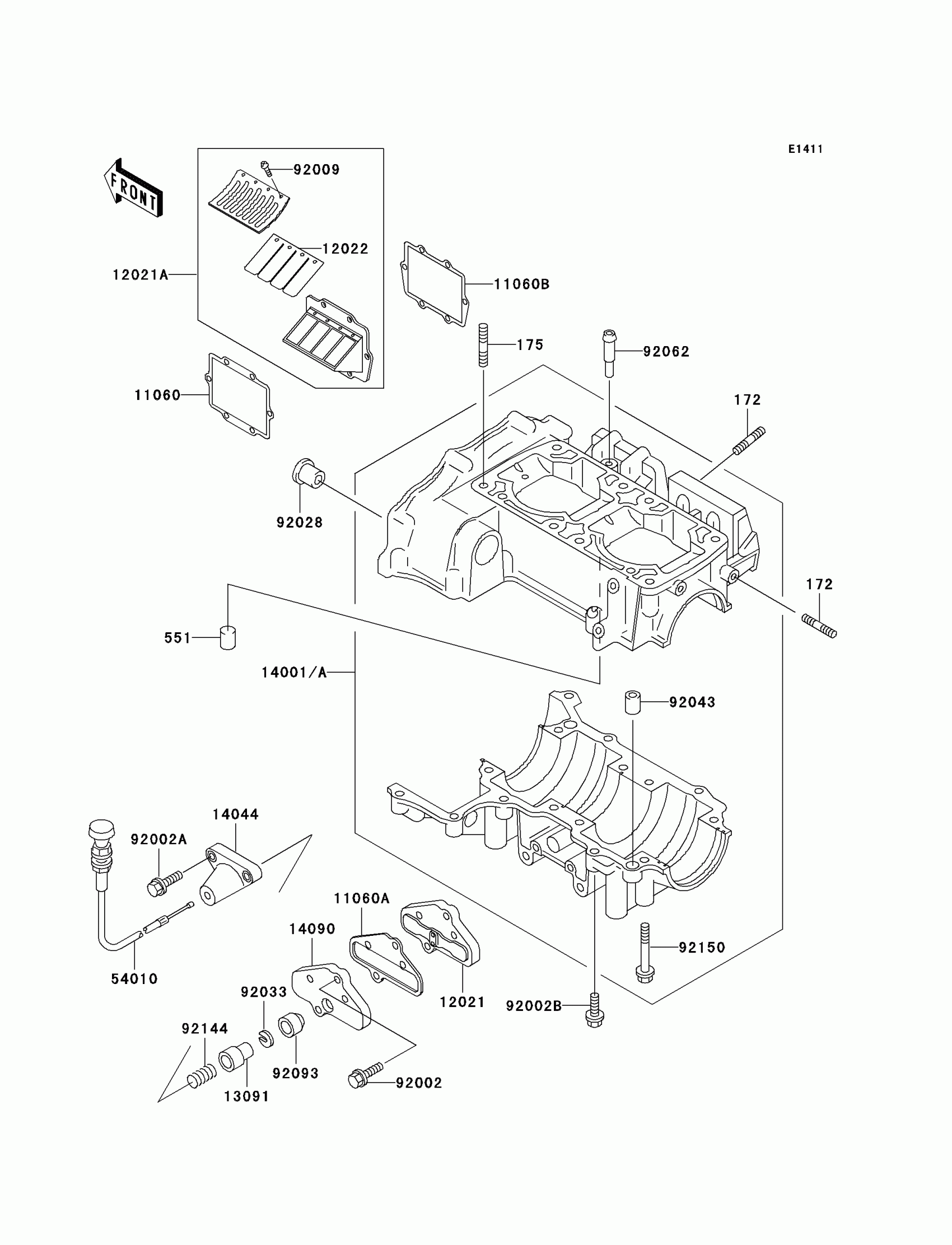

Kawasaki STS Crankcase Diagram
#
Description
Price
172
BOLT-STUD,6X20
172R0620
$7.83
175
BOLT-STUD-FINE,10X35
175R1035
$10.56
551
PIN-DOWEL
551R0612
$4.69
11060
GASKET,REED VALVE
11060-3717
$17.78
11060A
GASKET,CONTROL VALVE
11060-3723
$12.82
11060B
GASKET,REED VALVE
11060-3757
$17.78
12021
VALVE-ASSY-REED,CONTROL
12021-3707
$151.66
12021A
VALVE-ASSY-REED
12021-3708
$150.51
12022
VALVE-REED
12022-3703
$27.37
13091
HOLDER
13091-3707
$4.62
14001A
SET-CRANKCASE
14001-5346
$674.51
14044
HOLDER-CABLE
14044-3702
$21.16
14090
COVER,CONTROL VALVE
14090-3734
Unavailable
54010
CABLE,CONTROL VALVE
54010-3708
$45.53
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X45
92002-3717
$6.05
92002B
BOLT,6X30
92002-3726
$4.69
92009
SCREW,3X6
92009-1371
$4.18
92028
BUSHING
92028-3718
$9.43
92033
RING-SNAP
92033-3708
$3.15
92043
PIN,DOWEL,10X14
92043-1037
$0.74
92062
NOZZLE
92062-3705
$8.44
92093
SEAL
92093-3703
$4.95
92144
SPRING
92144-3701
$4.95
92150
BOLT,8X65
92150-3708
$12.18
