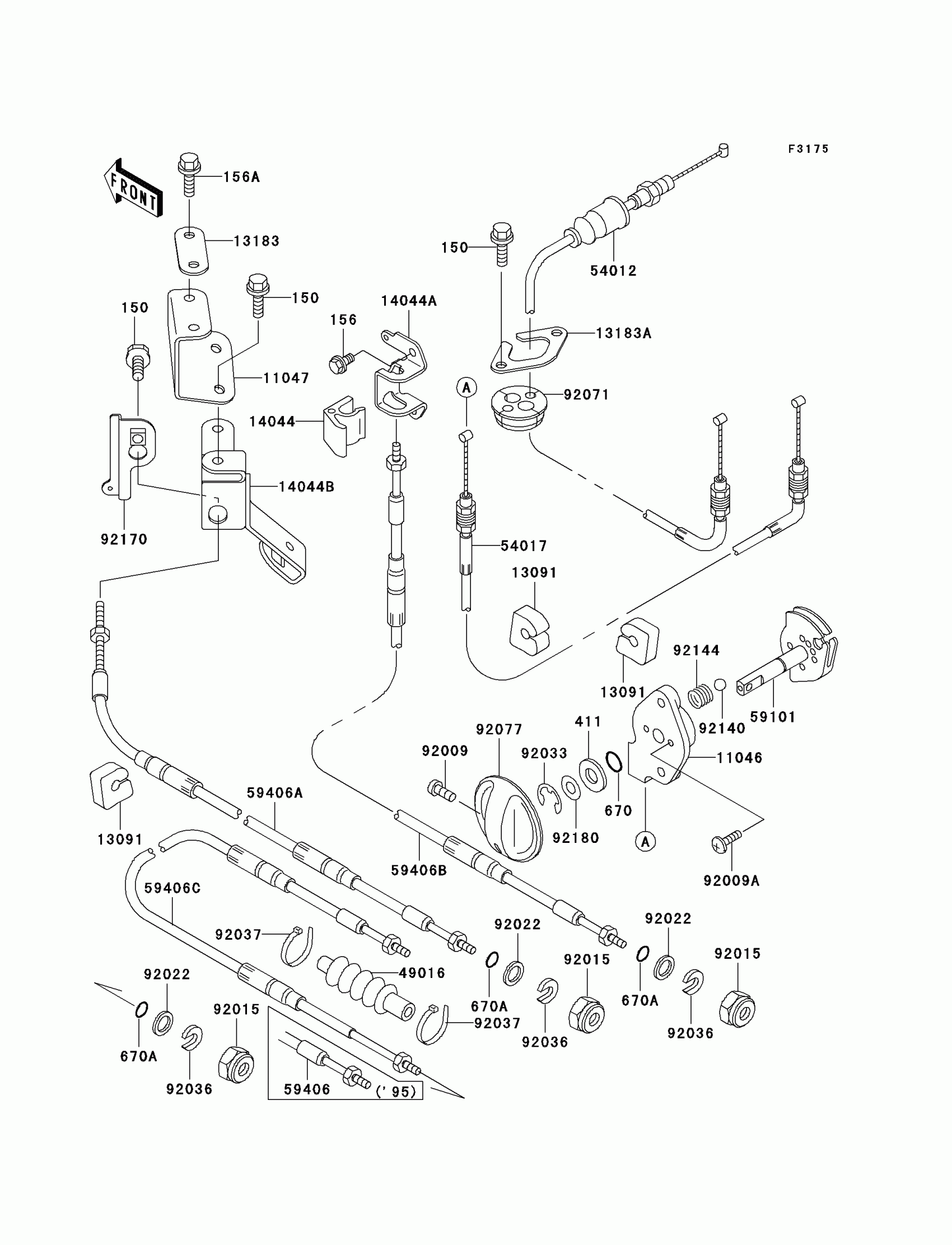

Kawasaki STS Cables Diagram
#
Description
Price
150
BOLT-WS,6X14
150R0614
$5.96
156
BOLT-WP,6X12
156R0612
$3.90
156A
BOLT-WP,6X20
156R0620
$3.65
411
WASHER-PLAIN,8MM
411S0800
$3.09
670
O RING,8MM
670B1508
$1.29
670A
O RING,11MM
670B2011
$1.28
11046
BRACKET,STARTER CABLE
11046-3712
Unavailable
11047
BRACKET,CABLE HOLDER
11047-3795
Unavailable
13091
HOLDER
13091-3712
$4.65
13183
PLATE
13183-3754
Unavailable
13183A
PLATE
13183-3810
Unavailable
14044
HOLDER-CABLE,STEERING
14044-3714
$13.40
14044A
HOLDER-CABLE,STEERING
14044-3717
$25.61
14044B
HOLDER-CABLE
14044-3718
Unavailable
49016
COVER-SEAL,TILT CABLE
49016-3702
$4.10
54012
CABLE-THROTTLE
54012-3744
Unavailable
54017
CABLE-STARTER
54017-3729
Unavailable
59101
REEL,STARTER CABLE
59101-3704
Unavailable
59406A
CABLE-STRG
59406-3736
$167.46
59406B
CABLE-STRG,REVERSE
59406-3745
Unavailable
59406C
CABLE-STRG,TILT
59406-3750
Unavailable
92009
SCREW,4X8
92009-3729
$6.61
92009A
SCREW,5X16
92009-3789
$2.97
92015
NUT,20MM
92015-526
$29.72
92022
WASHER
92022-535
$7.34
92033
RING-SNAP,7MM
92033-3704
$2.94
92036
RING-SNAP
92036-501
Unavailable
92037
CLAMP
92037-1173
$3.49
92071
GROMMET,HARNESS
92071-3790
$9.64
92077
KNOB
92077-3717
$27.14
92140
BALL,3MM
92140-3702
$4.95
92144
SPRING
92144-3712
$2.53
92170
CLAMP,CABLE
92170-3733
Unavailable
92180
SHIM,8.5X18X0.15
92180-3702
Unavailable
