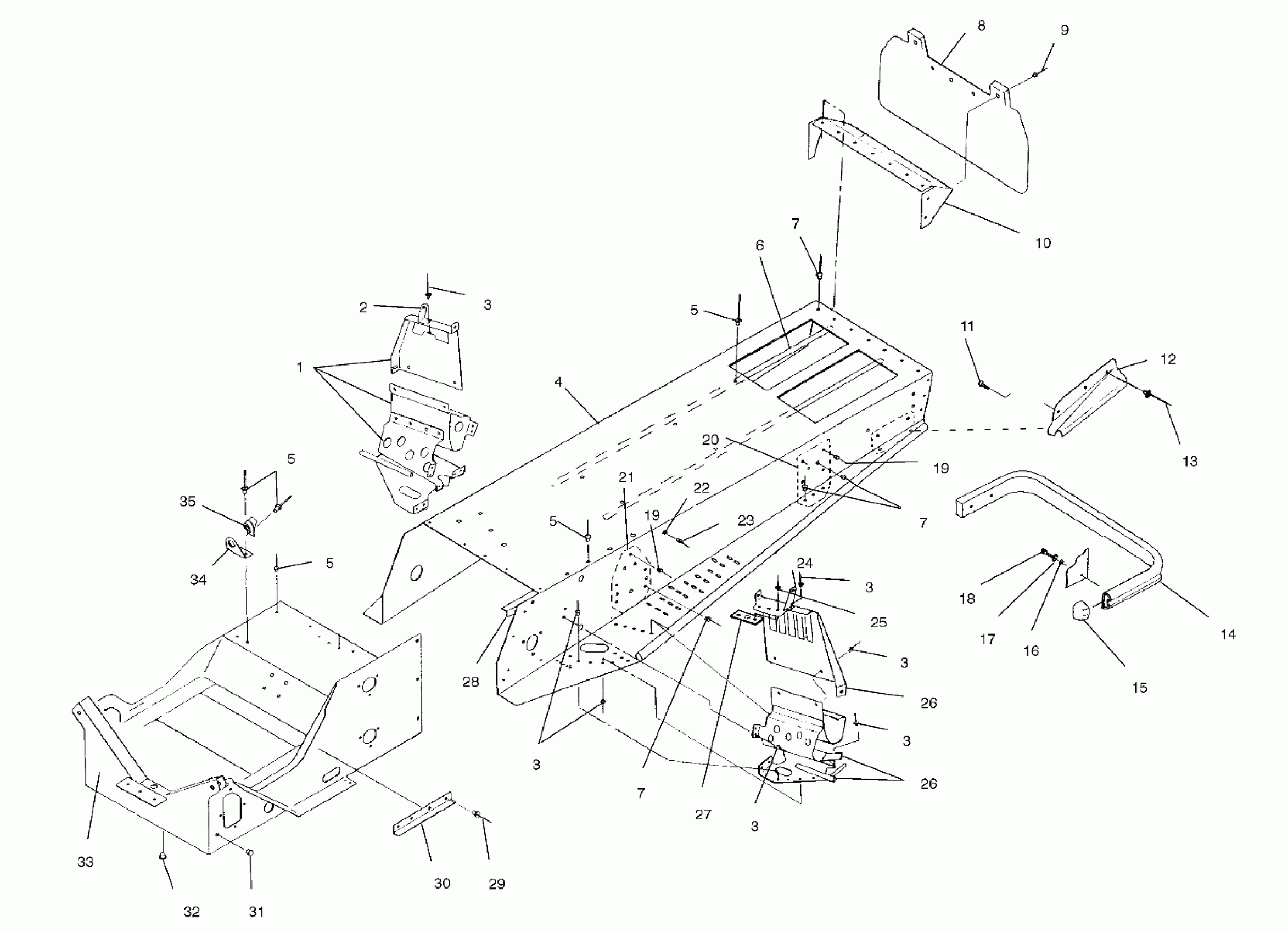

Polaris STORM - 0965782 TUNNEL - E965782 (4931593159A005) Diagram

#

Description
Price

1

FOOTREST, RH

1012281

Unavailable

2

MOUNT,RH,CONSOLE Substituted by 5242493-067

5240864-067

Unavailable

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

TUNNEL,SKS STORM (SKS, RMK)

1012288

Unavailable

4

TUNNEL,(AGR),BLK. Substituted by 1012554 (Storm)

1012306

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

6

STRIP-WEAR

5510130

Unavailable

7

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

7

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

7

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

8

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106 (Storm, SKS)

5432149

Unavailable

8

FLAP,SNOW (RMK)

5432033

Unavailable

9

POP RIVET(50)

7621418

$1.49

10

PANEL,R.CLOSEOFF (SKS, RMK)

5240968-067

$36.31

10

PANEL,TUNNELBACK (Storm)

5241053-067

$308.99

11

SCREW(10)

7512091

$3.99

12

SKIRT,SNOW,LH (SKS, RMK)

5432049-070

$33.91

12

SKIRT,SNOW,RH (SKS, RMK)

5432050-070

$30.16

13

RIVET,(50)

7621342

$1.49

14

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

15

CAP,BUMPER

5431995-070

Unavailable

16

WASHER(10)

7558301

$1.49

17

LOCK WASHER(10)

7552801

$1.59

18

BOLT(10)

7512240

$3.99

19

RIVET,SEMI-TUBE,(50)

7661841

$1.49

19

RIVET,SEMI-TUBE,(50)

7661841

$1.49

20

BRKT,LH,R.SUSP Substituted by 1012563-067 (SKS, RMK)

1012409-067

Unavailable

20

BRKT,RH,R.SUSP Substituted by 1012564-067 (SKS, RMK)

1012410-067

Unavailable

20

PAD,LH,R.SUSP. (Storm)

5241268-067

Unavailable

20

PAD,RH,R.SUSP. (Storm)

5241269-067

Unavailable

21

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

21

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

22

SNAP-MALE(10)

7080227

Unavailable

23

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

24

MOUNT,LH,CONSOLE

5240863-067

Unavailable

25

RIVET(50)

7661850

$1.49

26

FOOTREST, LH

1012280

Unavailable

26

FOOTREST, LH

1012280

Unavailable

27

PLATE,CLUTCH GUARD MT.

1012441

Unavailable

28

BRACE,TUNNEL REINF.

5240992

Unavailable

29

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

30

GUARD,ADAPTER GUIDE

5222857

$12.94

31

PLUG, HOLE(10)

7080512

$2.63

32

PLUG-HOLE

7080398

$4.84

33

BULKHEAD ASM.

1012259-067

$396.83

34

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

35

GUIDE, RECOIL

5431385

$10.51
