SUSPENSION Storm SKS 0965582, Euro Storm SKS E965582, and Storm RMK 0965982 (4931593159B013)

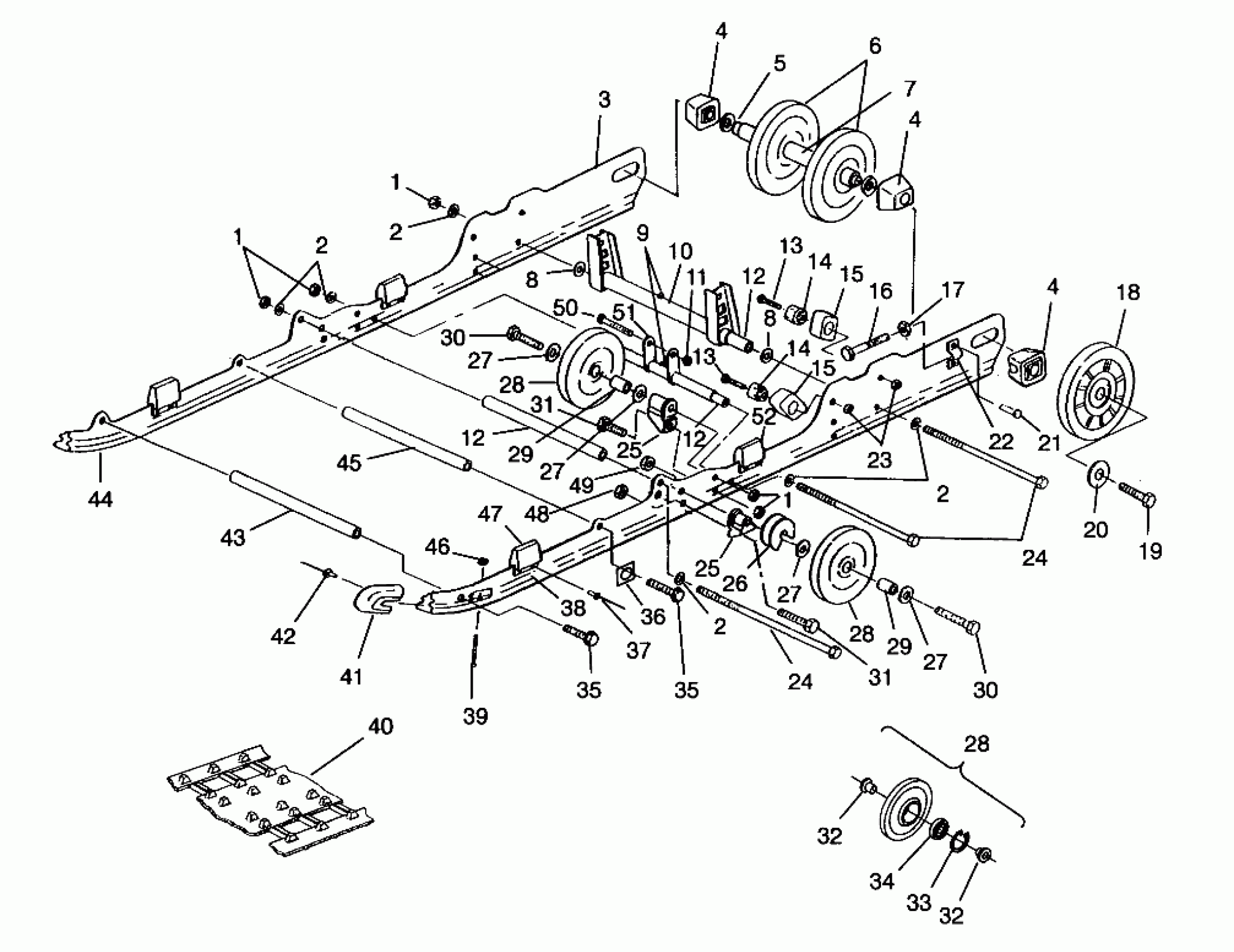

Polaris STORM - 0965782 SUSPENSION Storm SKS 0965582, Euro Storm SKS E965582, and Storm RMK 0965982 (4931593159B013) Diagram
#
1
NUT LOCK(10)
7542411
$3.19
1
NUT LOCK(10)
7542411
$3.19
1
NUT LOCK(10)
7542411
$3.19
2
WASHER(10) Substituted by 7555806
7555720
$0.79
2
WASHER(10) Substituted by 7555806
7555720
$0.79
2
WASHER(10) Substituted by 7555806
7555720
$0.79
2
WASHER(10) Substituted by 7555806
7555720
$0.79
3
RAIL ASM,RH,133" (Incl. 22, 41, 52, 47)
1540947
$339.99
3
RAIL ASM,LH,133" (Incl. 22, 41, 52, 47)
1540946
$269.55
4
SPACER,OUTER IDLER Substituted by 5432434
5431880
Unavailable
4
SPACER,OUTER IDLER Substituted by 5432434
5431880
Unavailable
4
SPACER,OUTER IDLER Substituted by 5432434
5431880
Unavailable
5
SHAFT,IDLER
5020744
$59.99
6
WHEEL,IDLER,BLK(20MM)
1594056-070
$48.56
7
SPACER-IDLER, CENTER
5333283
$19.99
8
WASHER(10)
7555893
$1.49
8
WASHER(10)
7555893
$1.49
9
ZERK,FITTING,THREADED(10)
7080433
$1.49
10
ARM,R.PIVOT
1540981-067
Unavailable
11
NUT LOCK(10)
7542411
$3.19
12
SHAFT
5333404
$24.27
12
SHAFT
5333404
$24.27
12
SHAFT
5333404
$24.27
13
BOLT(10)
7515537
$10.99
13
BOLT(10)
7515537
$10.99
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
15
BUMPER,F.PIVOT ARM
5410925
$12.94
15
BUMPER,F.PIVOT ARM
5410925
$12.94
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
WHEEL,IDLER,RED(20 MM) (Red)
1594056-136
$48.56
19
BOLT(10)
7515526
$1.19
20
WASHER(10) Substituted by 7556130
7571629
Unavailable
21
RIVET,(50)
7621501
$2.39
22
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
23
NUT LOCK(10)
7542403
$3.99
24
SCREW Substituted by 7517353
7515549
Unavailable
24
SCREW Substituted by 7517353
7515549
Unavailable
25
SPACER
5630399
$11.99
25
SPACER
5630399
$11.99
26
ROLLER, SPRING
5431366
$10.51
27
WASHER, FLAT(10)
7555852
$2.39
27
WASHER, FLAT(10)
7555852
$2.39
27
WASHER, FLAT(10)
7555852
$2.39
27
WASHER, FLAT(10)
7555852
$2.39
28
WHEEL, IDLER (Incl. 32-34)
1543018
$56.65
28
WHEEL, IDLER (Incl. 32-34)
1543018
$56.65
28
WHEEL, IDLER (Incl. 32-34)
1543018
$56.65
29
SPACER, WHEEL
5333116
$7.99
29
SPACER, WHEEL
5333116
$7.99
30
BOLT(10)
7512538
$6.39
30
BOLT(10)
7512538
$6.39
31
BOLT(10)
7512404
$3.99
31
BOLT(10)
7512404
$3.99
32
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
32
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
33
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
34
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
35
BOLT
7515542
Unavailable
35
BOLT
7515542
Unavailable
36
BRKT-SHAFT SUPPORT
5241443
Unavailable
37
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
38
REINF., BUMPER
5222629
$13.75
39
BOLT(10)
7515175
$3.99
40
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
40
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
40
TRACK,133"X1",MOD(LIGHTNING) (SKS)
5411060
Unavailable
40
TRACK Substituted by 2871368 (RMK)
5410892
Unavailable
41
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
42
RIVET(50)
7621435
$1.49
43
SHAFT,PIVOT ARM
5020723
$29.99
44
SLIDER,BLACK(2)
5521320
Unavailable
45
SHAFT,PIVOT ARM
5020724
$29.99
46
NUT-LOCK(10)
7542122
$1.49
47
BUMPER,SUSPENSION
5811097
Unavailable
48
NUT-LOCK(10)
7542439
$1.49
49
NUT, NYLOCK(10)
7542525
$4.79
50
BOLT(10)
7515472
$2.39
51
ARM,SHOCK PIVOT
1541001-067
$43.65
52
BUMPER, RAIL
5810554
$7.27
