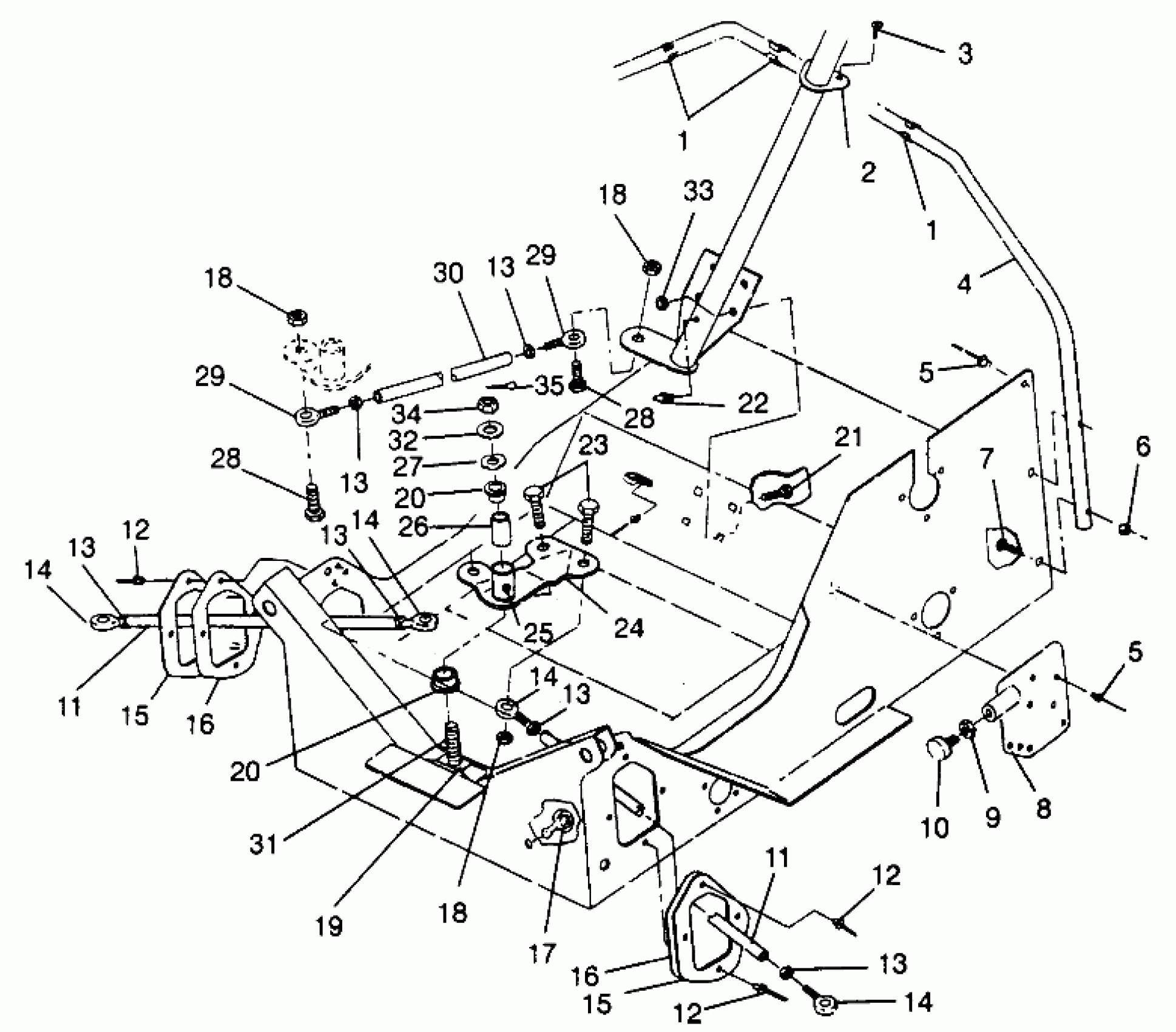

Polaris STORM - 0965782 STEERING ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E965782, Eu (4931593159B007) Diagram

#

Description
Price

1

CLIP(10)

7080278

$2.63

1

CLIP(10)

7080278

$2.63

2

POST,STRG.(AGR.),BLK.

1823172-067

Unavailable

3

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

4

HOOP,STEERING Substituted by 1012856-067

1012282-067

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

6

NUT-LOCK(10)

7542122

$1.49

7

BOLT-CARRIAGE(10)

7512275

$3.99

8

LIMITER,TORQUE

1012277-067

Unavailable

9

NUT, JAM(10)

7542432

$3.99

10

MOUNT,TORQUESTOP,RUBBER

3110034

Unavailable

11

ROD,TIE,BLACK (RMK)

5332713-067

Unavailable

11

ROD,TIE,BLK. (Storm, SKS)

5020715-067

Unavailable

11

ROD,TIE,BLACK (RMK)

5332713-067

Unavailable

11

ROD,TIE,BLK. (Storm, SKS)

5020715-067

Unavailable

12

RIVET(50)

7621340

$0.56

12

RIVET(50)

7621340

$0.56

12

RIVET(50)

7621340

$0.56

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

14

ROD END,LH Substituted by 7060164 (RMK)

7060124

$48.56

14

ROD END RH Substituted by 7060165 (RMK)

7060125

$48.56

14

ROD END, LH Substituted by 7060166 (Storm, SKS)

7060151

$48.56

14

ROD END, RH Substituted by 7060167 (Storm, SKS)

7060152

$48.56

14

ROD END,LH Substituted by 7060164 (RMK)

7060124

$48.56

14

ROD END RH Substituted by 7060165 (RMK)

7060125

$48.56

14

ROD END, LH Substituted by 7060166 (Storm, SKS)

7060151

$48.56

14

ROD END, RH Substituted by 7060167 (Storm, SKS)

7060152

$48.56

14

ROD END,LH Substituted by 7060164 (RMK)

7060124

$48.56

14

ROD END RH Substituted by 7060165 (RMK)

7060125

$48.56

14

ROD END, LH Substituted by 7060166 (Storm, SKS)

7060151

$48.56

14

ROD END, RH Substituted by 7060167 (Storm, SKS)

7060152

$48.56

14

ROD END,LH Substituted by 7060164 (RMK)

7060124

$48.56

14

ROD END RH Substituted by 7060165 (RMK)

7060125

$48.56

14

ROD END, LH Substituted by 7060166 (Storm, SKS)

7060151

$48.56

14

ROD END, RH Substituted by 7060167 (Storm, SKS)

7060152

$48.56

15

PLATE,BOOTSEAL,BLK.

5210904-067

$5.71

15

PLATE,LH,BOOTSEAL,BLK.

5210959-067

Unavailable

15

PLATE,BOOTSEAL,BLK.

5210904-067

$5.71

15

PLATE,LH,BOOTSEAL,BLK.

5210959-067

Unavailable

16

BOOT-TIE ROD

5410328

Unavailable

16

BOOT-TIE ROD

5410328

Unavailable

17

CLIP, PLASTIC(10)

4020139

$4.79

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

19

BLOCK, STEERING

5630375

Unavailable

20

BUSHING

3563907

$3.99

20

BUSHING

3563907

$3.99

21

BOLT(10) Substituted by 7512377

7512394

Unavailable

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

23

BOLT(10)

7515528

$8.79

24

ARM ASM,CTR.STRG. (Incl. 25)

1822252

Unavailable

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

BUSHING

5010340

Unavailable

27

WASHER,WAVE(10)

7555735

$3.99

28

BOLT(10)

7512404

$3.99

28

BOLT(10)

7512404

$3.99

29

ROD END, RH.

7060165

$48.56

29

ROD END, LH.

7060164

$48.56

29

ROD END, RH.

7060165

$48.56

29

ROD END, LH.

7060164

$48.56

30

ROD-DRAG LINK

5332712

Unavailable

31

BOLT(10)

7512682

Unavailable

32

WASHER(10)

7555721

$1.49

33

NUT-5/16-18 NYLOK-Y

7542324

$1.49

34

NUT(10)

7542712

$9.59

35

PIN COTTER(10)

7661203

$1.49
