REAR TORQUE ARM Storm 0965782, Storm SKS 0965582, Euro Storm E965782, Euro (4931593159C004)

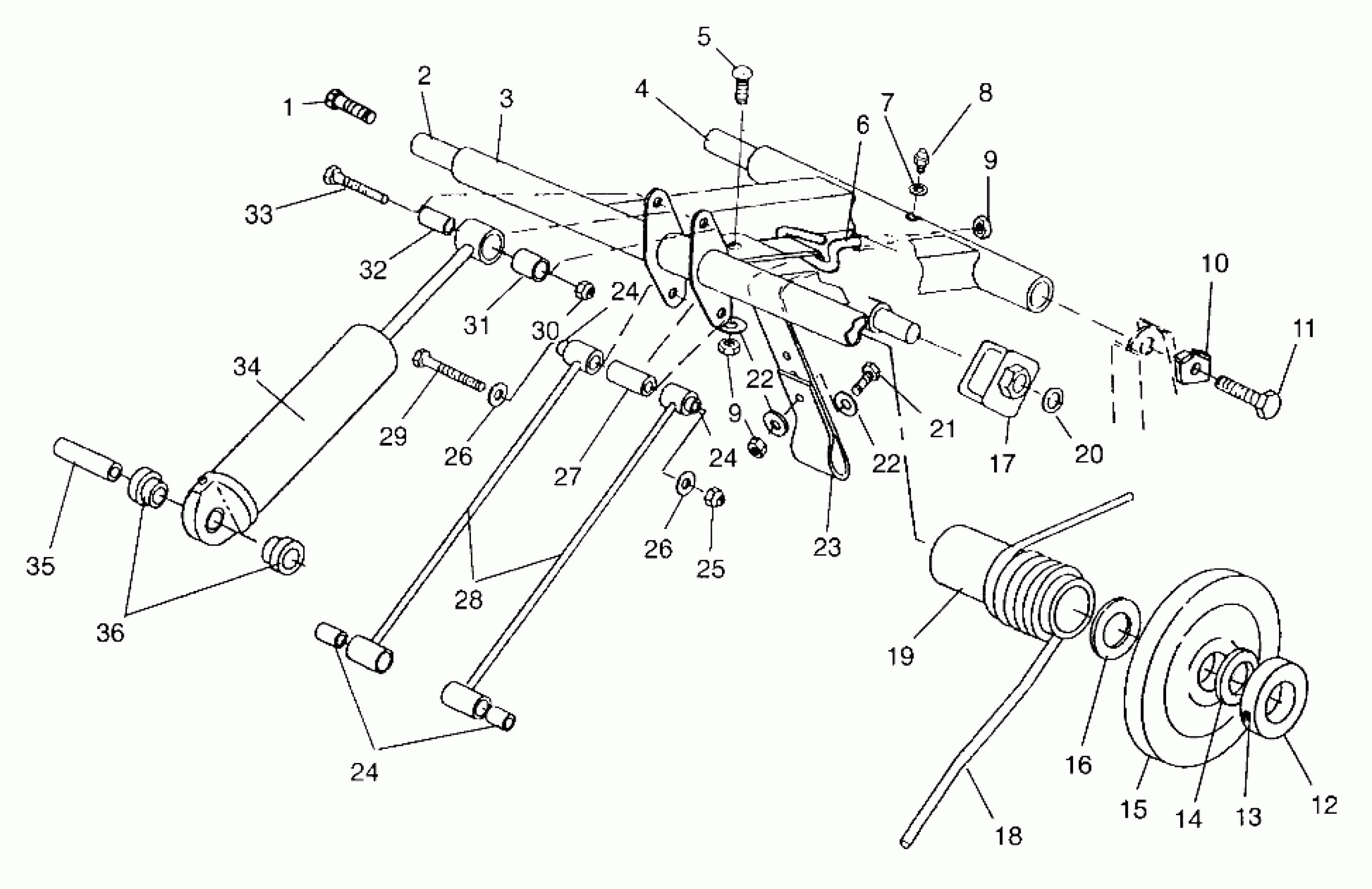

Polaris STORM - 0965782 REAR TORQUE ARM Storm 0965782, Storm SKS 0965582, Euro Storm E965782, Euro (4931593159C004) Diagram
#
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,R.TORQUE,UPPER
5020845
$63.99
3
ARM,R.TORQUE,BLK Substituted by 2200914 (X-10, Blk)
1541024-067
$68.19
4
SHAFT,LOW,RR,TORQUE
5020843
Unavailable
5
BOLT(10) (Storm, RMK)
7512377
$4.79
6
BOLT,EYE (Storm, RMK)
7010050
Unavailable
7
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
WASHER(10)
7558203
$3.19
9
NUT LOCK(10) (Storm, RMK)
7542321
$1.49
9
NUT LOCK(10) (Storm, RMK)
7542321
$1.49
10
LOCK,BOLT,MECHANICAL
5211649
Unavailable
11
BOLT(10)
7515526
$1.19
12
COLLAR-BRG. LOCK
5010155
Unavailable
13
SCREW-SET(10)
7512257
$3.99
14
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
15
Wheel, Carrier
1543023
Unavailable
16
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
17
ROLLER, SPRING ADJ.
5431168
Unavailable
18
SPRING,LH,TORS(.421DIA) (.421) Med.
7041461-067
Unavailable
18
SPRING,RH,TORS(.437/77) (.437) Hvy.
7041466-067
$107.99
18
SPRING,LH,TORS(.437/77) (.437) Hvy.
7041465-067
Unavailable
18
SPRING,RH,TORS(.406DIA) (.406) Std.
7041464-067
Unavailable
18
SPRING,RH,TORS(.421DIA) (.421) Med.
7041462-067
$113.32
18
SPRING,LH,TORS(.406DIA) (.406) Std.
7041463-067
Unavailable
19
SLEEVE,TORSION SPRING
5431923
$6.39
20
CLIP-PUSH ON
7080394
$2.39
21
BOLT(10)
7515307
$3.99
22
WASHER(10)
7555716
$1.59
22
WASHER(10)
7555716
$1.59
23
STRAP,LIMITER (RR, QA) (Storm, RMK)
5411061
Unavailable
23
STRAP-LIMITER,RR,SA (RR, QA) (SKS)
5411062
Unavailable
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
25
NUT LOCK(10)
7542411
$3.19
26
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
27
Spacer
5333420
$11.99
28
ROD,SHOCK,(XTRA 10)133 (SKS, RMK)
1541021-067
Unavailable
28
ROD,SHOCK (Storm)
1541015-067
Unavailable
29
BOLT(10)
7515472
$2.39
30
NUT FLEX-LOC(10)
7542303
$6.39
31
BUSHING
5430537
$3.99
32
BUSHING,R.SHOCK
5333030
Unavailable
33
BOLT(10)
7512329
$3.99
34
SHOCK,GAS,IFP,R.TRACK
7041444
Unavailable
35
Sleeve (See Pg., Ref.)
-------
Unavailable
36
Bushing, "E" (See Pg., Ref.)
-------
Unavailable
