PISTON and CRANKSHAFT Storm 0965782, Storm SKS 0965582, Euro Storm E965782 (4931593159D004)

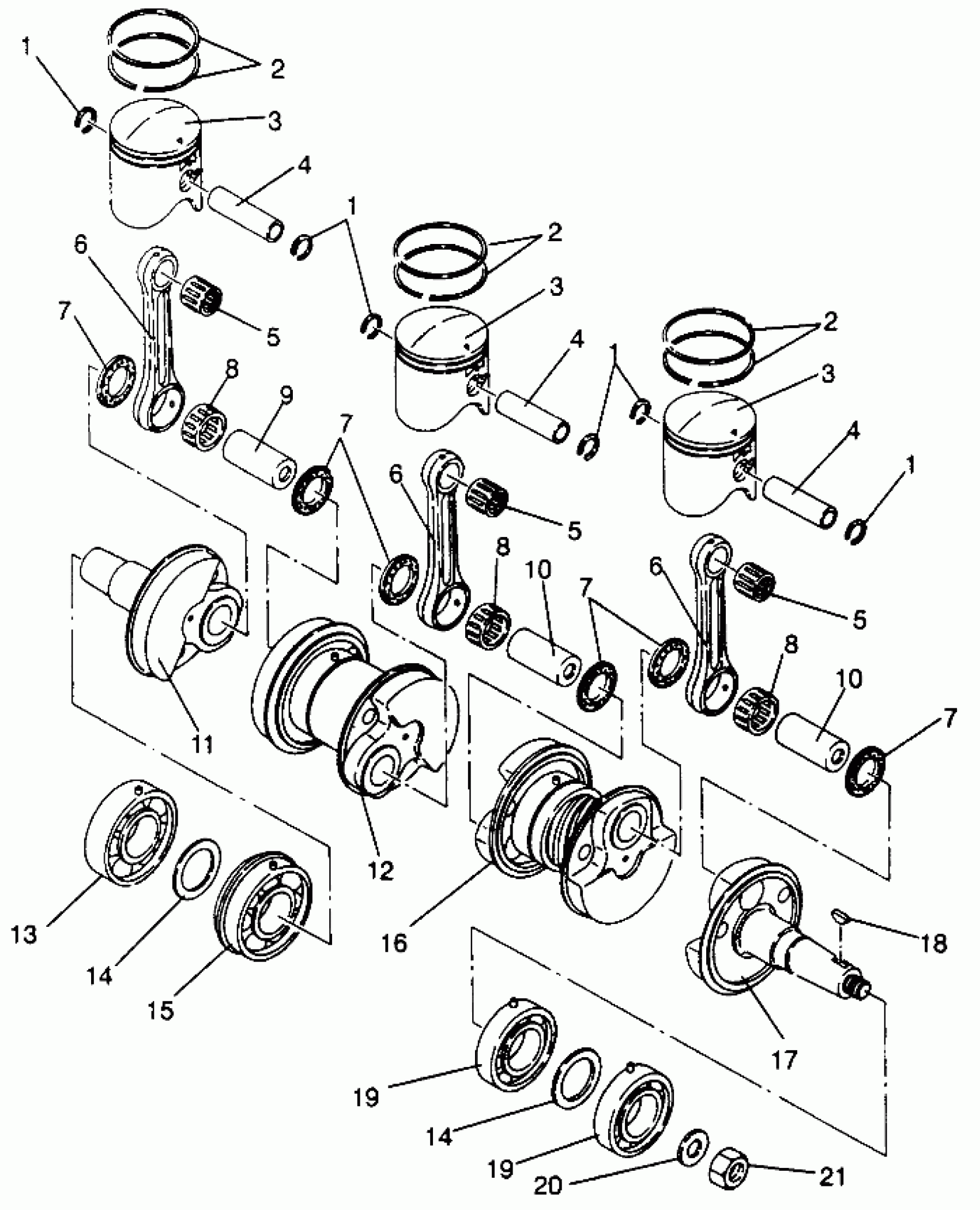

Polaris STORM - 0965782 PISTON and CRANKSHAFT Storm 0965782, Storm SKS 0965582, Euro Storm E965782 (4931593159D004) Diagram
#
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
2
RING, PISTON (Standard)
3085316
Unavailable
2
RING, PISTON (Standard)
3085316
Unavailable
2
RING, PISTON (Standard)
3085316
Unavailable
3
PISTON, STD. (Standard)
3085313
Unavailable
3
PISTON, STD. (Standard)
3085313
Unavailable
3
PISTON, STD. (Standard)
3085313
Unavailable
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
PIN, CRANK
3240085
Unavailable
10
PIN-CRANK 2
3083254
Unavailable
10
PIN-CRANK 2
3083254
Unavailable
11
CRANKSHAFT 3
3084542
Unavailable
12
CRANKSHAFT,PTO SIDE (PTO) (Incl. 9)
3084541
Unavailable
13
BEARING, BALL
3084546
Unavailable
14
SPACER
3240088
$10.39
14
SPACER
3240088
$10.39
15
BEARING, BALL
3084545
Unavailable
16
CRANKSHAFT,MAG.SIDE (Mag) (Incl. 10)
3084540
$354.99
16
CRANKSHAFT,CTR. (Center) (Incl. 6-10, 12)
3085328
$226.99
17
CRANKSHAFT 1
3084538
Unavailable
17
CRANKSHAFT (Incl. 6-17, 19)
3085312
$999.99
18
KEY Substituted by 3081543
3080130
Unavailable
19
BEARING, BALL
3084544
Unavailable
19
BEARING, BALL
3084544
Unavailable
20
Washer
3084457
Unavailable
21
NUT
3083093
$19.99
