OIL TANK / AIR BOX ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E9 (4931593159C013)

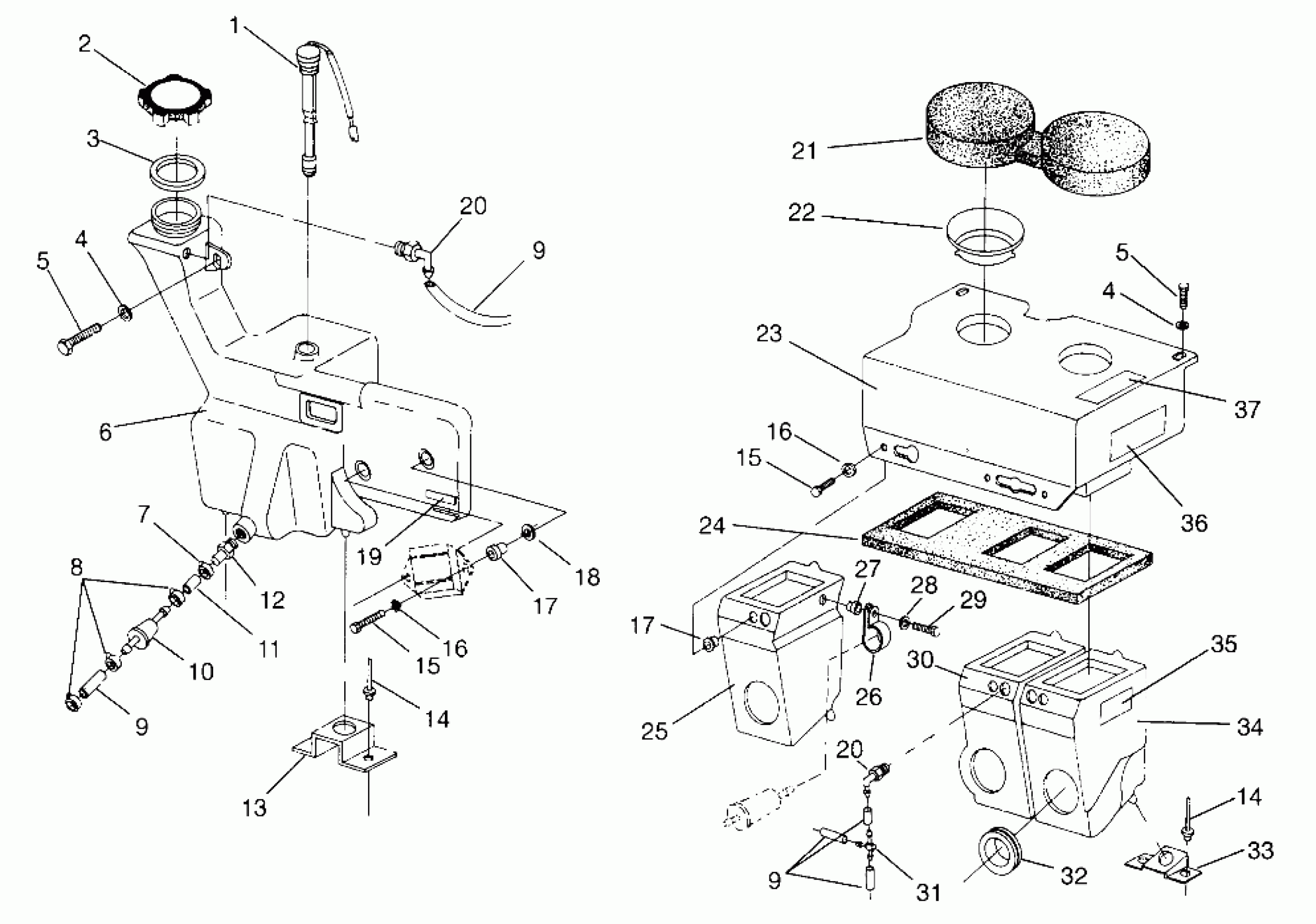

Polaris STORM - 0965782 OIL TANK / AIR BOX ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E9 (4931593159C013) Diagram
#
1
SENSOR,OIL LEVEL
4110134
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER(10)
7555960
$3.99
4
WASHER(10)
7555960
$3.99
5
BOLT(10)
7512276
$4.79
5
BOLT(10)
7512276
$4.79
6
TANK,W/SEND.UNIT HOLE Substituted by 2200874
5432268
Unavailable
7
HOSE CLAMP, RED (Red)
7080003
$1.49
8
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
11
LINE,OIL,FORMED
5410902
Unavailable
12
FITTING,3/8 OUTLET
7052110
Unavailable
13
BRKT,OILTANK,COINED
5241330
$2.15
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
SCREW(10)
7512279
$1.49
15
SCREW(10)
7512279
$1.49
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
NUT-WELL(10)
7541923
$5.59
17
NUT-WELL(10)
7541923
$5.59
18
BUSHING, MACH.(10)
7558707
$4.79
19
DECAL,LOW OIL LEVEL
7074664
Unavailable
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
21
FOAM ASM,INTAKE Substituted by 1253242
1253128
Unavailable
22
INLET,PLENUM
5410834
Unavailable
23
PLENUM,AIRBOX
5431944
Unavailable
24
SEAL,PLENUM
5810946
Unavailable
25
AIRBOX,MAG.
5431969
Unavailable
26
CLAMP,CABLE,(10)
7080535
$1.59
27
NUT-WELL(10)
7541918
Unavailable
28
WASHER, LOCK(10)
7571603
Unavailable
29
SCREW(10)
7511954
$1.19
30
AIRBOX,CTR.
5431970
Unavailable
31
FITTING, TEE,(10)
7052048
$3.99
32
Boot
5410271
Unavailable
33
BRKT,AIR BOX
5240354
Unavailable
34
AIRBOX,PTO.
5431971
Unavailable
35
DECAL, GREASING [No Longer Available]
7073426
$7.27
36
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
37
DECAL,CAUTION,AIRBOX
7075351
Unavailable
